Horizontal fan coil – MBC Marine https://mbc-marine.com Fri, 16 Oct 2026 14:15:08 +0000 en-GB hourly 1 https://mbc-marine.com/wp-content/uploads/2024/08/cropped-cropped-MBC_logo-32x32-1-32x32.png Horizontal fan coil – MBC Marine https://mbc-marine.com 32 32 CFP08 – Horizontal Fan Coil Unit for Chiller Systems https://mbc-marine.com/product/cfp08-horizontal-fan-coil-unit-for-chiller-systems-copy/ Mon, 20 Oct 2025 12:52:34 +0000 https://mbc-marine.com/?post_type=product&p=7465 Capacity (BTU/h): 8 000 BTU/h



Voltage / Frequency
230V / 50-60Hz		 Electrical Heater

1000W
Warranty
2-year		 Evaporator Material
Blue-Fin Coating
Basic package includes: LED Display, FCU Controller, 5m Network cable, Insulation tape,
Unit Dimensions (mm)
H x W x D		 195x580x475
Package Dimensions (mm)
H x W x D		 220x630x500
Air Flow  350 m3/h
UNIT Weight (kg) 14 kg
Shipping Weight (kg) 16,8kg



The post CFP08 – Horizontal Fan Coil Unit for Chiller Systems appeared first on MBC Marine.

]]>

MBC Marine 8K Fan Coil Unit – Efficient Cooling for Compact Cabins

The MBC Marine 8,000 BTU horizontal fan coil unit delivers quiet, reliable climate control for compact cabins on boats, yachts, and catamarans.

Engineered for chiller systems, it comes equipped with an FCU controller, digital display, and an integrated flow control valve for precise and energy-efficient performance.

Built with an AISI 316 stainless steel condensate tray and a corrosion-resistant housing, the 8K horizontal unit is designed to withstand harsh marine conditions.

Its ultra-low-profile horizontal design makes it an ideal solution for installations under ceilings or in floor-level compartments where space is limited.

Whether for new builds or retrofit projects, the MBC Marine 8K horizontal fan coil unit ensures year-round onboard comfort with whisper-quiet operation and minimal maintenance.

More Information

Specifications of The A/C Unit

Unit Parameters
CFPG08
Cooling capacity
Btu/h
8000
Air Flow
m3/h
350
Power source
230V/50-60Hz
Operating Current
A
0,4 A
Input power
W
100 W
Drain Water Connection size
DN20
Chilled Water Flow
L/min
6,5 L/min
Chilled Water Connection Size
3/4”
Width
420
Dimension of Unit
Height
290
Depth
261
Net Weight (kg)
8,5 kg
More parameters

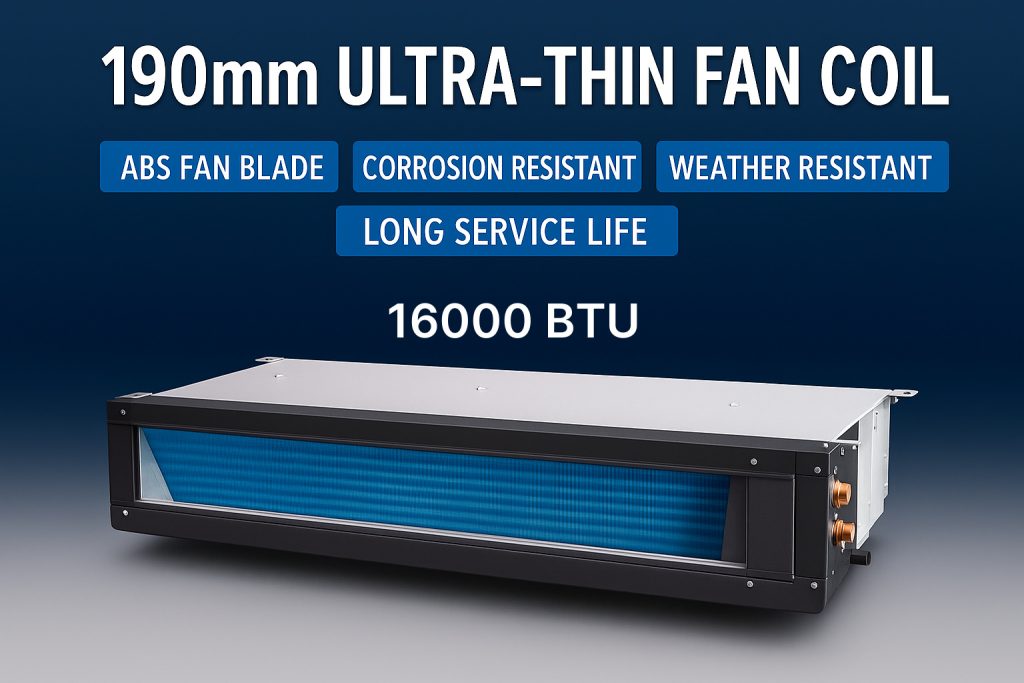

ChatGPT Image 2025. okt. 20. 16 14 51 2

The post CFP08 – Horizontal Fan Coil Unit for Chiller Systems appeared first on MBC Marine.

]]> CFP12 – Horizontal Fan Coil for Chiller Systems https://mbc-marine.com/product/cfpg12-horizontal-fan-coil-fan-coil-unit-for-chiller-systems/ Mon, 20 Oct 2025 08:10:59 +0000 https://mbc-marine.com/?post_type=product&p=7421 Capacity (BTU/h): 12 000 BTU/h



Voltage / Frequency
230V / 50-60Hz		 Electrical Heater
1000W
Warranty
2-year		 Evaporator Material
Blue-Fin Coating
Basic package includes: LED Display, FCU Controller, 5m Network cable, Insulation tape
Unit Dimensions (mm)
W x H x D		 850x195x475
Package Dimensions (mm)
W x H x D		 900x220x550
Air Flow: 630 m3/h
UNIT Weight (kg) 17 kg
Shipping Weight (kg) 19,6kg



The post CFP12 – Horizontal Fan Coil for Chiller Systems appeared first on MBC Marine.

]]>

MBC Marine 12K Fan Coil Unit – Efficient Cooling for Mid-Sized Cabins

The MBC Marine 12,000 BTU horizontal fan coil unit delivers quiet, reliable climate control for mid-sized cabins on boats, yachts, and catamarans.

Engineered for chiller systems, it comes equipped with an FCU controller, digital display, and an integrated flow control valve for precise and energy-efficient performance.


Built with an AISI 316 stainless steel condensate tray and a corrosion-resistant housing, the 12K horizontal unit is designed to withstand harsh marine conditions.

Its ultra-low-profile horizontal design makes it the ideal solution for installations under ceilings or in floor-level compartments where space is limited.


Whether for new builds or retrofit projects, the MBC Marine 12K horizontal fan coil unit ensures year-round onboard comfort with whisper-quiet operation and minimal maintenance.


More Information

Specifications of The A/C Unit

Unit Parameters
CFPG12
Cooling capacity
Btu/h
12000
Air Flow
m3/h
630
Power source
230V/50-60Hz
Operating Current
A
0,8 A
Input power
W
150 W
Drain Water Connection size
DN20
Chilled Water Flow
L/min
11,5 L/min
Chilled Water Connection Size
3/4”
Width
500
Dimension of Unit
Height
320
Depth
320
Net Weight (kg)
11,6 kg
More parameters

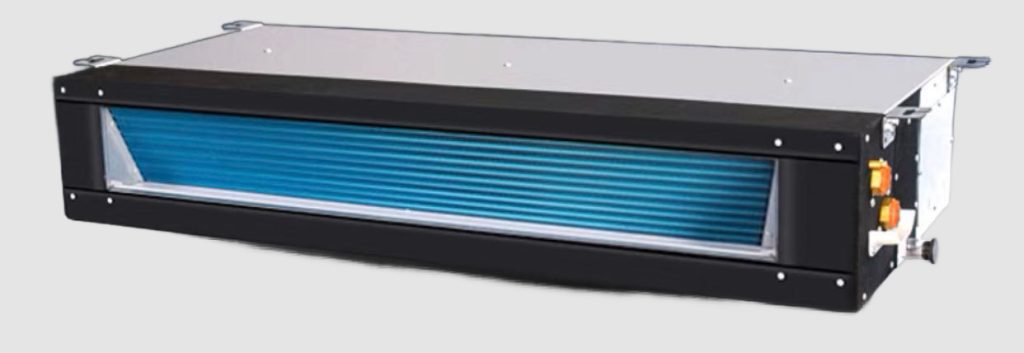

H8bfddd09f6474fb9a9762b44fce75c2f1 2

The post CFP12 – Horizontal Fan Coil for Chiller Systems appeared first on MBC Marine.

]]> CFP16 – Horizontal Fan Coil for Chiller Systems https://mbc-marine.com/product/cfpg16-horizontal-fan-coil-fan-coil-unit-for-chiller-systems/ Mon, 20 Oct 2025 07:56:22 +0000 https://mbc-marine.com/?post_type=product&p=7419 Capacity (BTU/h): 16 000 BTU/h



Voltage / Frequency
230V / 50-60Hz		 Electrical Heater
1000W
Warranty
2-year		 Evaporator Material
Blue-Fin Coating
Basic package includes: LED Display, FCU Controller, 5m Network cable, Mounting brackets, Insulation tape
Unit Dimensions (mm)
W x H x D		 950x195x475
Air Flow: 800 m3/h
Package Dimensions (mm)
W x H x D		 1050x320x550
UNIT Weight (kg) 19kg
Shipping Weight (kg) 22,1kg



The post CFP16 – Horizontal Fan Coil for Chiller Systems appeared first on MBC Marine.

]]>

MBC Marine 16K Fan Coil Unit – Powerful Climate Control for Larger Cabins

The MBC Marine 16,000 BTU horizontal fan coil unit delivers powerful yet whisper-quiet climate control for larger cabins and saloons on boats, yachts, and catamarans.


Engineered for chiller systems, it comes equipped with an FCU controller, digital display, and an integrated flow control valve for precise temperature regulation and energy-efficient performance.

Built with an AISI 316 stainless steel condensate tray and a corrosion-resistant housing, the 16K horizontal unit is designed to endure harsh marine conditions. Its ultra-low-profile horizontal design makes it the perfect solution for installations under ceilings or in floor-level compartments where space is limited.


Ideal for both new builds and retrofit projects, the MBC Marine 16K horizontal fan coil unit ensures year-round onboard comfort with silent operation and minimal maintenance.


More Information

Specifications of The A/C Unit

Unit Parameters
CFP16
Cooling capacity
Btu/h
16000
Power source
230V/50-60Hz
Operating Current
A
0,9 A
Input power
W
200 W
Drain Water Connection size
DN20
Chilled Water Flow
L/min
16,5 L/min
Chilled Water Connection Size
3/4”
Width
530
Dimension of Unit
Height
370
Depth
330
Net Weight (kg)
14,9 kg
More parameters
ChatGPT Image 2025. okt. 20. 16 14 51 2

The post CFP16 – Horizontal Fan Coil for Chiller Systems appeared first on MBC Marine.

]]>
