SDC 12-24-48V - Direct expansion
Self Contained systems
7.000 - 12.000 - 16.000 BTU/h.
COOLING, HEATING, DEHUMIDIFYING WITH A SINGLE DEVICE,
PROVIDING PERFECT TEMPERATURE ON BOARD!
A SDC unit is the exclusive and innovative sea water cooled boat air conditioner powered in 12 V – 24 V and 48V (direct current) directly from the battery bank of your boat, without using a generator or inverter. The SDC units is a well designed and elegant product which offers the most simple and versatile installation.
To make the connection of the air ducts to the air conditioner the easiest one, the blower can be rotated allowing many installation options. The best quality of the treated air is assured by the installation of an easily removable and washable filter. All SDC units are manufactured from durable materials – all metallic components are made in stainless steel AISI316 – and using the most advanced state-of-the-art technologies which ensure long service life and high quality.
Each air conditioner unit is delivered fully tested in our factory and in a pre-loaded condition, filled with an eco-friendly cooling agent. No further installation or inspection is required for safe use after installation.
Join us in the world of always pleasant and perfect thermal comfort!



For the easiest installation fan can be rotated.

Unit Parameters | SDC 12-7000 | SDC 24-7000 | SDC 24-12000 | SDC 48-16000 | |
---|---|---|---|---|---|
Power Supply | Ph/V/Hz | DC12V | DC24V | DC24V | DC48V |
COOLING | |||||
Capacity | BTU/h | 7000 | 7000 | 12000 | 16000 |
Rated power | kW | 0.45 | 0.56 | 0.72 | 0.96 |
Rated current | A | 35 | 23 | 30 | 20 |
HEATING | |||||
Capacity | BTU/h | 8000 | 8500 | 13000 | 17000 |
Rated power | kW | 0.54 | 0.6 | 0.8 | 1.2 |
Rated current | A | 45 | 25 | 35 | 25 |
Seawater flow | m3/h | 0.55 | 0.6 | 0.9 | 1.2 |
Air flow | m3/h | 350 | 350 | 450 | 600 |
Dehumidification | L/h | 0.8 | 1.0 | 1.2 | 1.8 |
Noise level | dB(A) | 50 | less 50 | 50 | 55 |
Width | mm | 400 | 400 | 480 | 500 |
Height | mm | 280 | 280 | 300 | 340 |
Depth | mm | 240 | 240 | 285 | 513 |
Weight | kg | 18 | 18 | 23 | 31 |
Refrigerant type | R134A | R134A | R134A | R134A | |
Air duct Diameter | mm | 100 | 100 | 125 | 150 |
Sea water pipe Diameter | mm | 16 | 16 | 16 | 16 |
MBC Marine
Smart Connect
With the MBC Marine Smart Connect, you can ensure the perfect temperature and fresh air supply for your boat at any time.
Either from your office or waiting at the red light.
Imagine, how comfortable it would be if your boat
welcomes you with the preset temperature.
Your smartphone is always available, so all
you have to do is connect to your boat’s
air conditioning via the Internet and
set the desired temperature.
Be it cooling or heating mode.


MBC Marine
Smart Connect
With the MBC Marine Smart Connect, you can ensure the perfect temperature and fresh air supply for your boat at any time.
Either from your office or waiting at the red light.
Imagine, how comfortable it would be if your boat
welcomes you with the preset temperature.
Your smartphone is always available, so all
you have to do is connect to your boat’s
air conditioning via the Internet and
set the desired temperature.
Be it cooling or heating mode.

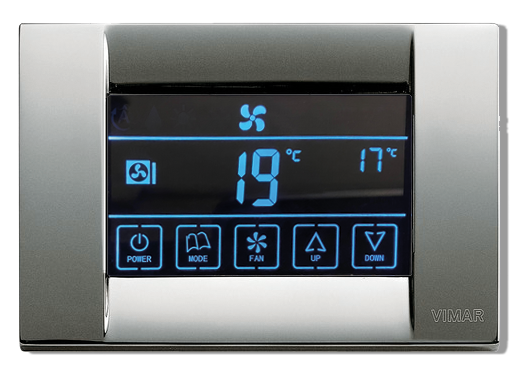

Including LCD Display
