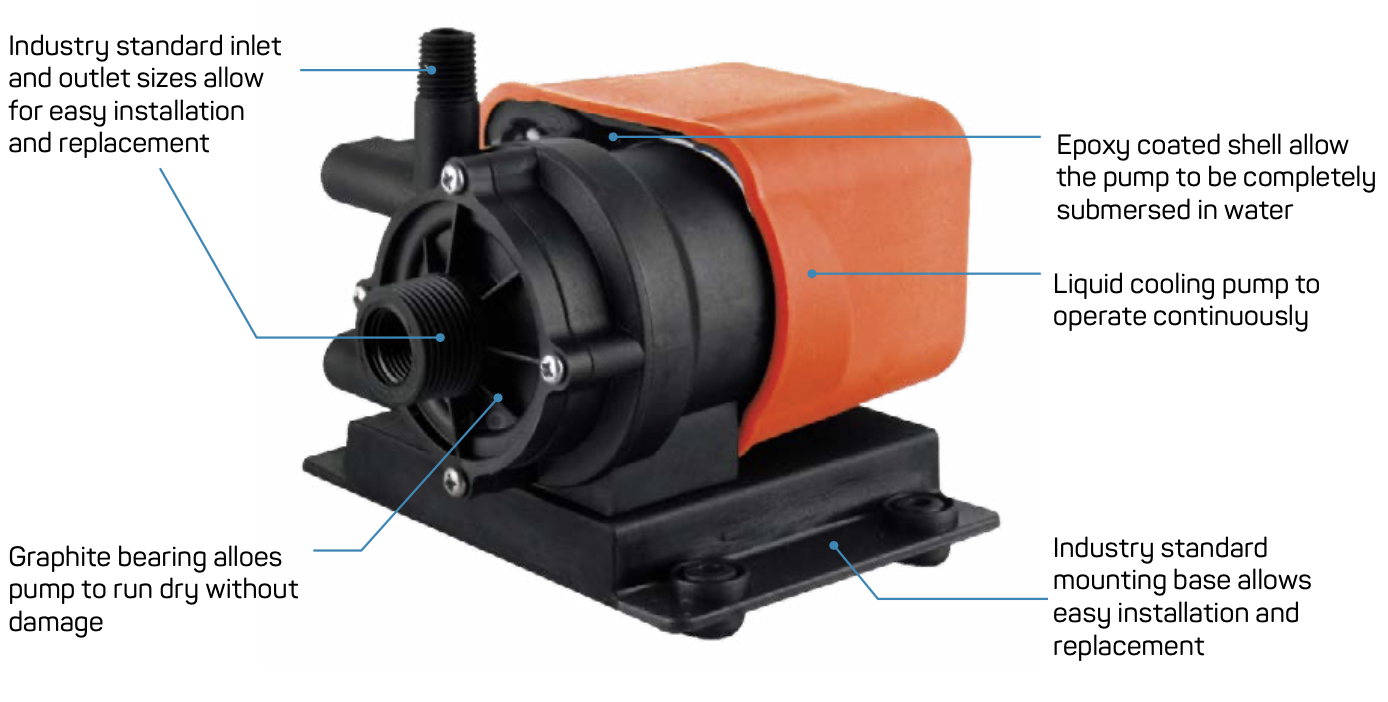

The Magnetic Circulation pump is a centrifugal drive pump, eliminating the need for a shaft seal. Pumps are serviceable with a screwdriver. The pump is able to be run fully submerged or in open air for complete moisture protection. It also can pump liquids with a specific gravity greater than water, have a higher viscosity.
MODEL | VOLTAGE | FLOW RATE | FREQUENCY | HEAD | POWER | AMPS DRAW |
|---|---|---|---|---|---|---|
MDP18 | 230 V | 5 GPM | 60 Hz | 13 ft / 5,2 psi | 55 W | 0,50 A |
18,5 LPM | 50 Hz | 2,7 m | 55 W | 0,56 A | ||
MDP24 | 230 V | 8,5 GPM | 60 Hz | 19 ft / 8,2 psi | 110 W | 0,9 A |
31 LPM | 50 Hz | 4,3 m | 105 W | 0,9 A |

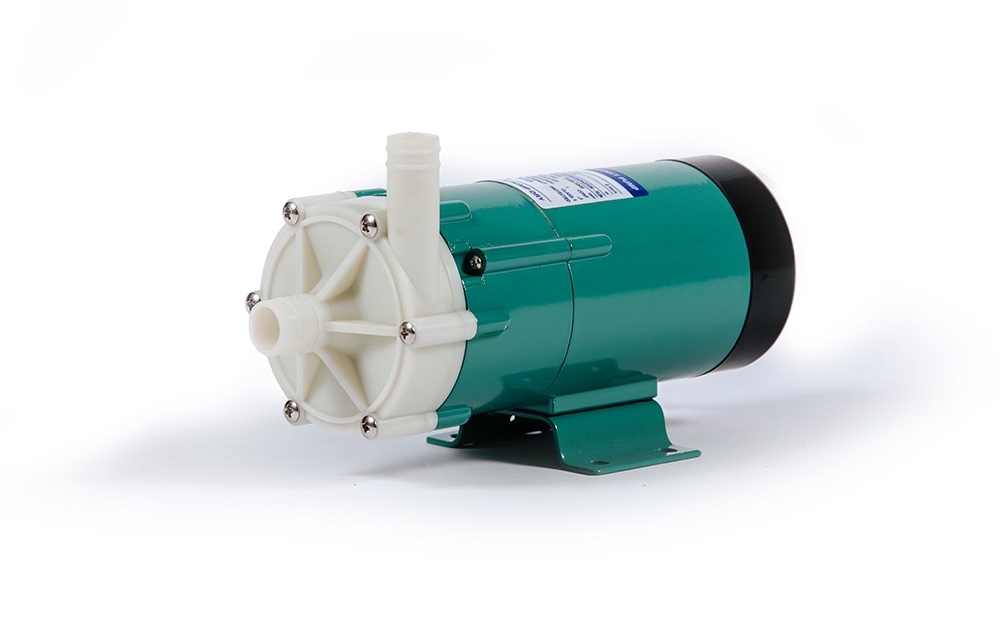

Magnetic drive circulation pump is running on the shaft and impeller assembly of magnetic materials and attracted to each other coupled respectively ,don’t need to match with the traditional mechanical shaft seal, so it is completely sealed.
Motor rotation toque is through active magnetic and driven magnetic gravity drive blade work operation. It is the most ideal liquid pump on boat industrial equipment.
MAGNETIC DRIVEN | |||
|---|---|---|---|
Model | MP-15-R | MP-20-R | MP-40-R |
Condensing capacity BTU/h | 6.000-8.000 | 10.000-13.000 | 16.000-24.000 |
Capacity l/m | 10 | 15 | 22.5 |
Power absorption W | 27 | 45 | 60 |
Input voltage V – PH – Hz | 27 | 45 | 60 |
Diam. Inlet.outlet mm | 14 | 17 | 20 |
Net weight (kg) | 2 | 2.3 | 4 |
Sizes mm | 167x104x100 | 202x106x113 | 272x120x130 |
