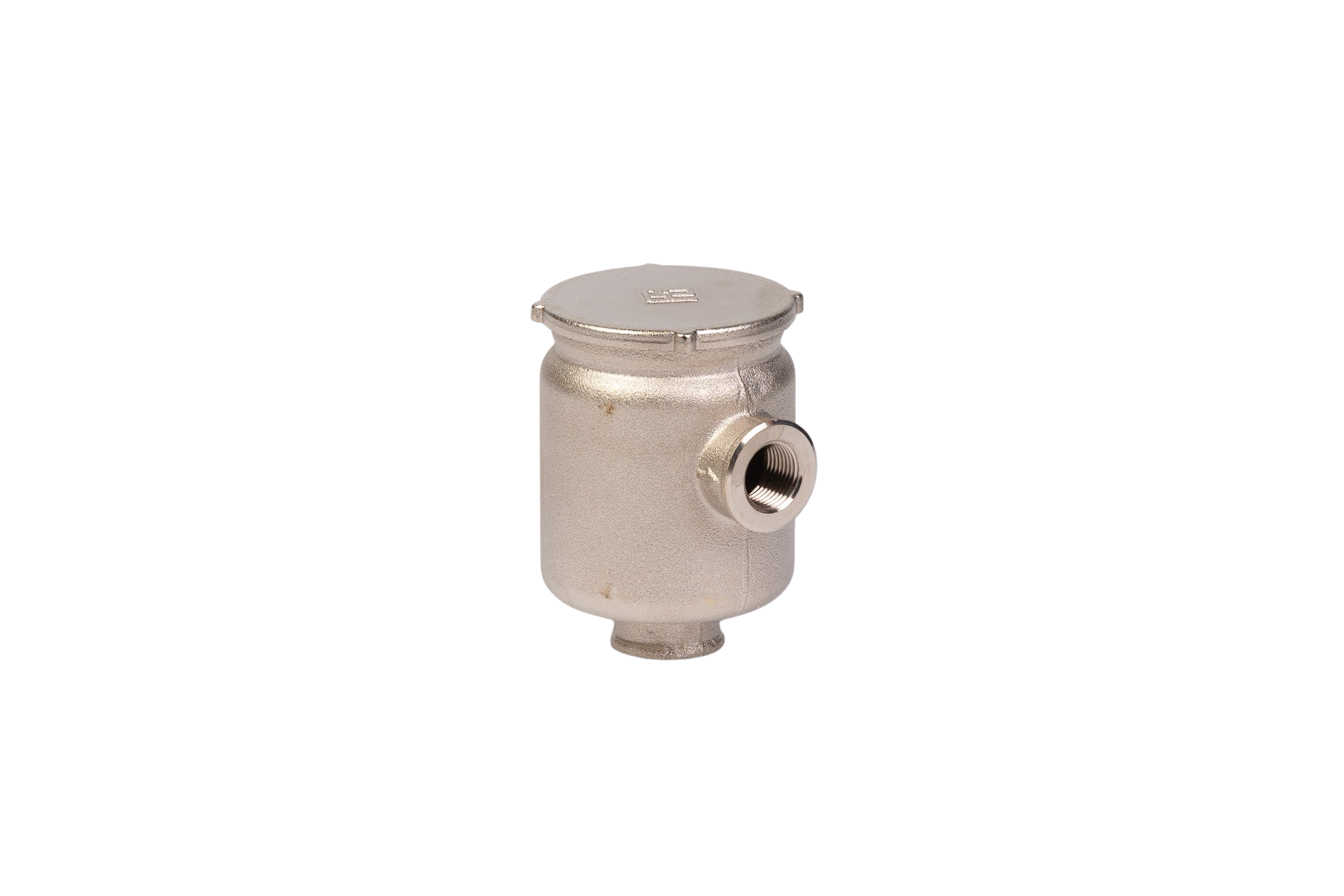

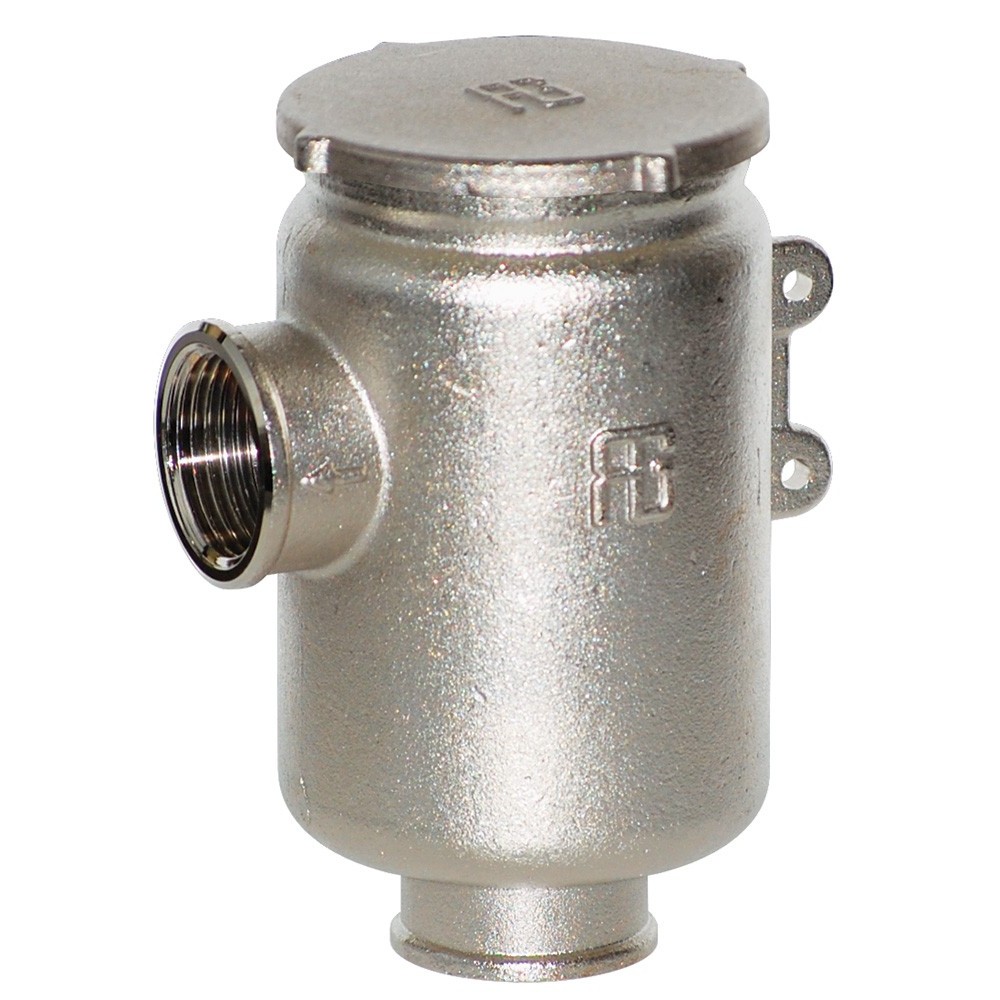

SEA WATER STRAINER AMP-S-02
SEA WATER STRAINER AMP-S-02
SEA WATER STRAINER AMP-S-02
SEA WATER STRAINER AMP-S-02

SEA WATER STRAINER AMP-S-02

AMP-S-02 Specification Value
Connection Size 1/2″ BSP (ISO 228/1)
Body Material Nickel-plated marine bronze
Cover Material Nickel-plated metal

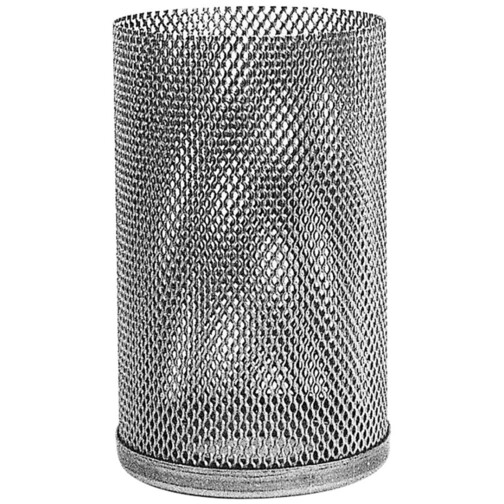

Filter Basket AISI 316L stainless steel
Gasket Material Neoprene
Max Flow Rate 8,180 l/h @ 1 bar

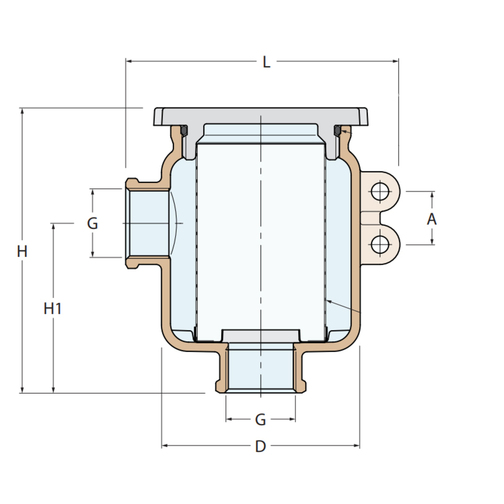

Total Height (H) 108 mm
Cover Diameter (A) 30 mm
Basket Height (L) 104 mm
Inlet Center to Base (H1) 64 mm
Weight Approx. 1,050–1,100 g
Certification RINA DIP

Categories : ,

Description

AMP-S02  1/2″ Water Strainer

Compact in size, uncompromising in reliability – the 1/2″ water strainer is the ideal solution for smaller marine air conditioner systems.

Built with a nickel-plated bronze body and a solid metal cover, it ensures long-lasting durability even in harsh marine environments. The internal AISI 316L stainless steel mesh basket provides efficient filtration, while the neoprene gasket ensures a secure, leak-free seal.
