SCP - Direct expansion
Split systems

10.000 to 24.000 BTU/h.

COOLING, HEATING, DEHUMIDIFYING WITH A SINGLE DEVICE,
PROVIDING PERFECT TEMPERATURE ON BOARD!

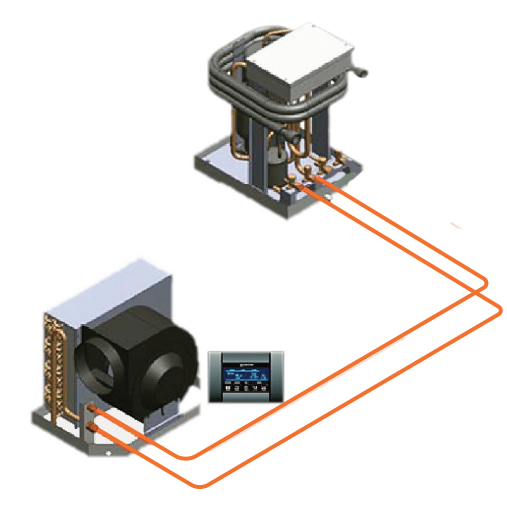

MBC Marine – SCP units are direct expansion systems consisting into two separate units (condensing and ventilating units) which represent the ideal solution to serve the air conditioning needs of sailing and motor boats. The use of split systems minimizes the noise level into the cabins because the compressor (condensing unit) can be installed outside of the living ambient and it represents also the optimal solution in those situations where there is not enough space to install a Self Contained system. The most typical installation is with the condensing unit placed into the engine compartment in order to isolate the noise from the compressor, while the ventilating unit is generally installed below the sofa or the bed or into a furniture inside one cabin. Condensing and ventilating units of a split system are connected each other by mean of insulated copper refrigerant pipes. SCP units come with a standard of 2.5 m long insulated pipes; it is also possible to increase the distance between the two parts of the air conditioners up to 7-8m. For such long distances, it is suggested to contact MBC technical department to ask for suggestions.

SCP systems are available in 4 models ranging from 10,000 to 24,000 BTU / h cooling capacity. Thanks to the heat pump design (reverse cycle operation) they provide the most convenient solution for an all-round year use. SCP units are carefully designed to be lightweight and compact and for a quick and easy installation in any suitable room of every boat.

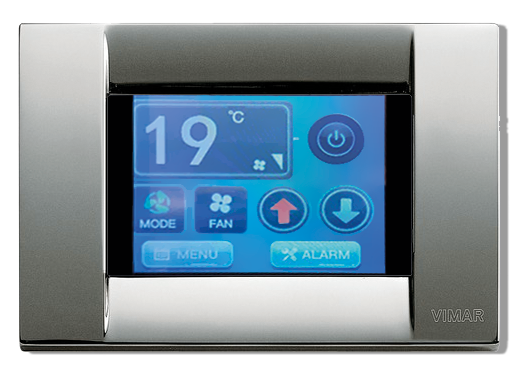

MBC Marine – SCP type air conditioning systems are provided with an elegant LCD backlighted digital control panels as part of the standard kit. These units are equipped with easy-to-remove and washable air filters to ensure constant filtration and the best quality of the internal air. To make the connection of the air ducts to the air conditioner the easiest one, the blower can be rotated allowing many installation options.

All SCP units are manufactured from durable materials – all metallic components are made in stainless steel

• 3 operation mode: Cool – Heat – Fan
• 5-speed fan speed selection
• High & low pressure protection
• Overload protection
• Compressor 3-minutes delayed start function
• Humidity control
• Memory functions: Timer ON or OFF
• Sleep & alarm function

• Condenser coil with high-efficiency spiral double tube allows high-heat exchange rate.
• Freely adjustable air outlet.
• Rust resistant components by using stainless steel
• Nikkel Antimicrobial Evaporators
• High static pressure ball bearings blowers with auto mode

AISI316 – and using the most advanced state-of-the-art technologies which ensure long service life and high quality. Each air conditioner unit is delivered fully tested in our factory and in a pre-loaded condition, filled with an eco-friendly cooling agent. No further installation or inspection is required for safe use after installation.

Unit Parameters
SCP 10
SCP 13
SCP 16
SCP 24
Parameter list of Condensing unit
Cooling capacity
Btu/h
10000
13000
16000
24000
Heating capacity
Btu/h
8700
13800
17600
26400
Power Source
230 V / 50Hz
Input power (kW)
0.94
1.05
1.15
1.36
Refrigerant
R410A
Dimension of Condensing unit
Height
315
315
335
408
Weight
280
280
250
250
Depth
220
220
330
330
Connection Pipe
Gas
9.52
9.52
12.7
12.7
Liquid
6.35
6.35
9.52
9.52
Sea Water Connection Size
1/2″
1/2″
1/2″
1″
Drain Connection Size
DN20
DN20
DN20
DN20
Net Weight (kg)
29
30
32
58
Parameter list of Evaporator unit
Dimension of Evaporator unit
Height
300
300
355
430
Width
355
355
500
560
Depth
245
245
345
370
Minimum Air Duct Size (mm)
125
125
150
200
Input power (W)
100
150
200
300
Connection Pipe
Gas
9.52
9.52
12.7
12.7
Liquid
6.35
6.35
9.52
9.52
Drain Connection Size
DN20
DN20
DN20
DN20
Net Weight (kg)
10
12
14
18

MBC Marine
Smart Connect

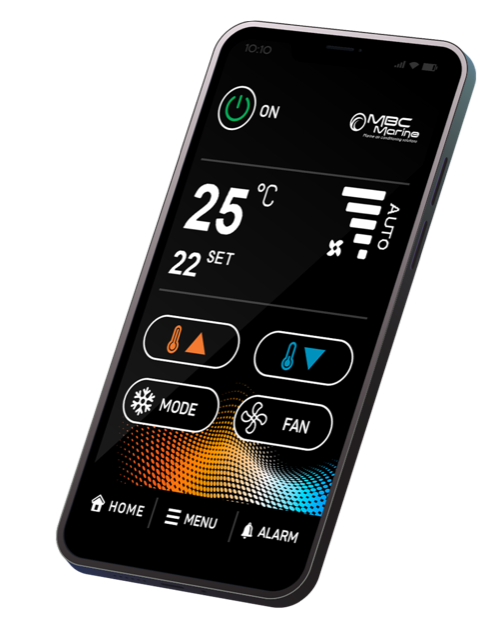

With the MBC Marine Smart Connect, you can ensure the perfect temperature and fresh air supply for your boat at any time.

Either from your office or waiting at the red light.
Imagine, how comfortable it would be if your boat
welcomes you with the preset temperature.
Your smartphone is always available, so all
you have to do is connect to your boat’s
air conditioning via the Internet and
set the desired temperature.
Be it cooling or heating mode.

MBC Marine
Smart Connect

With the MBC Marine Smart Connect, you can ensure the perfect temperature and fresh air supply for your boat at any time.

Either from your office or waiting at the red light.
Imagine, how comfortable it would be if your boat
welcomes you with the preset temperature.
Your smartphone is always available, so all
you have to do is connect to your boat’s
air conditioning via the Internet and
set the desired temperature.
Be it cooling or heating mode.

Including LCD Display
