Capacity (BTU/h): 24 000 BTU/h
| Voltage / Frequency 230V / 50-60Hz |
Operation Mode Cooling / Heating |
| Warranty 2-year |
Evaporator Material Blue-Fin Coating |
| Basic package includes: | LED Display, 5m Network cable, Mounting brackets, Insulation tape |
| Possible optionals: | SMART display + Soft Starter |
| Unit Dimensions (cm) H x W x D |
Condenser: 408x250x330 Evaporator: 430x560x370 |
| Package Dimensions (cm) H x W x D |
|
| UNIT Weight (kg) | Condenser: 52 kg Evaporator: 18 kg |
| Shipping Weight (kg) |
Categories : AC UNITS, SCPM - MULTI SPLIT SYSTEM
SKU : N/A

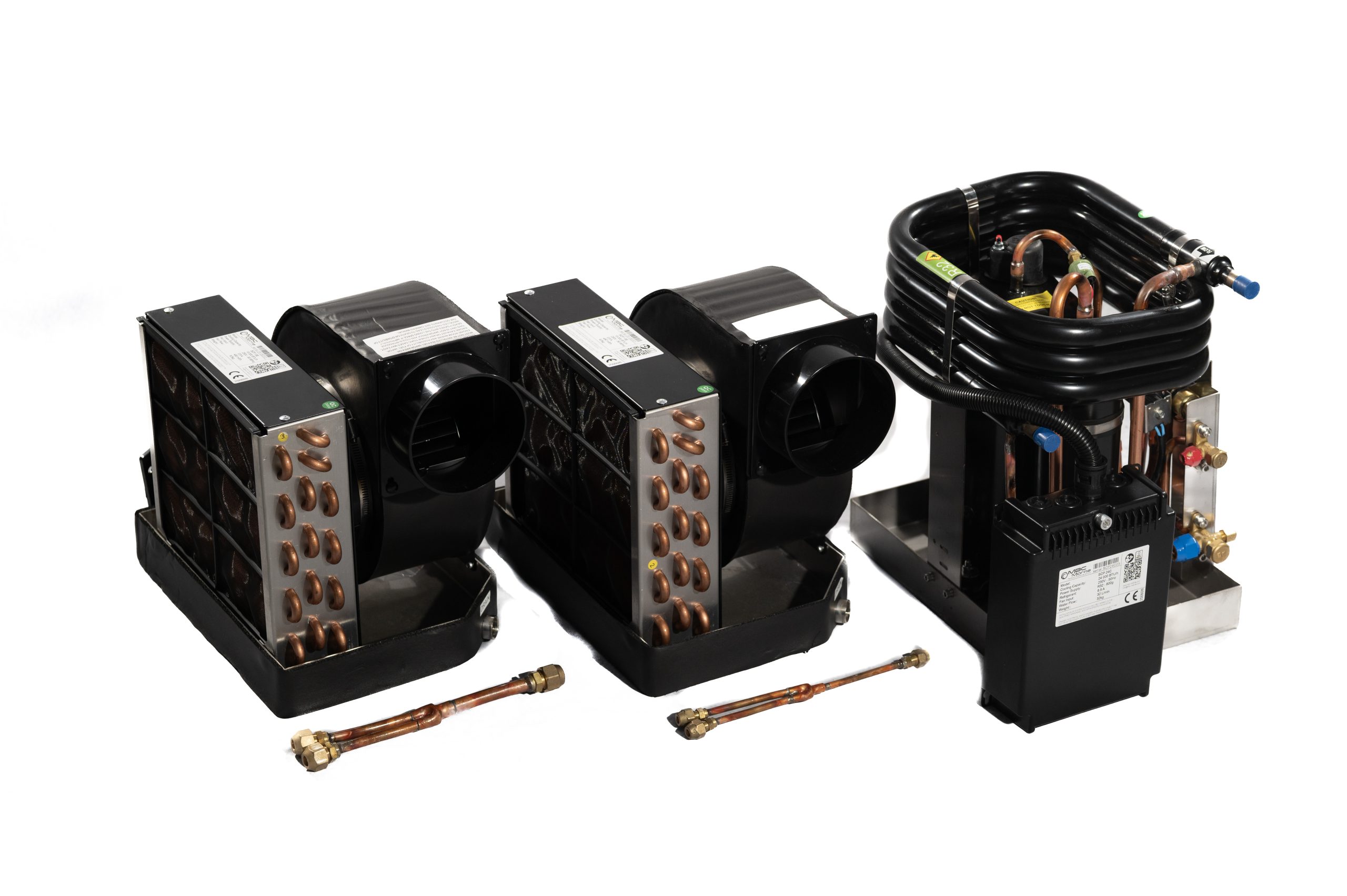

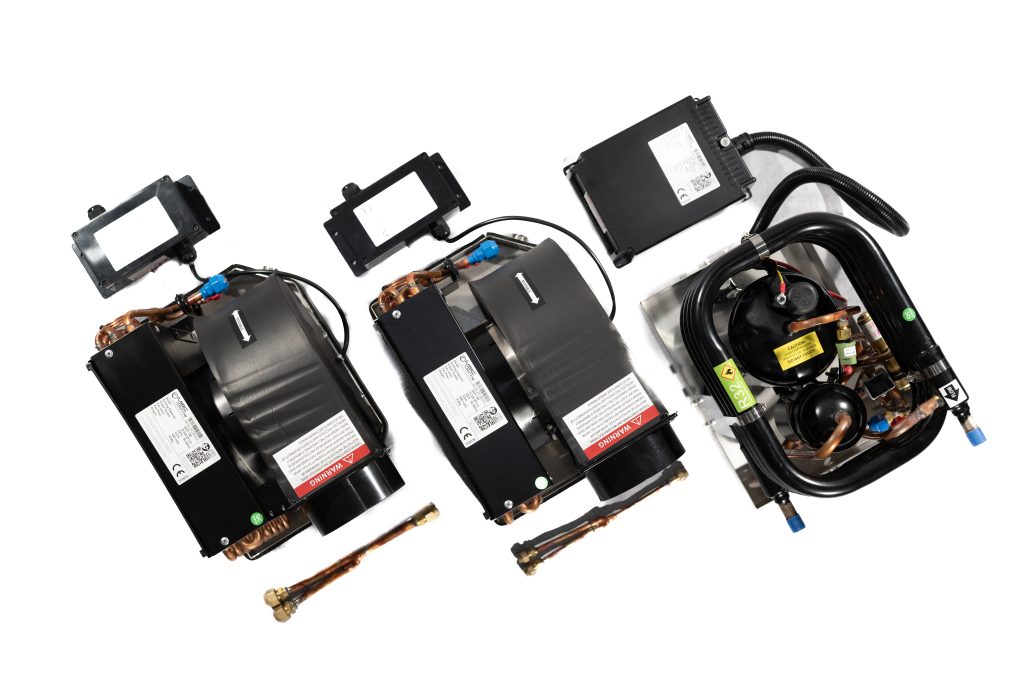

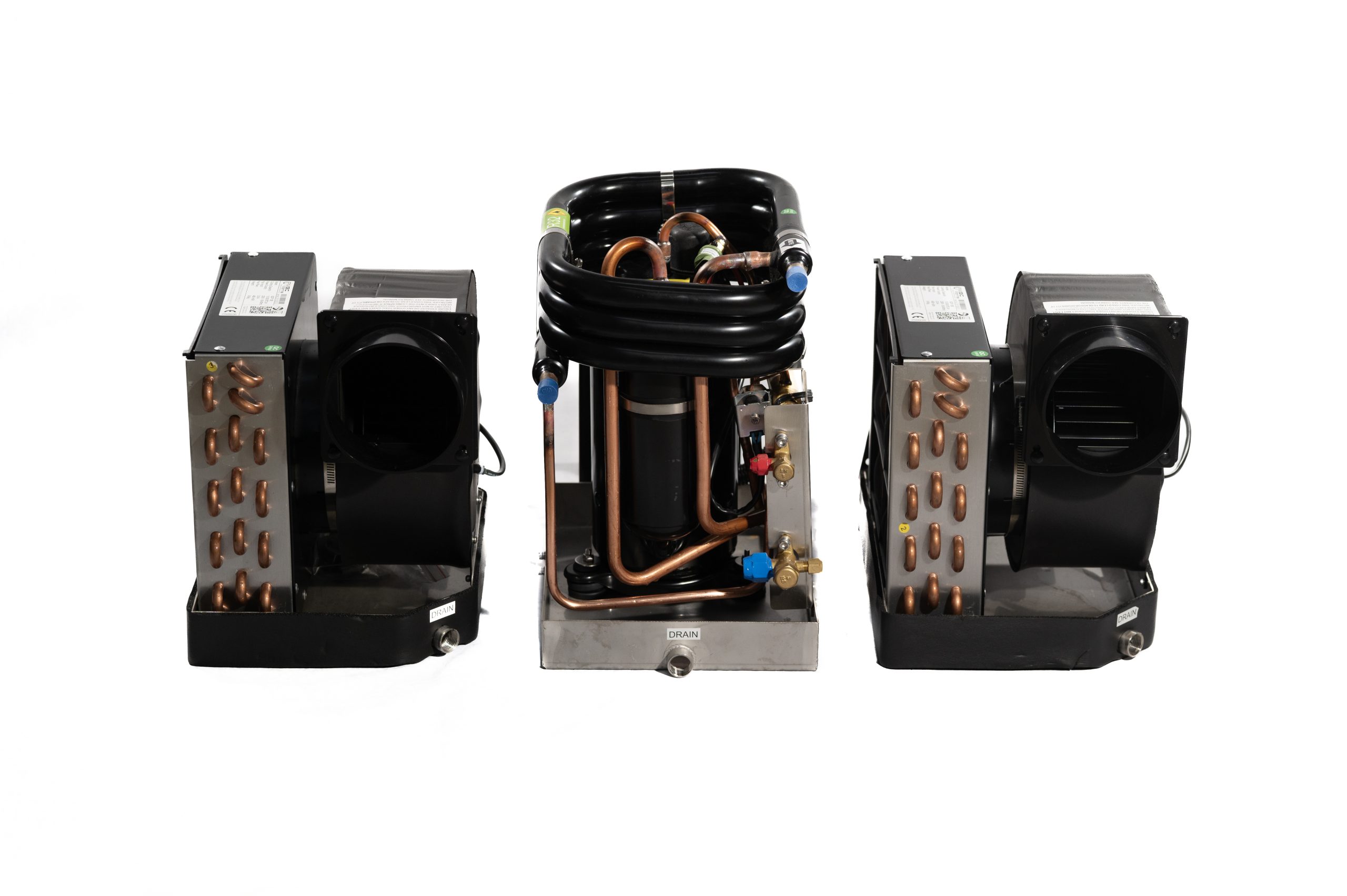

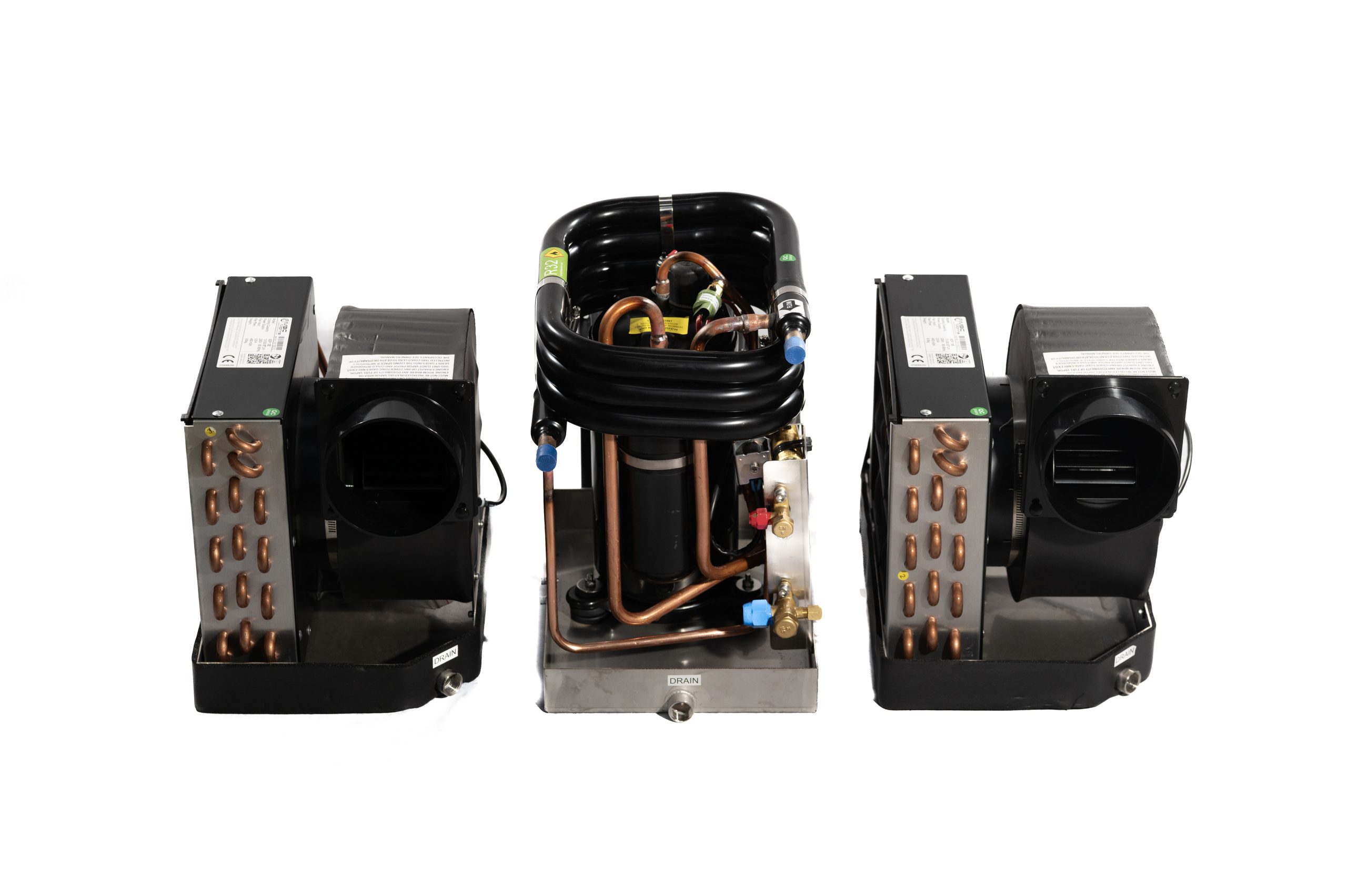

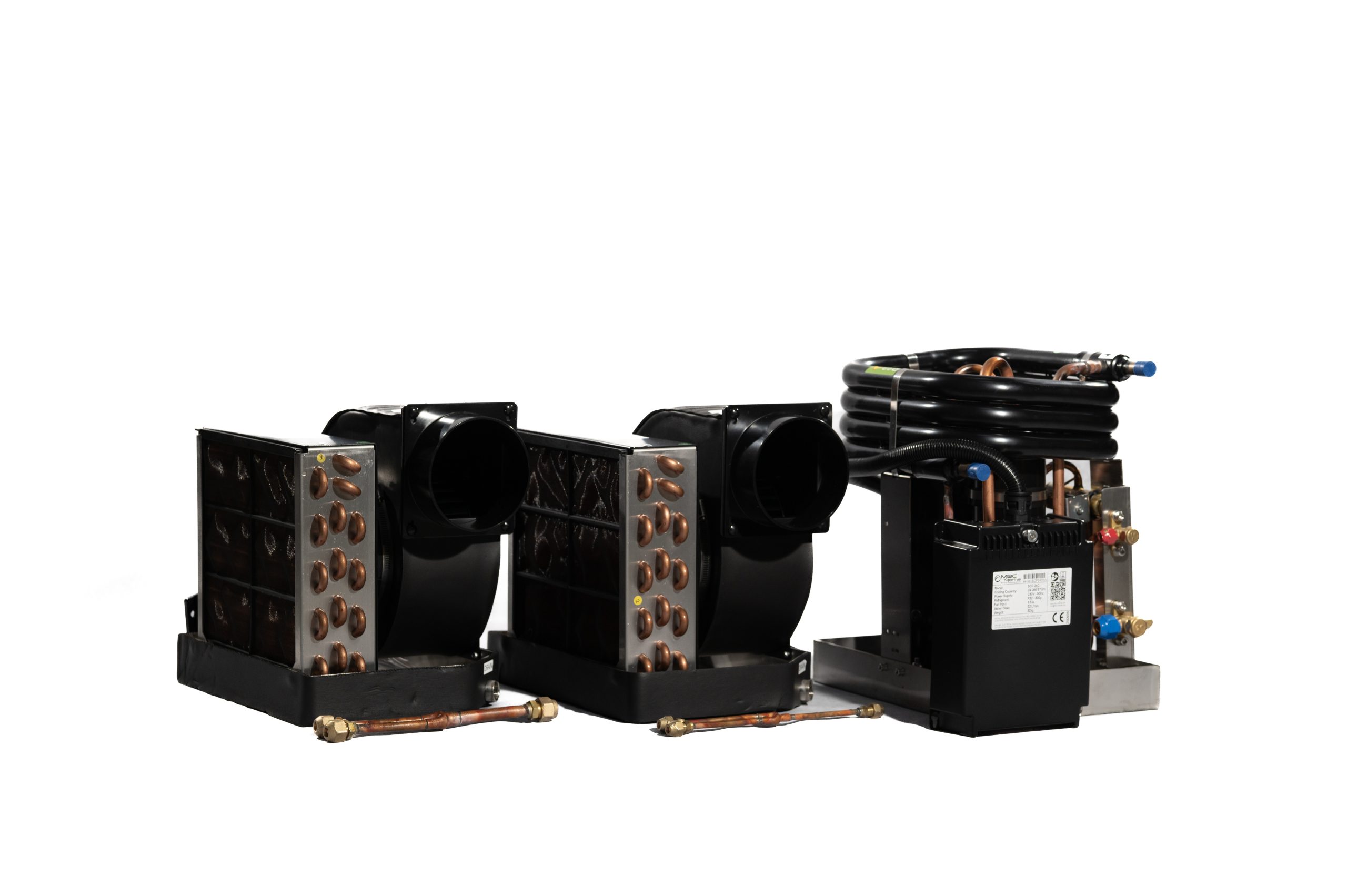

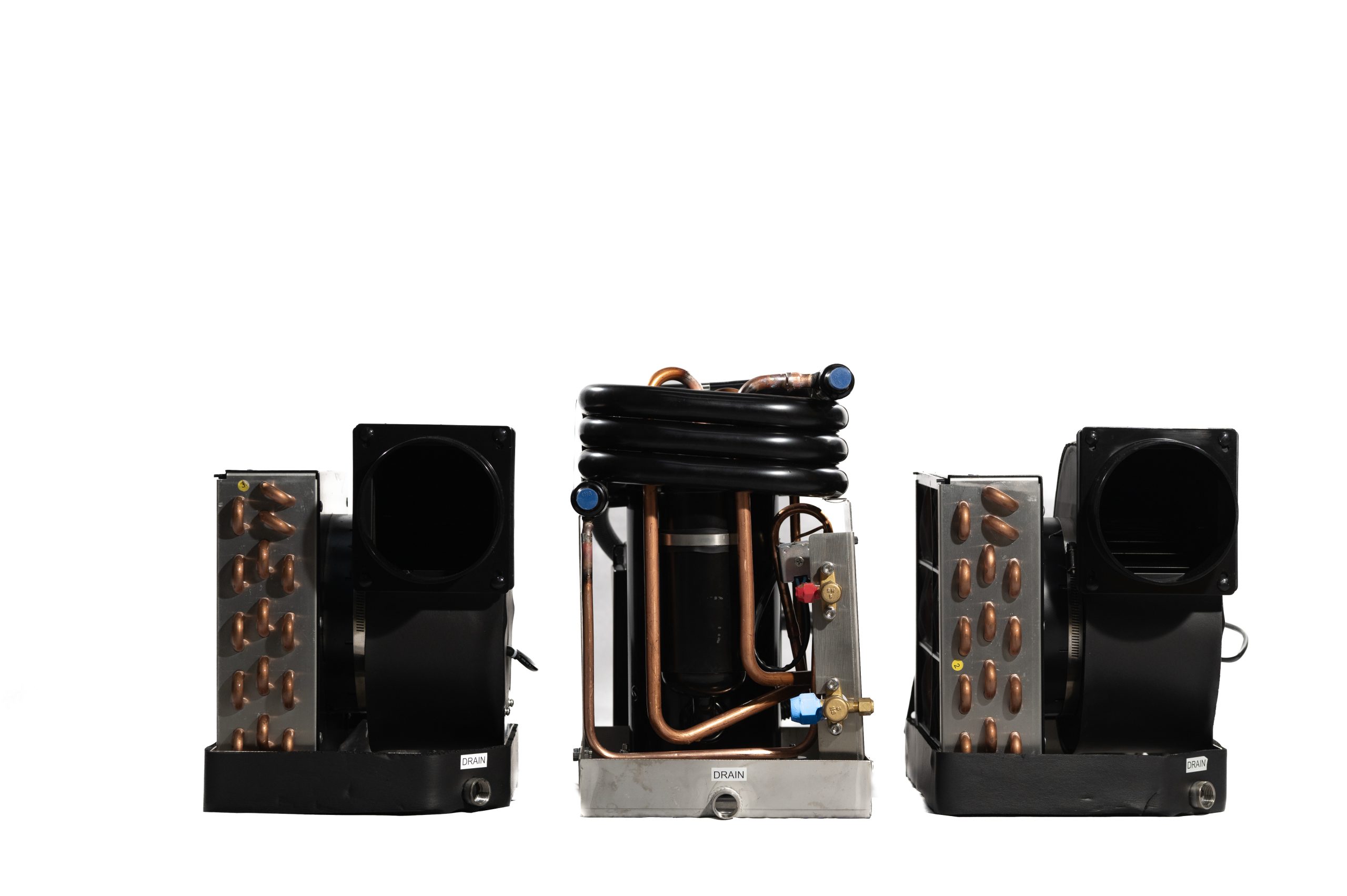

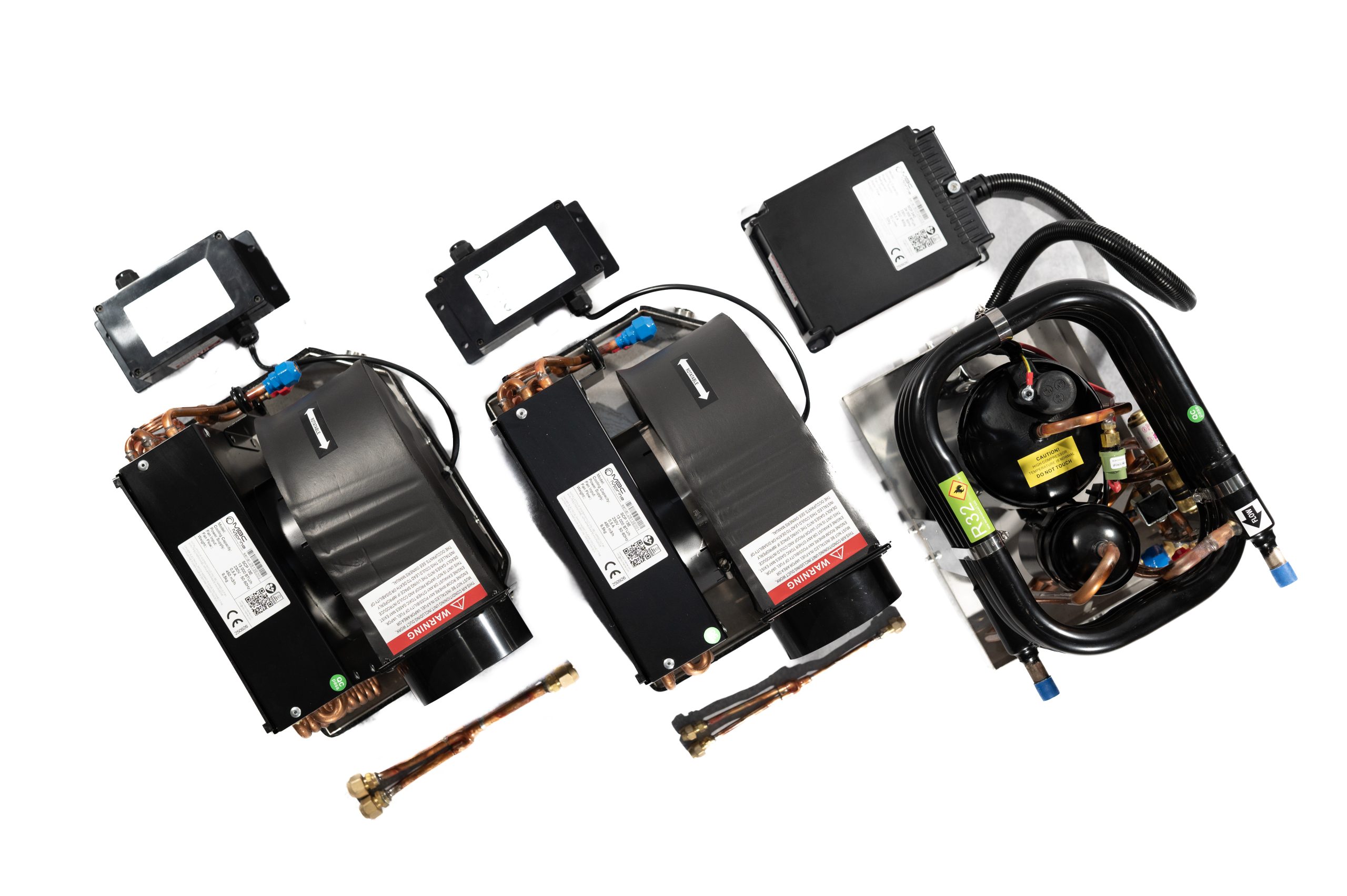

MBC Marine Multi Split System – Dual Evaporator Marine Split Air Conditioning System
The MBC Marine Multi Split System is an innovative marine air conditioning solution that combines a single high-performance condensing unit (compressor) with two evaporator units. The system is an ideal choice for vessels where simultaneous cooling or heating of two cabins or two conditioned spaces is required, but independent zone control is not necessary, or where excessively long ducting would result in noticeable performance losses.
The system operates with a single central control display that simultaneously manages both evaporators. This ensures simple operation, stable system performance, and optimized load management, while keeping the overall system logic clear and easy to understand for the end user.
Unit Parameters | SCPM 24.000 BTU | ||||
|---|---|---|---|---|---|
Parameter list of Condensing unit | |||||
Cooling capacity | Btu/h | 24000 | |||
Heating capacity | Btu/h | 26400 | |||
Power Source | 230 V / 50Hz | ||||
Input power (kW) | 1.36 | ||||
Refrigerant | R410A | ||||
Dimension of Condensing unit | Height | 408 | |||
Weight | 250 | ||||
Depth | 330 | ||||
Connection Pipe | Gas | 12.7 | |||
Liquid |
9.52 | ||||
Sea Water Connection Size | 1″ | ||||
Drain Connection Size | DN20 | ||||
Net Weight (kg) | 58 | ||||
Parameter list of Evaporator unit | |||||
Dimension of Evaporator unit | Height | 430 | |||
Width | 560 | ||||
Depth | 370 | ||||
Minimum Air Duct Size (mm) | 200 | ||||
Input power (W) | 300 | ||||
Connection Pipe | Gas | 12.7 | |||
Liquid | 9.52 | ||||
Drain Connection Size | DN20 | ||||
Net Weight (kg) | 18 | ||||
Unit Parameters | SCPM 24.000 BTU | ||||
|---|---|---|---|---|---|
Parameter list of Condensing unit | |||||
Cooling capacity | Btu/h | 24000 | |||
Heating capacity | Btu/h | 26400 | |||
Power Source | 230 V / 50Hz | ||||
Input power (kW) | 1.36 | ||||
Refrigerant | R410A | ||||
Dimension of Condensing unit | Height | 408 | |||
Weight | 250 | ||||
Depth | 330 | ||||
Connection Pipe | Gas | 12.7 | |||
Liquid |
9.52 | ||||
Sea Water Connection Size | 1″ | ||||
Drain Connection Size | DN20 | ||||
Net Weight (kg) | 58 | ||||
Parameter list of Evaporator unit | |||||
Dimension of Evaporator unit | Height | 430 | |||
Width | 560 | ||||
Depth | 370 | ||||
Minimum Air Duct Size (mm) | 200 | ||||
Input power (W) | 300 | ||||
Connection Pipe | Gas | 12.7 | |||
Liquid | 9.52 | ||||
Drain Connection Size | DN20 | ||||
Net Weight (kg) | 18 | ||||
