Capacity (BTU/h): 7 000 BTU/h
| Voltage / Frequency 24V DC |
Operation Mode Cooling / Heating |
| Warranty 2-year |
Evaporator Material Blue-Fin Coating |
| Basic package includes: | LED Display, 5m Network cable, Mounting brackets, Insulation tape |
| Possible optionals: | SMART display |
| Unit Dimensions: W x H x D | 380x298x200 (cm) |
| Package Dimensions: W x H x D | 520x400x380 (cm) |
| UNIT Weight (kg) | 18kg |
| Shipping Weight (kg) | 20,75kg |
Categories : AC UNITS, SDC units
SKU : N/A
Stay cool at sea – even without shore power. The MBC Marine SDC 7000 BTU 24V DC air conditioner delivers reliable, energy-efficient climate control for small cabins on sailboats, powerboats, and catamarans.
With a compact self-contained design and 360° rotatable blower, the unit allows for flexible installation in tight spaces. The copper fin evaporator ensures excellent heat transfer and corrosion resistance, while the washable air filter keeps the cabin air fresh and clean.
Designed specifically for marine conditions, the unit features a durable ABS plastic base tray for long-term corrosion protection and efficient condensate drainage for hassle-free operation. Every unit is factory-tested and pre-charged with eco-friendly refrigerant, so it’s ready to run right out of the box.
Upgrade to the optional SMART Connect touchscreen controller for remote operation via Wi-Fi and activate ECO mode to reduce power consumption by up to 40%—perfect for off-grid cruising.
Enjoy freedom, comfort, and quiet efficiency.
Unit Parameters | SDC 24-7000 | ||||||
|---|---|---|---|---|---|---|---|
Power Supply | Direct Current | DC24V | |||||
COOLING | |||||||
Capacity | BTU/h | 7000 | |||||
Rated power | kW | 0.56 | |||||
Rated current – NORMAL mode *
| A | 9-11 | |||||
Rated Current – ECO mode * | A | 7-9 | |||||
HEATING | |||||||
Capacity | BTU/h | 8500 | |||||
Rated power | kW | 0.6 | |||||
Rated current – NORMAL mode * | A | 18-20 | |||||
Rated current – ECO mode * | A | 10-12 | |||||
Seawater flow | m3/h | 0.6 | |||||
Air flow | m3/h | 350 | |||||
Dehumidification | L/h | 1.0 | |||||
Noise level | dB(A) | less 50 | |||||

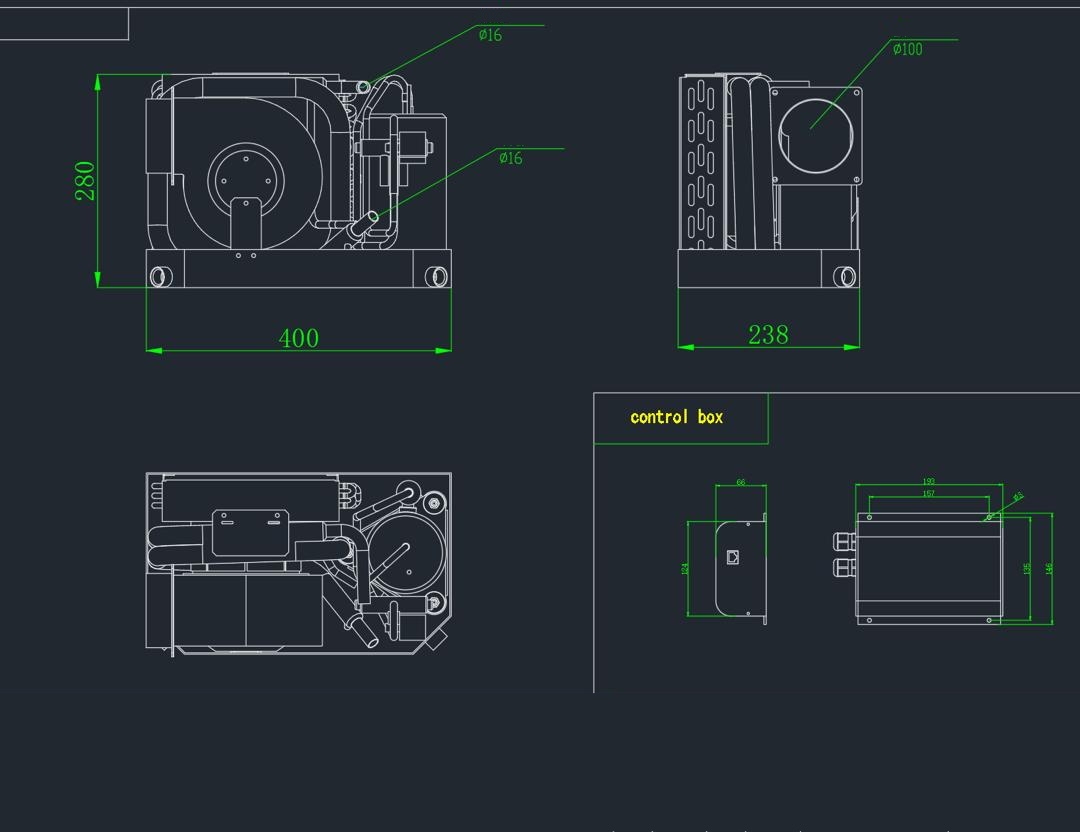

Width | mm | 400 | |||||
Height | mm | 280 | |||||
Depth | mm | 240 | |||||
Weight | kg | 18 | |||||
Refrigerant type | R134A | ||||||
Air duct Diameter | mm | 100 | |||||
Sea water pipe Diameter | mm | 16 | |||||
* Note: DC power consumption varies with seawater temp, humidity, power quality, wiring, and ventilation. Rated values assume normal conditions.
Professional installation is the key to efficient and safe operation of the equipment so please read the following installation and operating instructions carefully before installing the unit.
