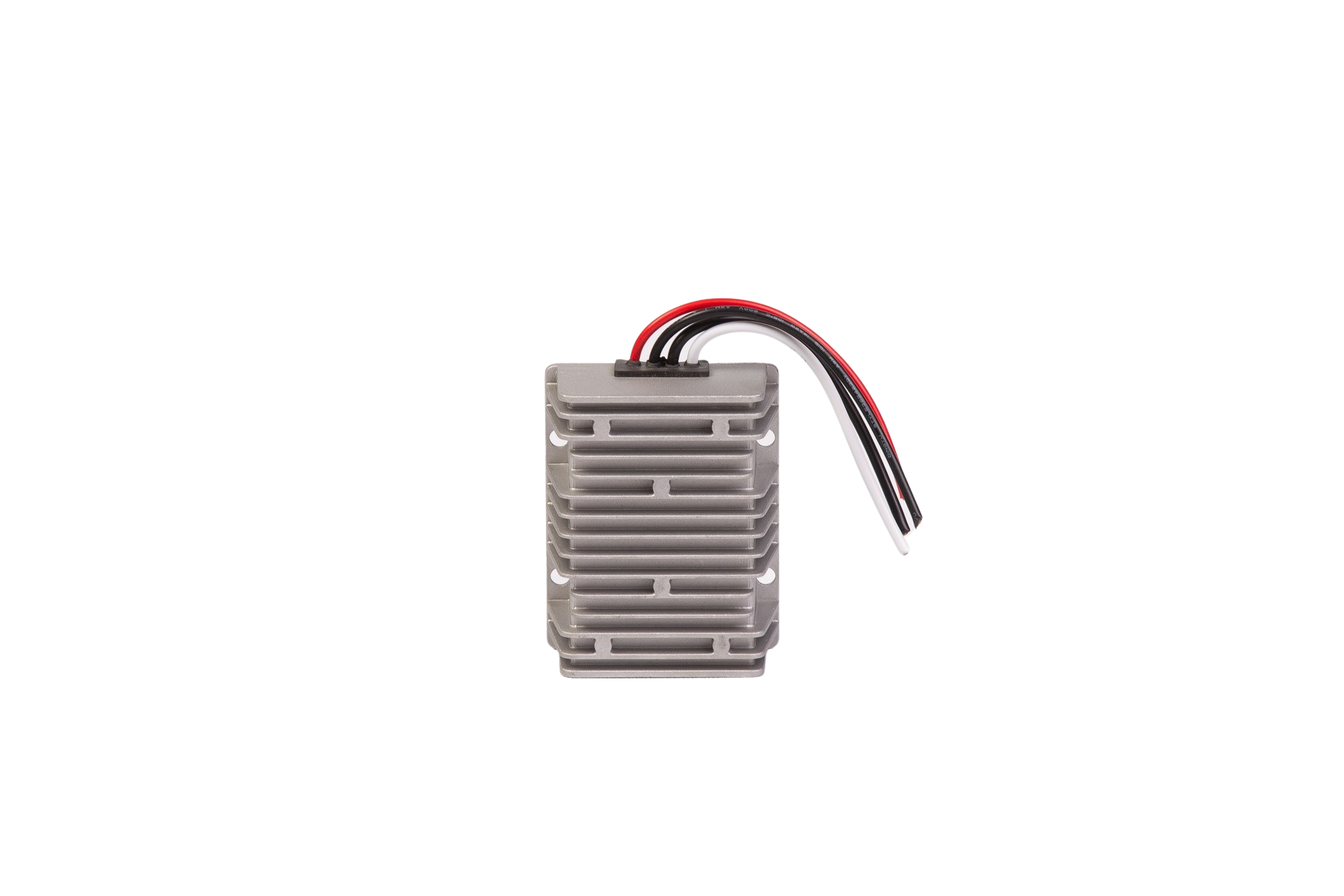

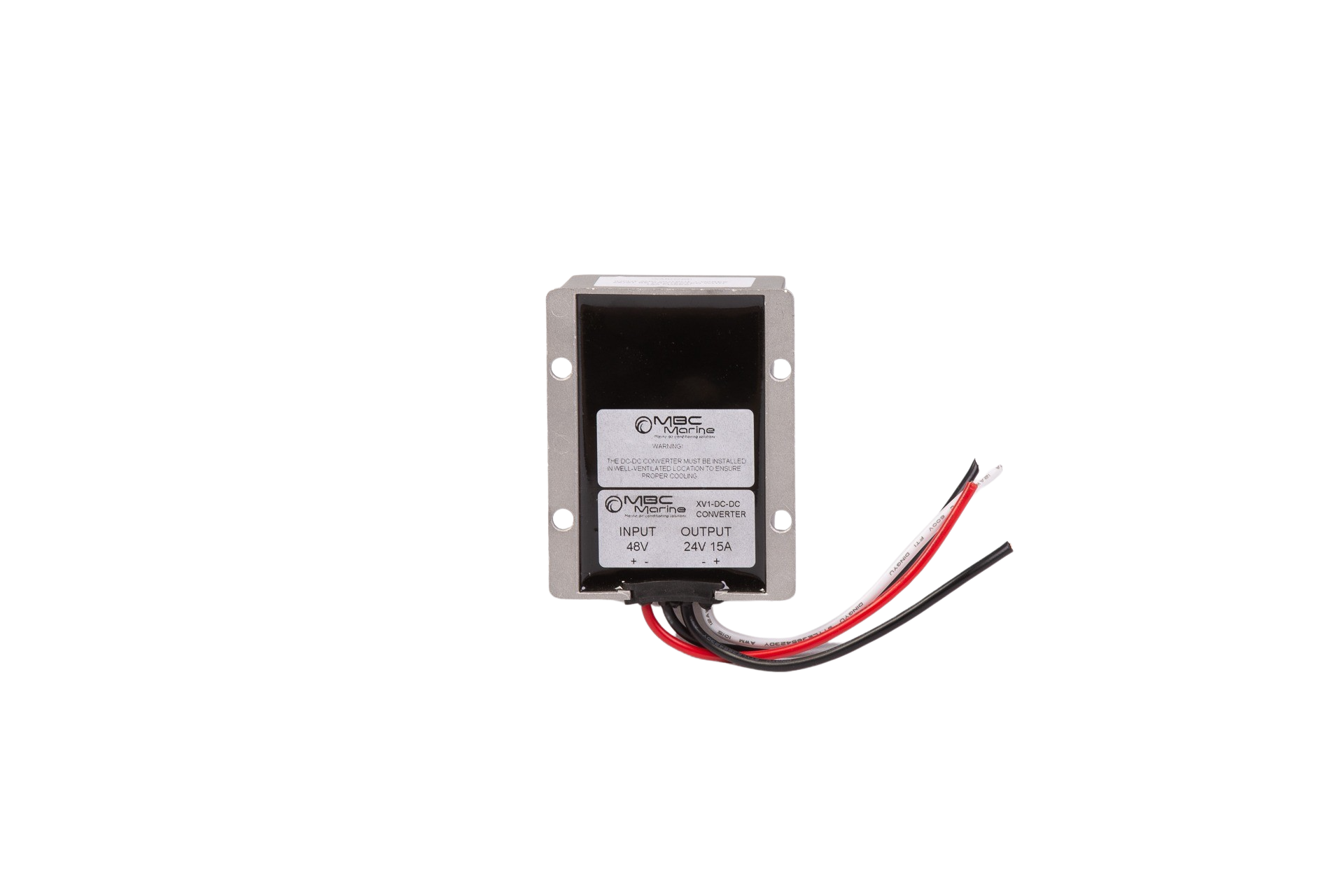

XV1 – 48/24V 15A Converter
XV1 – 48/24V 15A Converter

XV1 – 48/24V 15A Converter

XV-1 Specification Details
Input Voltage 48V DC
Output Voltage 24V DC
Max Output Current 15A
Power Rating Up to 360W
Protection Features Over-voltage, over-current, short-circuit, over-temperature
Enclosure Aluminum heatsink with sealed housing, suitable for marine environments
Connections Screw terminals or fast connectors
Compact Size Easy to install in tight spaces

Categories : ,

Description

Pump Integration Module for MBC Marine 48V DC Air Conditioning Systems

The XV-1 converter is designed to enable seamless integration of a 24V seawater pump into systems powered by a 48V DC power supply. This makes it ideal for installations where a reliable 24V pump is available but the air conditioning unit operates on 48V.
