Capacity (BTU/h): 8 000 BTU/h
| Voltage / Frequency 230V / 50-60Hz |
Electrical Heater
No Electrical Heater option |
| Warranty 2-year |
Evaporator Material Blue-Fin Coating |
| Basic package includes: | LED Display, FCU Controller, 5m Network cable, Insulation tape, |
| Unit Dimensions (cm) H x W x D |
195x580x475 |
| Package Dimensions (cm) H x W x D |
220x630x500 |
| Air Flow | 350 m3/h |
| UNIT Weight (kg) | 14 kg |
| Shipping Weight (kg) | 16,8kg |
Categories : AC UNITS, Horizontal fan coil
SKU : N/A
MBC Marine Fan Coil Units for Chiller Systems – Compact Power & Comfort
The MBC Marine Vertical Fan Coil 8000 BTU unit is designed to deliver powerful and whisper-quiet climate control for boats, yachts, and catamarans equipped with a chiller-based marine air conditioning system.
Its slim, upright design allows for easy installation in compact spaces such as cabins or saloons, while the integrated FCU controller, digital display, and built-in flow control valve ensure precise temperature regulation and energy-efficient operation.
Built with AISI 316 stainless steel condensate trays and a corrosion-resistant housing, this marine fan coil unit is engineered to withstand demanding onboard environments.
Perfect for both new installations and retrofit projects, it provides reliable year-round comfort and seamless compatibility with MBC Marine chiller systems.
Unit Parameters | CFP08 | ||||||
|---|---|---|---|---|---|---|---|
Cooling capacity | Btu/h | 8000 | |||||
Air Flow | m3/h | 350 | |||||
Power source | 230V/50-60Hz | ||||||
Operating Current | A | 0,4 A | |||||
Input power | W | 100 W | |||||
Drain Water Connection size | DN20 | ||||||
Chilled Water Flow | L/min | 6,5 L/min | |||||
Chilled Water Connection Size | 3/4” | ||||||

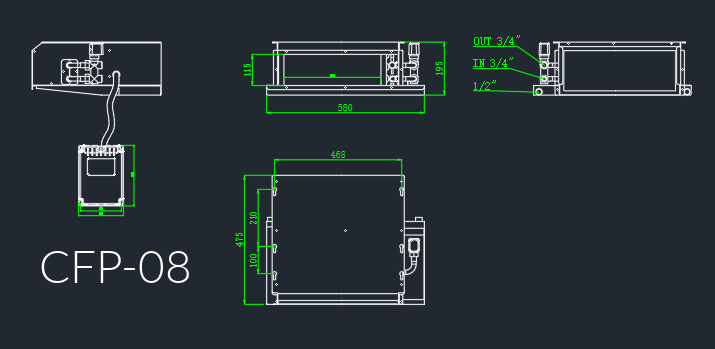

Width | 580 | ||||||
Dimension of Unit | Height | 195 | |||||
Depth | 475 | ||||||
Net Weight (kg) | 14 kg | ||||||
| Model | CFPG08, CFPG10, CFPG12, CFPG16, CFPG24 |
|---|
