Capacity (BTU/h): 12 000 BTU/h
| Voltage / Frequency 230V / 50-60Hz |
Electrical Heater 1000W |
| Warranty 2-year |
Evaporator Material Blue-Fin Coating |
| Basic package includes: | LED Display, FCU Controller, 5m Network cable, Mounting brackets, Insulation tape, Electrical Heater |
| Unit Dimensions (cm) W x H x D |
500x320x320 |
| Package Dimensions (cm) W x H x D |
650x400x460 |
| UNIT Weight (kg) | 12,8kg |
| Shipping Weight (kg) | 15,55kg |
Categories : AC UNITS, Vertical Fan Coil unit for Chiller System
SKU : N/A

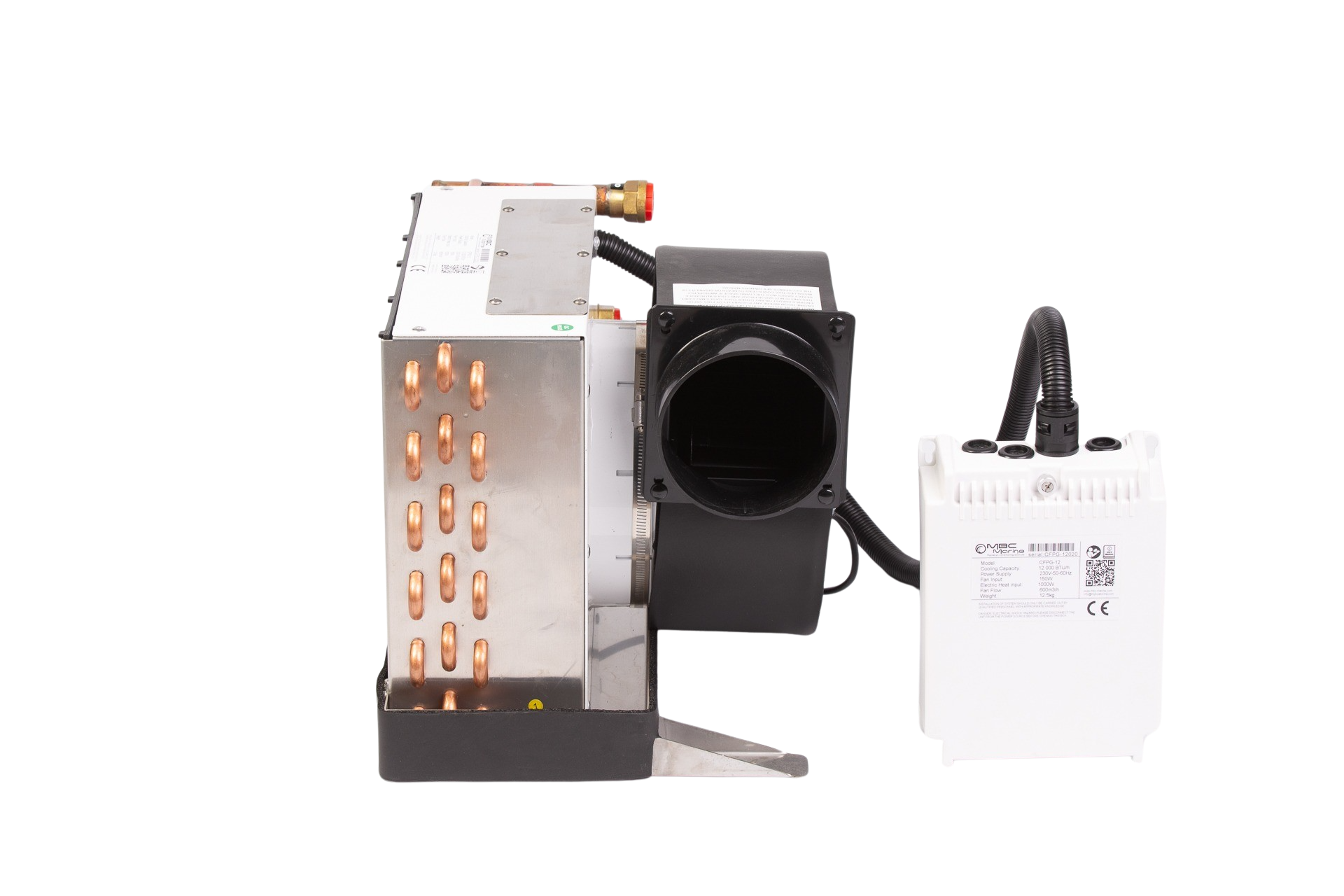

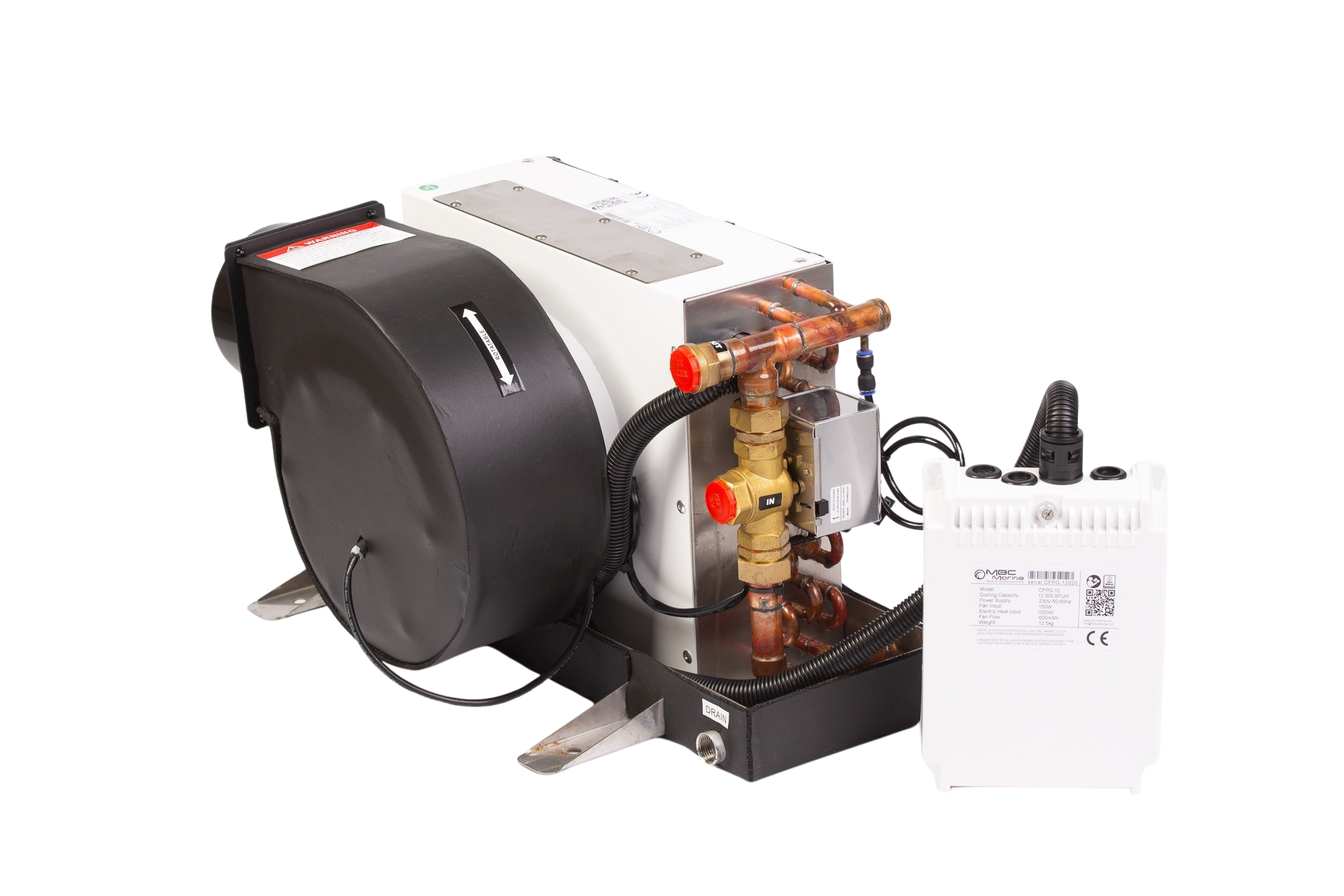

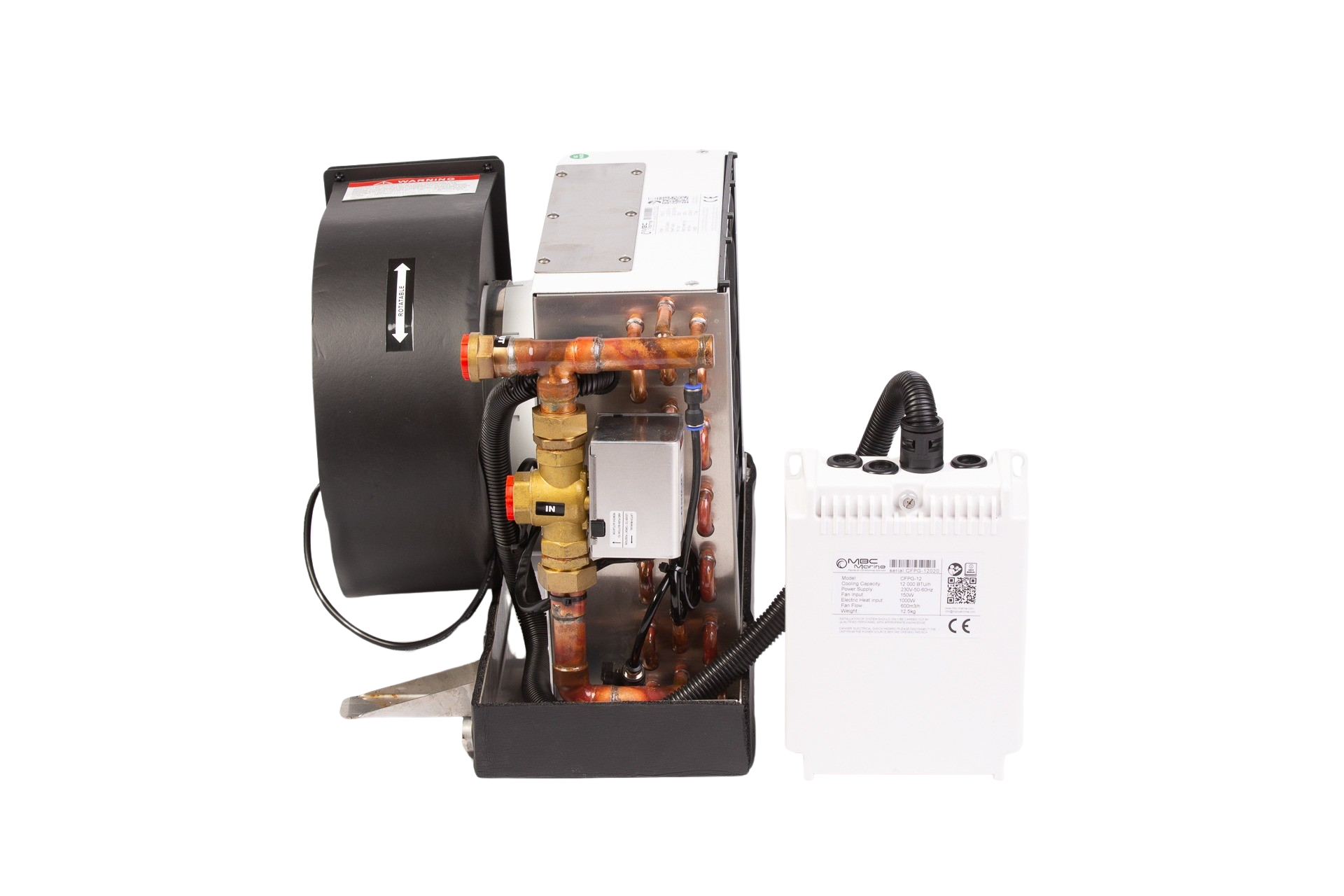

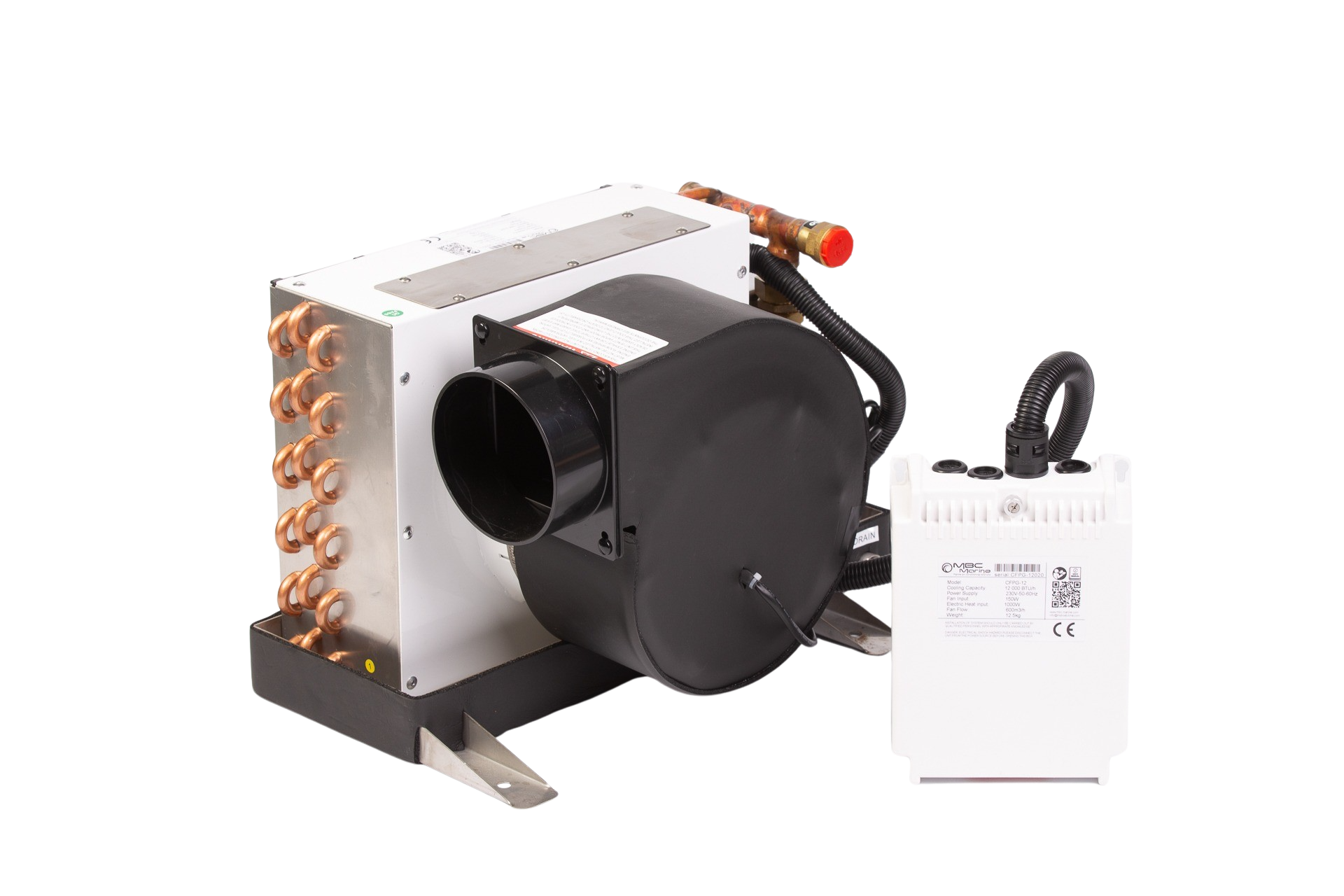

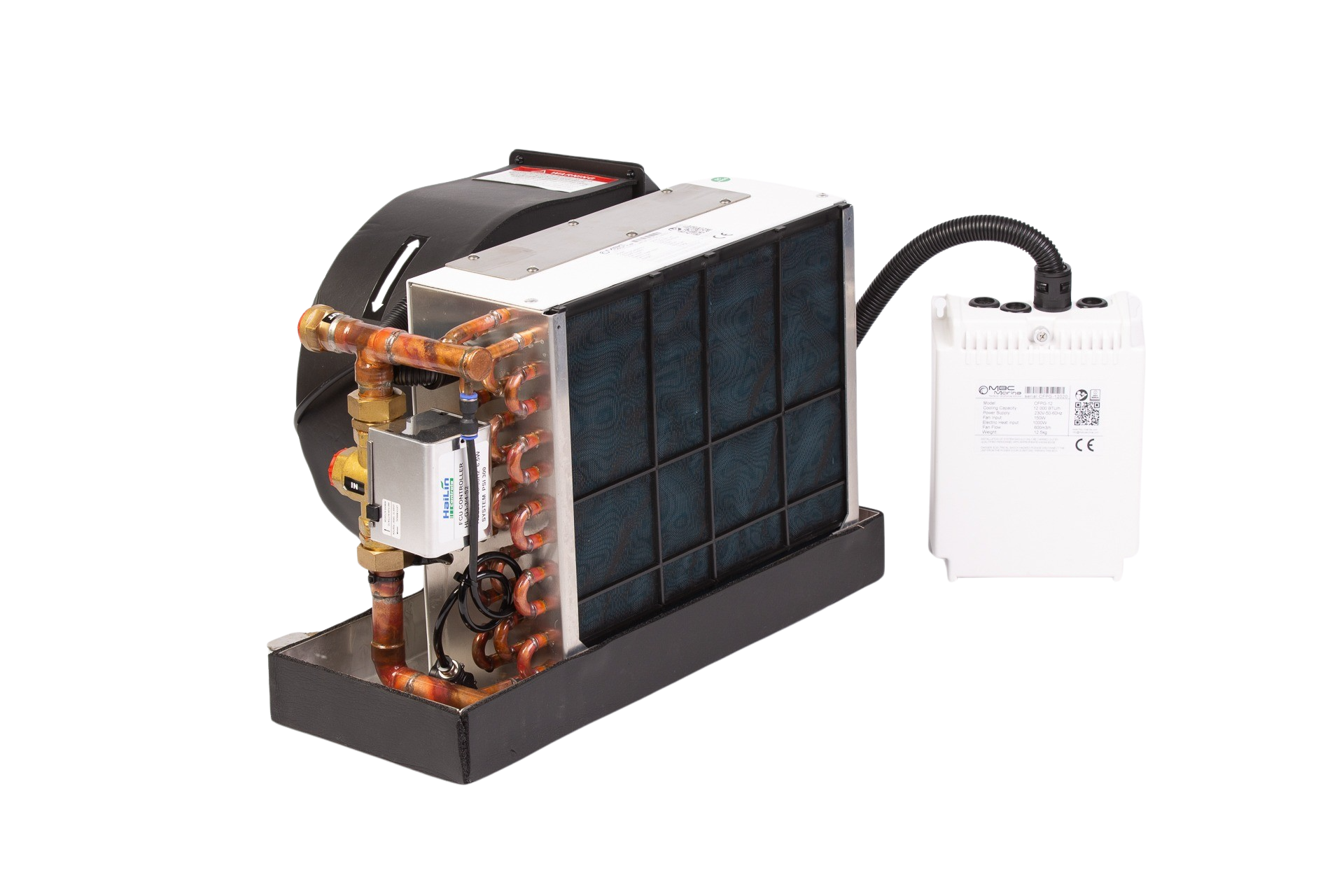

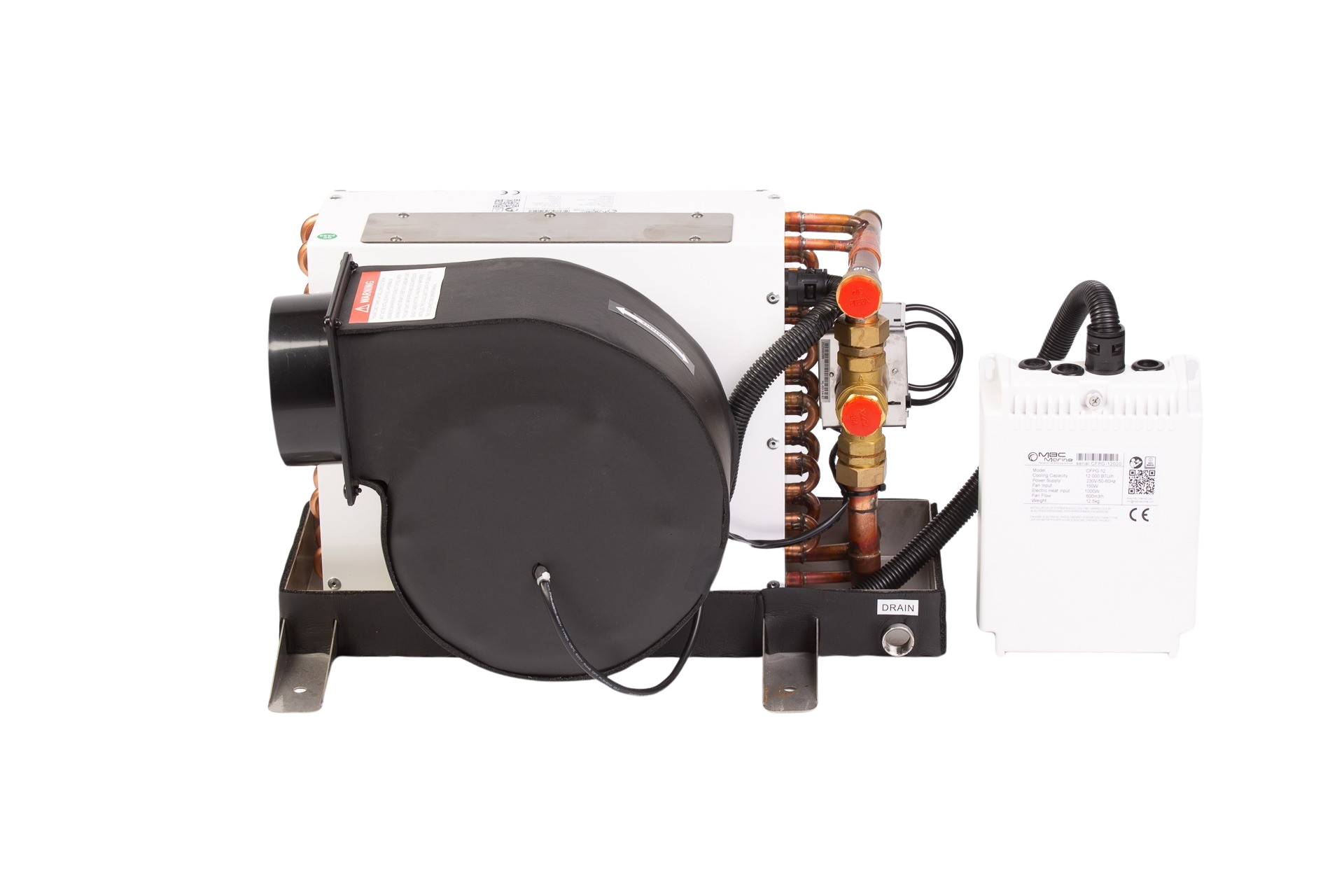

The MBC Marine 12,000 BTU fan coil unit delivers quiet, reliable climate control for mid-sized cabins on boats, yachts, and catamarans. Engineered for chiller systems, it comes equipped with a built-in 1000 W electric heater, FCU controller, digital display, and an integrated flow control valve for precise and energy-saving performance.
Built with an AISI 316 stainless steel condensate tray and corrosion-resistant housing, the 12K unit is designed to withstand harsh marine conditions. Its compact, low-noise design makes it ideal for saloons or cabins where comfort and silence are essential.
Whether for new builds or retrofits, the MBC Marine 12K fan coil unit ensures year-round onboard comfort with minimal maintenance.
Unit Parameters | CFP12 | ||||||
|---|---|---|---|---|---|---|---|
Cooling capacity | Btu/h | 12000 | |||||
Air Flow | m3/h | 630 | |||||
Power source | 230V/50-60Hz | ||||||
Operating Current | A | 0,8 A | |||||
Input power | W | 150 W | |||||
Drain Water Connection size | DN20 | ||||||
Chilled Water Flow | L/min | 11,5 L/min | |||||
Chilled Water Connection Size | 3/4” | ||||||
Width | 850 | ||||||
Dimension of Unit | Height | 195 | |||||
Depth | 475 | ||||||
Net Weight (kg) | 17 kg | ||||||
