Capacity (BTU/h): 12 000 BTU/h
| Voltage / Frequency 230V / 50-60Hz |
Electrical Heater NO Electrical option |
| Warranty 2-year |
Evaporator Material Blue-Fin Coating |
| Basic package includes: | LED Display, FCU Controller, 5m Network cable, Insulation tape |
| Unit Dimensions (cm) W x H x D |
850x195x475 |
| Package Dimensions (cm) W x H x D |
900x220x550 |
| Air Flow: | 630 m3/h |
| UNIT Weight (kg) | 17 kg |
| Shipping Weight (kg) | 19,6kg |
Categories : AC UNITS, Horizontal fan coil
SKU : N/A

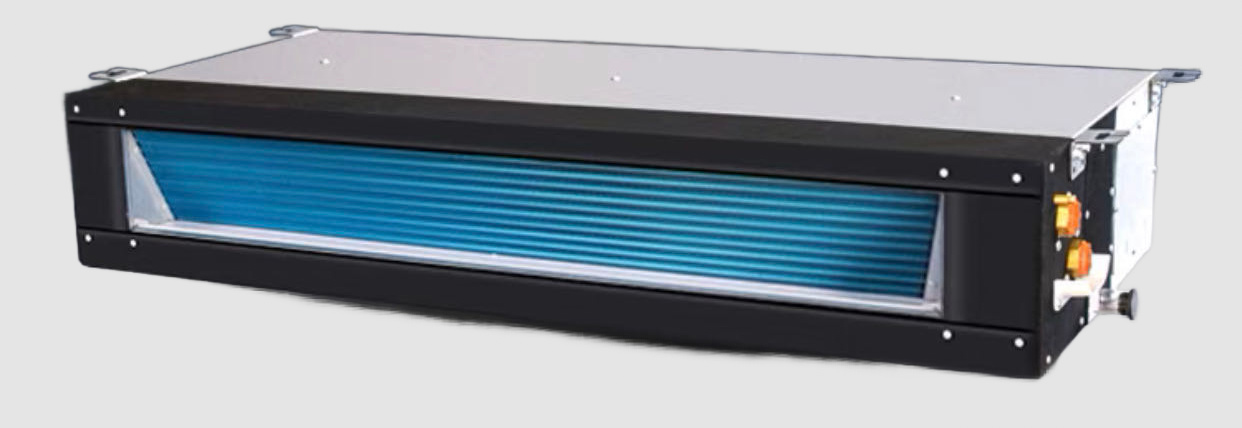

The MBC Marine 12,000 BTU horizontal fan coil unit delivers quiet, reliable climate control for mid-sized cabins on boats, yachts, and catamarans.
Engineered for chiller systems, it comes equipped with an FCU controller, digital display, and an integrated flow control valve for precise and energy-efficient performance.
Built with an AISI 316 stainless steel condensate tray and a corrosion-resistant housing, the 12K horizontal unit is designed to withstand harsh marine conditions.
Its ultra-low-profile horizontal design makes it the ideal solution for installations under ceilings or in floor-level compartments where space is limited.
Whether for new builds or retrofit projects, the MBC Marine 12K horizontal fan coil unit ensures year-round onboard comfort with whisper-quiet operation and minimal maintenance.
Unit Parameters | CFP12 | ||||||
|---|---|---|---|---|---|---|---|
Cooling capacity | Btu/h | 12000 | |||||
Air Flow | m3/h | 630 | |||||
Power source | 230V/50-60Hz | ||||||
Operating Current | A | 0,8 A | |||||
Input power | W | 150 W | |||||
Drain Water Connection size | DN20 | ||||||
Chilled Water Flow | L/min | 11,5 L/min | |||||
Chilled Water Connection Size | 3/4” | ||||||

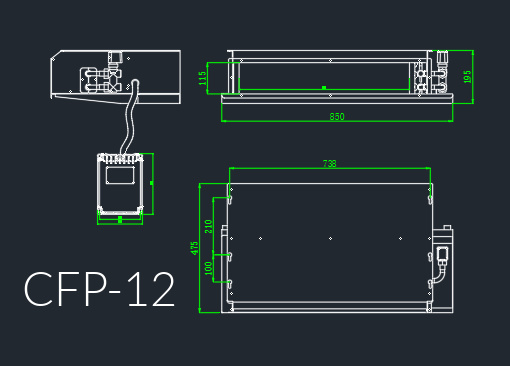

Width | 850 | ||||||
Dimension of Unit | Height | 195 | |||||
Depth | 475 | ||||||
Net Weight (kg) | 17 kg | ||||||
