Capacity (BTU/h): 24 000 BTU/h

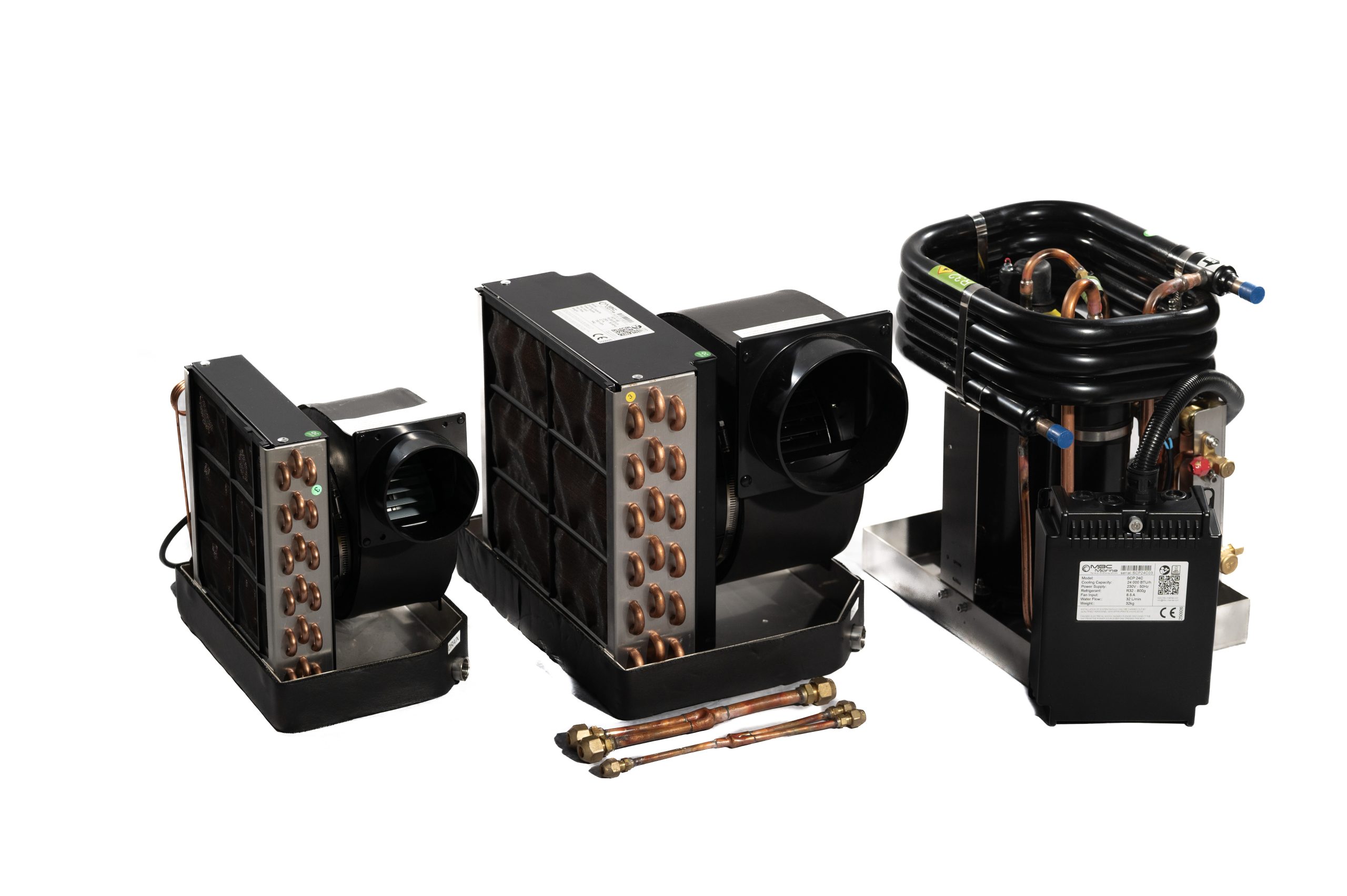

24 000 BTU Compressor + 1x 8 000 BTU 1x 16000 BTU Evaporator
| Voltage / Frequency 230V / 50-60Hz |
Operation Mode Cooling / Heating |
| Warranty 2-year |
Evaporator Material Copper-Fin Coating |
| Basic package includes: | LED Display, 2x Y Pipies, 5m Network cable, Mounting brackets, |
| Possible optionals: | SMART display + Soft Starter |
| Unit Dimensions (cm) H x W x D |
Condenser: 408x250x330 Evaporator: 8000BTU 290x300x240 Evaporator: 16000BTU 355x500x345 |
| Package Dimensions (cm) H x W x D |
|
| UNIT Weight (kg) | Condenser: 52 kg Evaporator: 8000BTU 8kg Evaporator: 16000BTU 14kg |
| Shipping Weight (kg) | 76 kg |
Categories : AC UNITS, SCPM - MULTI SPLIT SYSTEM
SKU : N/A
MBC Marine Multi Split System – Dual Evaporator Marine Split Air Conditioning System
The MBC Marine Multi Split System is an innovative marine air conditioning solution that combines a single high-performance condensing unit (compressor) with two evaporator units. The system is an ideal choice for vessels where simultaneous cooling or heating of two cabins or two conditioned spaces is required, but independent zone control is not necessary, or where excessively long ducting would result in noticeable performance losses.
The system operates with a single central control display that simultaneously manages both evaporators. This ensures simple operation, stable system performance, and optimized load management, while keeping the overall system logic clear and easy to understand for the end user.
Unit Parameters | SCPM 24.000 BTU | ||||
|---|---|---|---|---|---|
Parameter list of Condensing unit | |||||
Cooling capacity | Btu/h | 24 000 | |||
Heating capacity | Btu/h | 26 400 | |||
Power Source | 230 V / 50-60Hz | ||||
Input power (kW) | 1.36 | ||||
Refrigerant | R32 | ||||
Dimension of Condensing unit | Height | 408 | |||
Weight | 250 | ||||
Depth | 330 | ||||
Connection Pipe | Gas | 12.7 | |||
Liquid |
9.52 | ||||
Sea Water Connection Size | 1″ | ||||
Drain Connection Size | DN20 | ||||
Net Weight (kg) | 58 | ||||
Parameter list of Evaporator unit | |||||
Dimension of Evaporator unit | Height | 16 000BTU: 355mm – 8 000BTU: 290mm | |||
Width | 16 000BTU: 345mm – 8 000BTU: 300mm | ||||
Depth | 16 000BTU: 500mm – 8 000BTU: 240mm | ||||
Minimum Air Duct Size (mm) | 16 000 BTU 150mm –
8 000 BTU 100mm | ||||
Input power (W) | 300 | ||||
Connection Pipe | Gas | 12.7 | |||
Liquid | 9.52 | ||||
Drain Connection Size | DN20 | ||||
Net Weight (kg) | 16 000BTU 14kg –
8 000BTU 8 kg | ||||
