Capacity (BTU/h): 8 000 BTU/h
| Voltage / Frequency 230V / 50-60Hz |
Operation Mode Cooling / Heating |
| Warranty 2-year |
Evaporator Material CuNi (Copper Nickel) |
| Basic package includes: | LCD Display 5m Network cable Insulation tape |
| Unit dimension: H x W x D | 320x420x255 cm |
| Package dimension: H x W x D | 520x400x380 cm |
| Unit weight: | 20 kg |
Categories : AC UNITS, VSC units
SKU : N/A

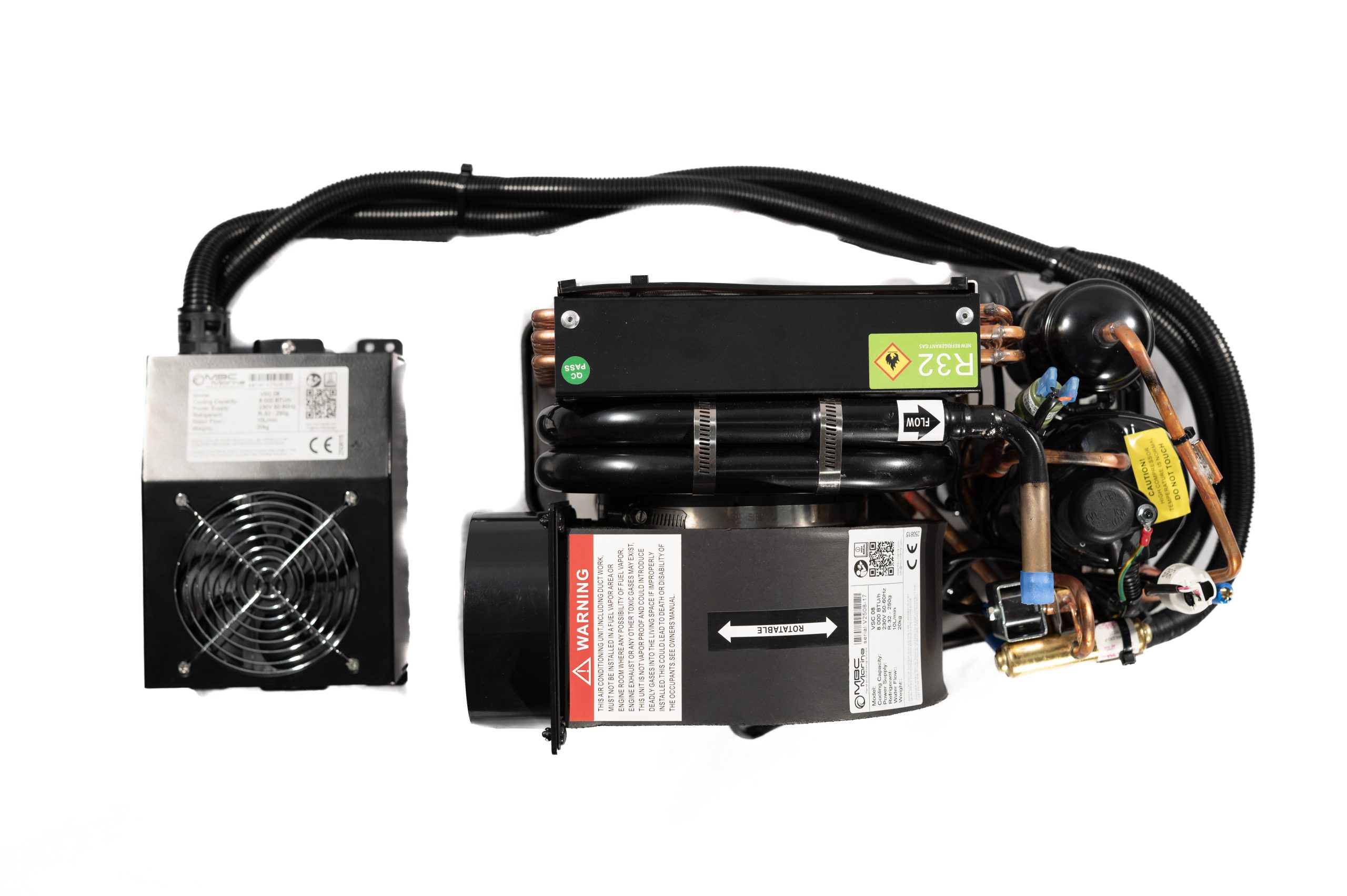

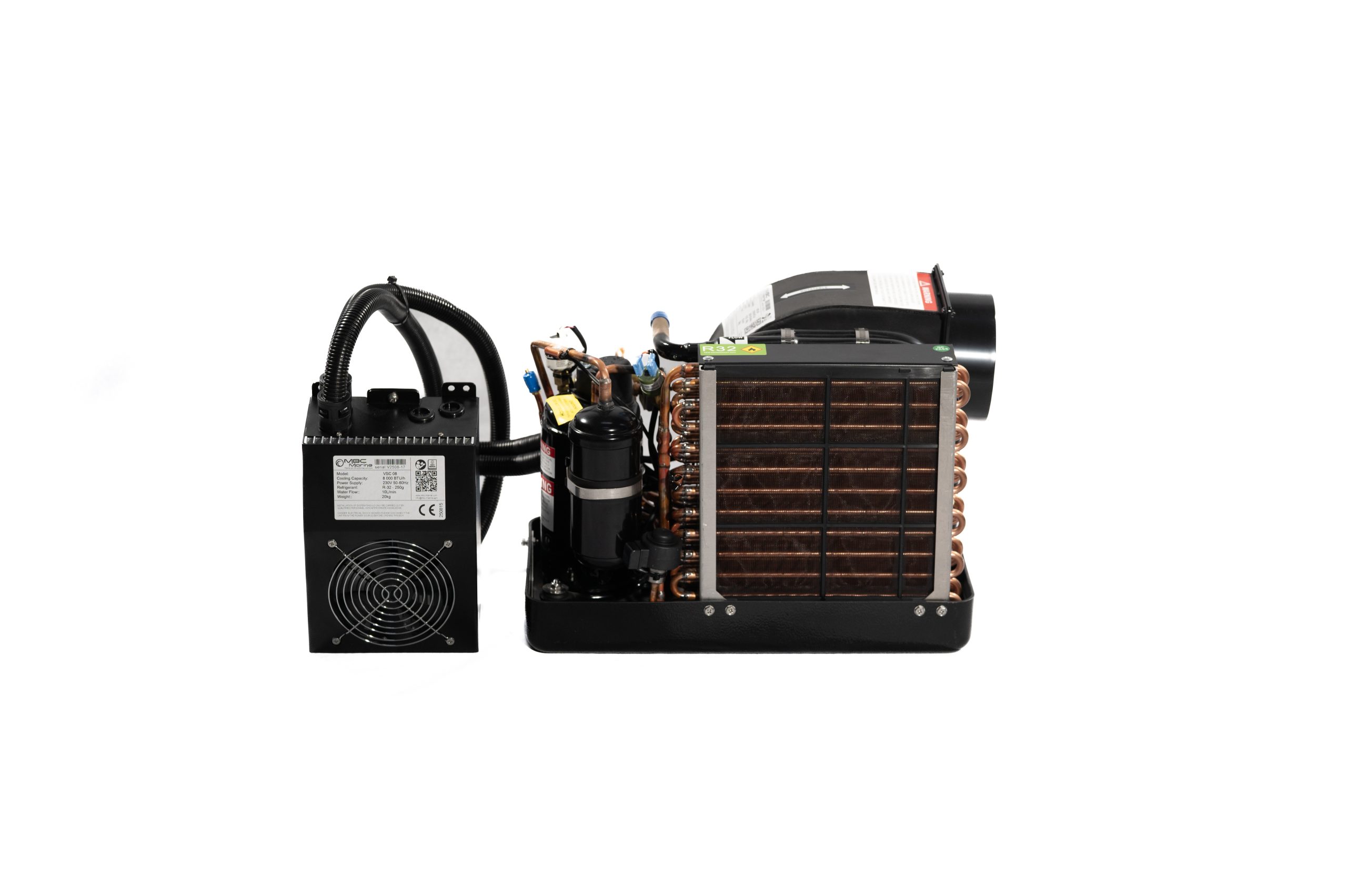

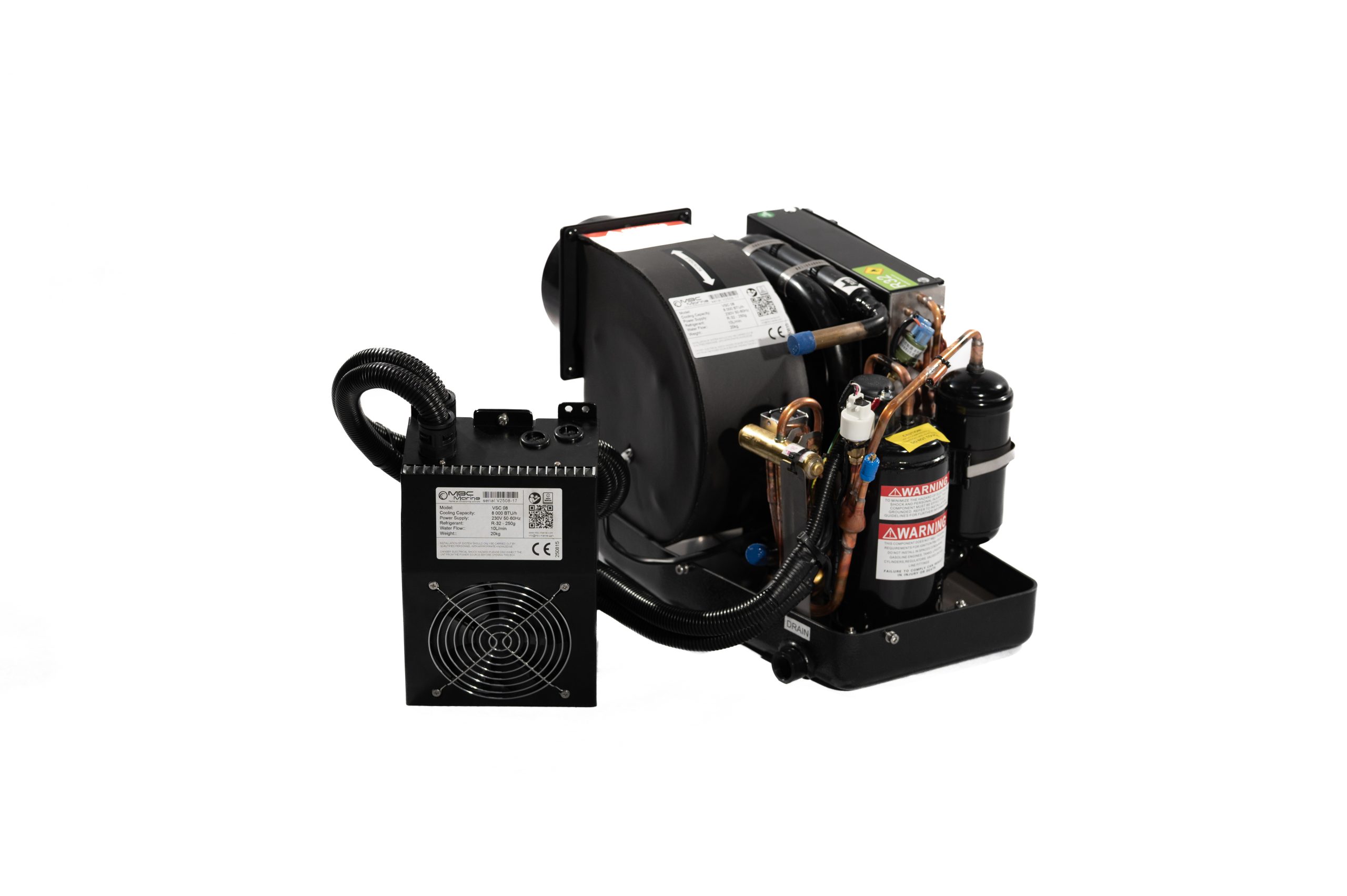

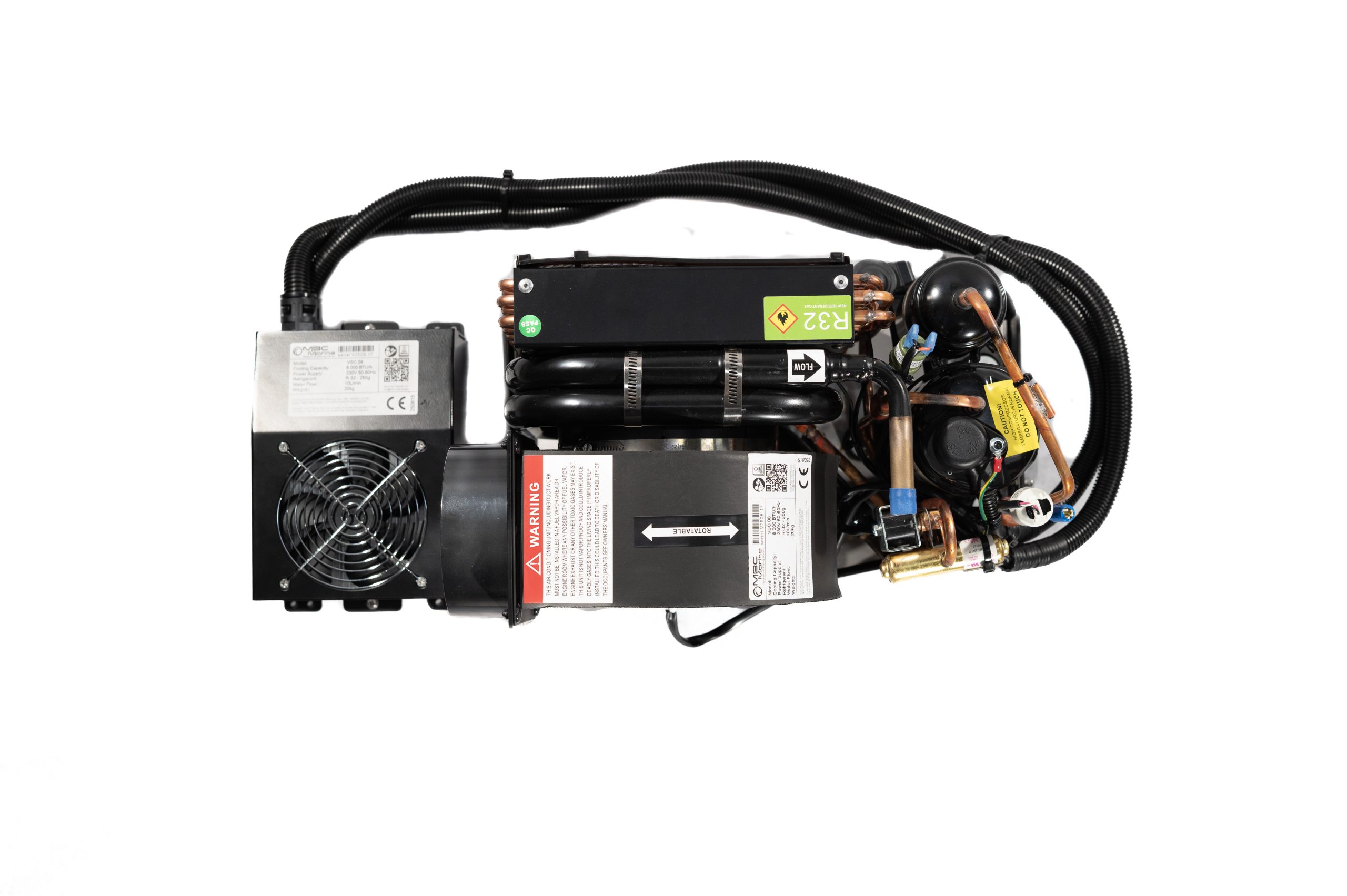

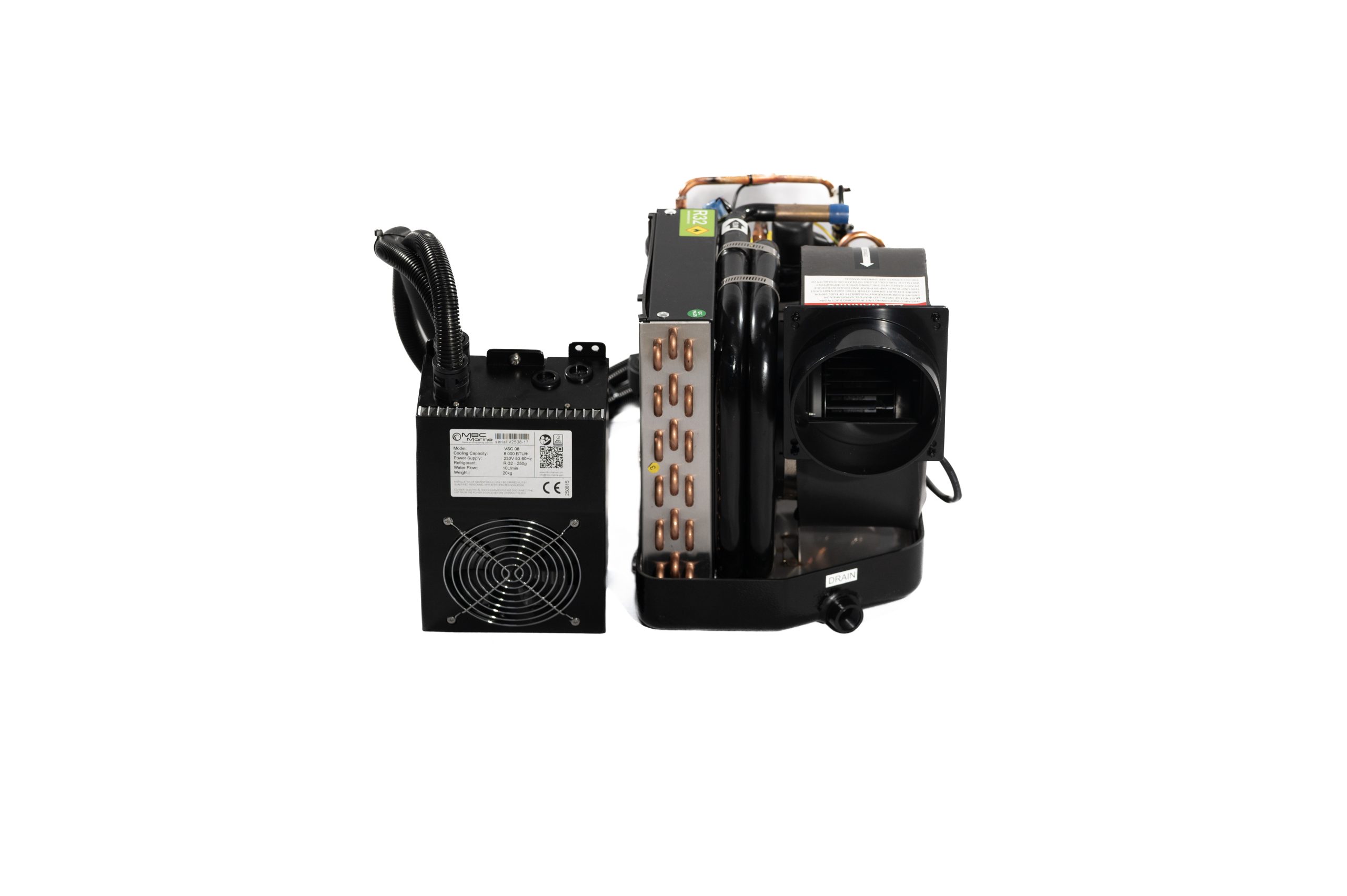

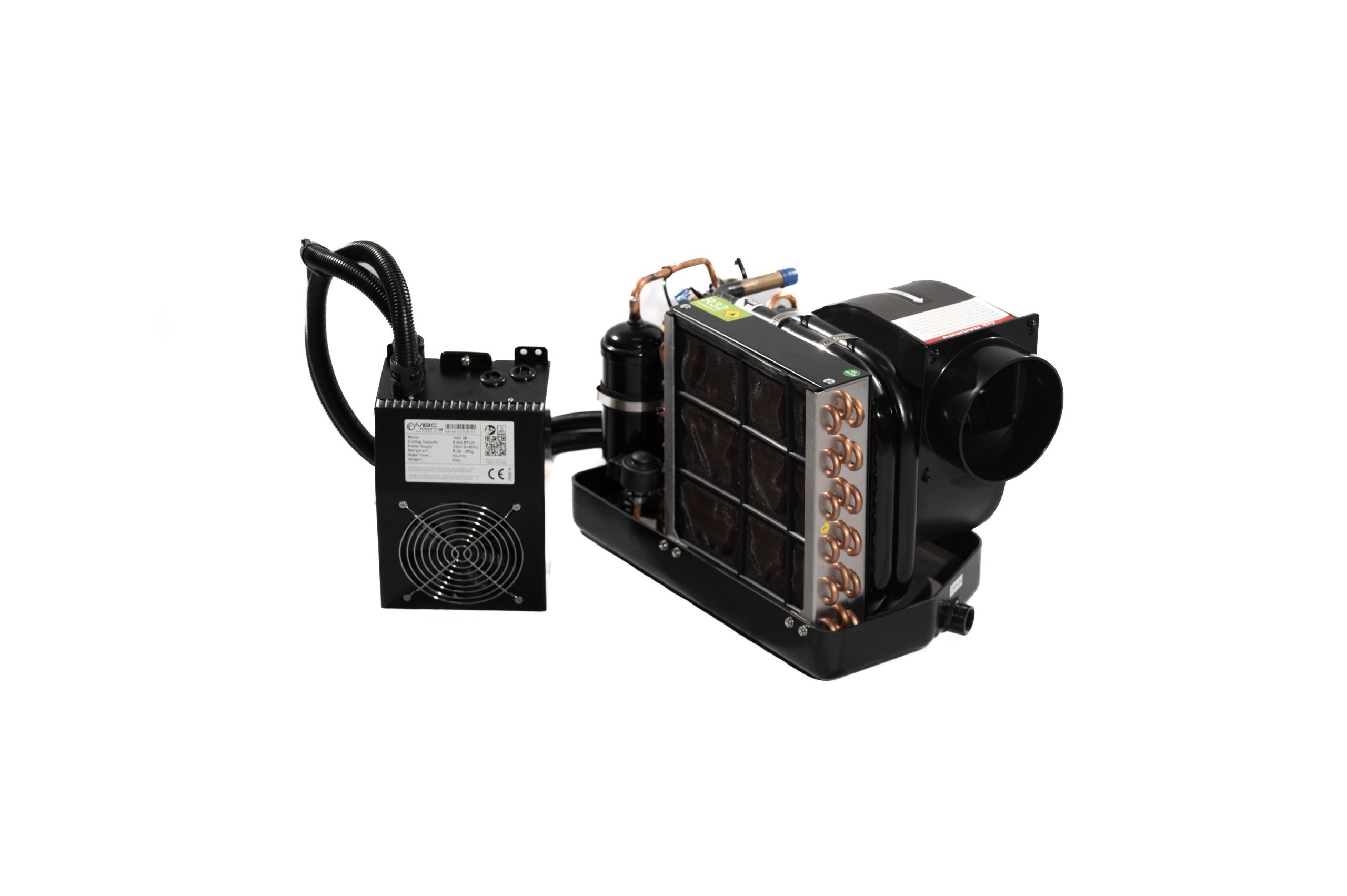

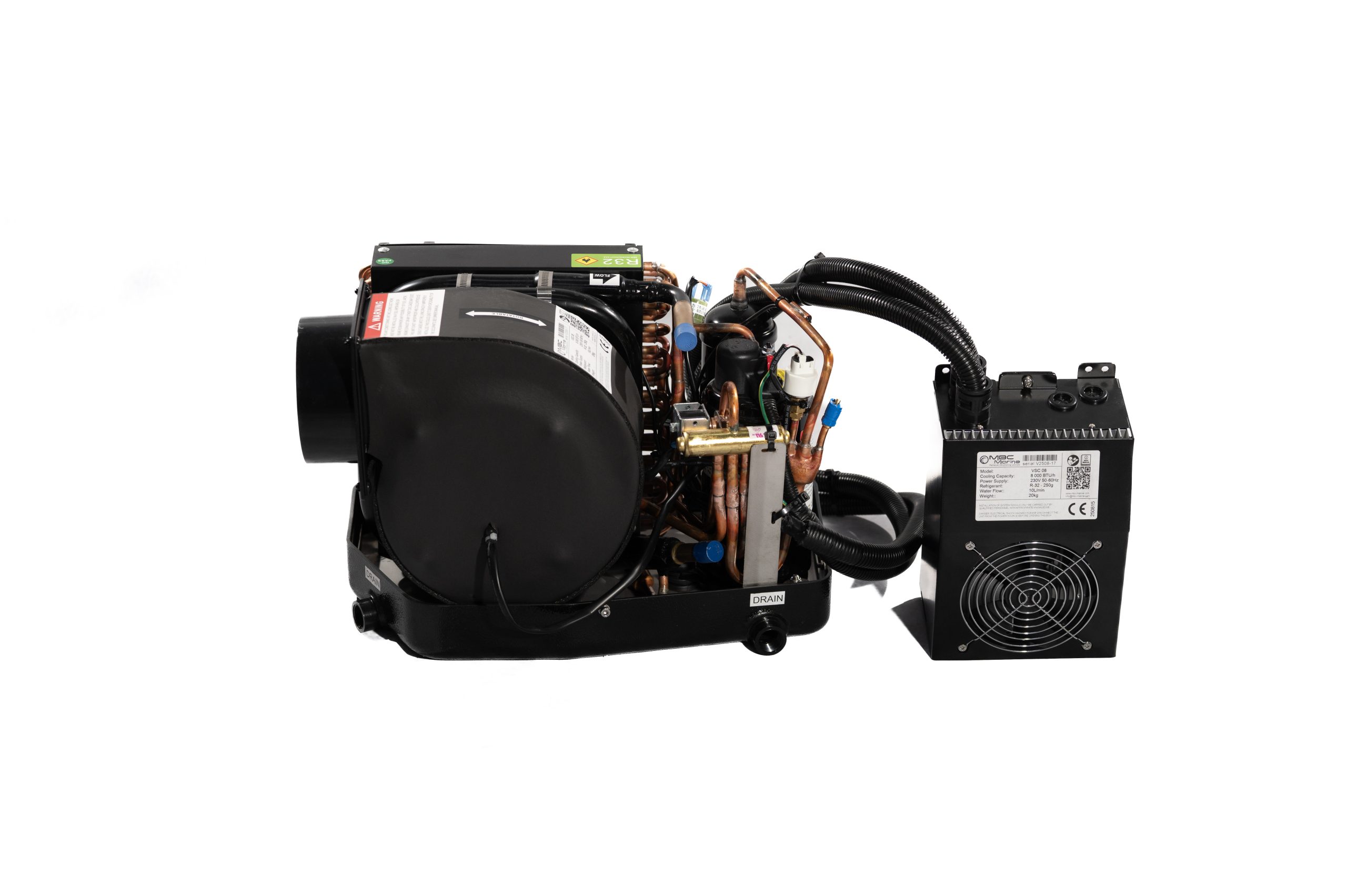

Discover the new MBC Marine VSC 8,000 BTU inverter self-contained unit – the perfect solution for single cabins.
Compact yet powerful, it delivers both cooling and heating with ultra-low power consumption and whisper-quiet operation. Thanks to its advanced inverter technology, the unit adjusts compressor and fan speed in real time, ensuring maximum comfort and energy savings. Built with Copper Fin evaporators and a durable ABS condensation tray, it is engineered for long-lasting performance in harsh marine conditions. With its standard LED display, or the optional Wi-Fi Smart Touch controller, the VSC 8,000 sets a new benchmark for onboard comfort.
Unit Parameters | VSC 08 | ||||||
|---|---|---|---|---|---|---|---|
Cooling capacity | Btu/h | 8000 | |||||
Heating capacity | Btu/h | 8700 | |||||
Power source | 230V/50Hz | ||||||
Input power (kW) | Cooling | 0.74 | |||||
Heating | 0.86 | ||||||
Amp Draw (A) | Cooling | 0,66 – 1,52 | |||||
Heating | 0,76 – 1,75 | ||||||
Air Flow (m3/h) | High | 420 | |||||
Middle | 350 | ||||||
Low | 280 | ||||||
Refrigerant | R32 | ||||||
Dimension | Height | 320 | |||||
Width | 420 | ||||||
Depth | 255 | ||||||
Minimum air Duct Size (mm) | 125 | ||||||
Minimum Return Air Grille Size (cm2) | 300 | ||||||
Minimum Supply Air Grille Size (cm2) | 750 | ||||||
Drain Connection Size | DN20 | ||||||
Sea water pipe | 5/8″ | ||||||
Net Weight (kg) | 20 | ||||||
1 Scoop type Thru-Hull
2 Ball Valve
3 Sea Water Strainer
4 Sea Water Pump
5 A/C Unit
6 Return Air Grille
7 Flexible duct
8 Duct Ring
9 Trasistion Box
10 Supply Air Grille
11 Control Box
12 Starting Booster Outlet
13 Sea Water Outlet
14 Drain Outlet
Professional installation is the key to efficient and safe operation of the equipment so please read the following installation and operating instructions carefully before installing the unit.
