Capacity (BTU/h): 24 000 BTU/h



Voltage / Frequency
230V / 50-60Hz
Operation Mode
Cooling / Heating
Warranty
2-year
Evaporator Material
CuNi (Copper Nickel)

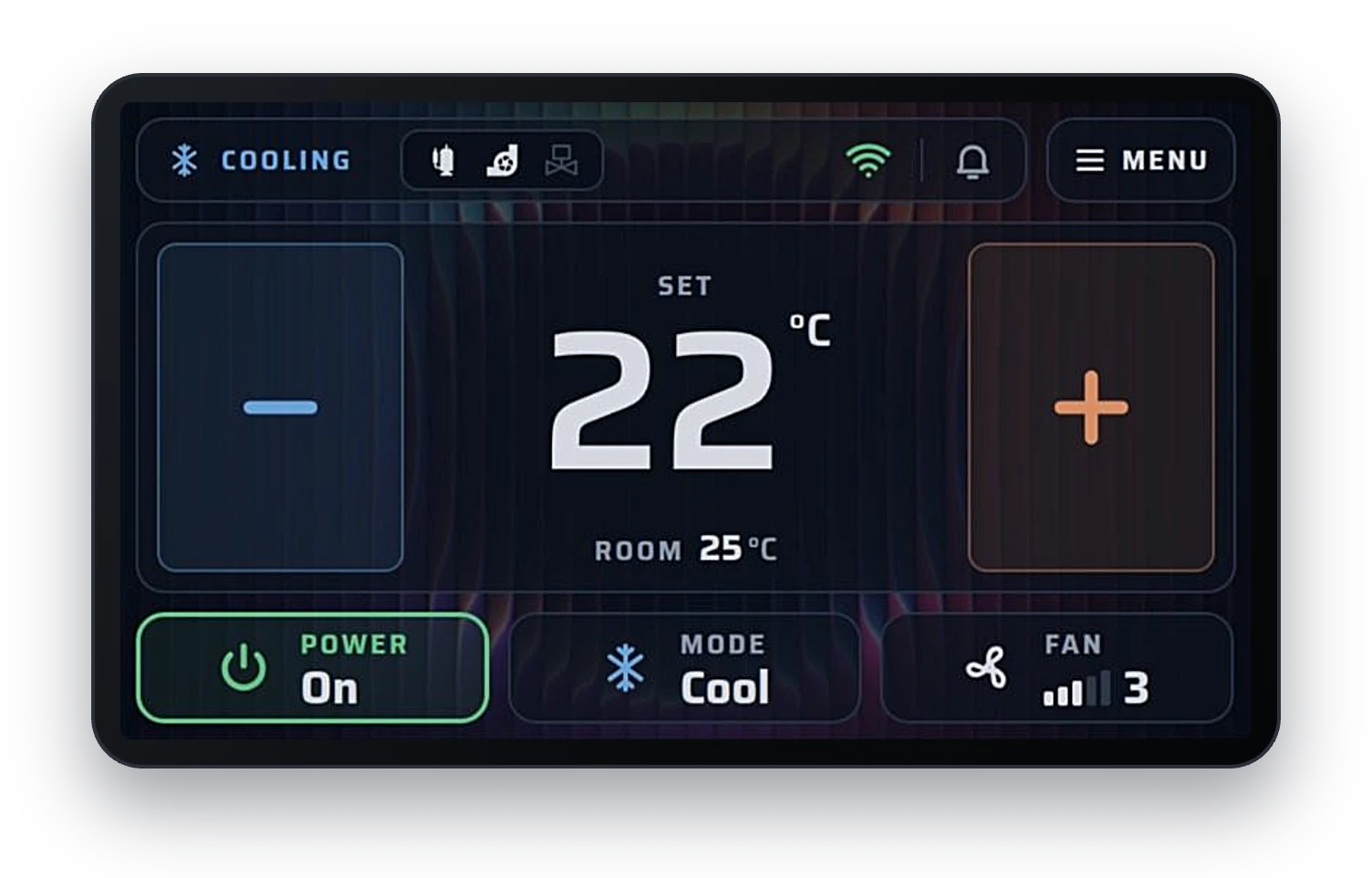

Basic package includes: LED Display
5m Network cable
Insulation tape
Unit dimension:  x W x D 460x570x400 cm
Unit weight: 58 kg
Package dimension: H x W x D 530x710x470 cm



This product is currently out of stock and unavailable.

Categories : ,

SKU : N/A

Description

MBC Marine Air Conditioning Systems: Comfort and Performance at Sea

The MBC Marine VSC 24,000 BTU inverter self-contained air conditioning unit is the perfect choice for larger boats and yachts with three to four cabins. Delivering powerful cooling and efficient heating in one compact design, it ensures whisper-quiet operation and ultra-low power consumption. Thanks to advanced inverter technology, the VSC 24,000 continuously adjusts compressor and fan speed for stable comfort and significant energy savings. Built for long-lasting performance in harsh marine conditions, it features Copper Fin-coated evaporators for superior corrosion resistance and a durable ABS condensation tray for clean, leak-free operation.

With its high output, the VSC 24,000 offers a real alternative to small chiller systems, while being far more cost-effective in terms of installation and operation. Whether on a sailboat, motor yacht, or refit project, this unit delivers premium onboard climate control without the complexity or expense of a central chiller.

Specifications of The A/C Unit

Unit Parameters
SSC 24
Cooling capacity
Btu/h
24000
Heating capacity
Btu/h
26400
Power source
230V/50Hz
Input power (kW)
Cooling
1.75
Heating
2.2
Amp Draw (A)
Cooling
1,98 – 4,55
Heating
2,28 – 5,23
Air Flow (m3/h)
High
1200
Middle
1080
Low
900
Refrigerant
R410A
Dimension
Height
430
Width
690
Depth
448
Minimum air Duct Size (mm)
200
Minimum Return Air Grille Size (cm2)
720
Minimum Supply Air Grille Size (cm2)
1400
Drain Connection Size
DN20
Sea water pipe
5/8″
Net Weight (kg)
58
More parameters
VSC 16

Typical installation

graphics

1 Scoop type Thru-Hull
2 Ball Valve
3 Sea Water Strainer
4 Sea Water Pump
5 A/C Unit
6 Return Air Grille
7 Flexible duct
8 Duct Ring
9 Trasistion Box
10 Supply Air Grille
11 Control Box
12 Starting Booster Outlet
13 Sea Water Outlet
14 Drain Outlet

Play Video

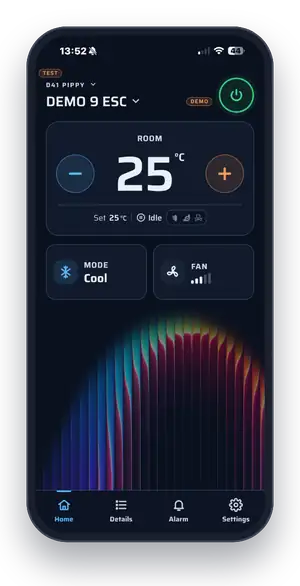

MBC Marine Smart Connect

mobil_appsccreen

MBC Marine units are engineered for maximum efficiency: the smart separation of the evaporator, optimized copper piping, and enhanced airflow design ensure stronger cooling, drier cabins, and quieter, more reliable operation.

Cooling Efficient Design at Competitors

CFPG24 – Fan Coil Fan Coil Unit for Chiller Systems

Cooling Efficient Design at MBC Marine

CFPG24 – Fan Coil Fan Coil Unit for Chiller Systems

Installation and user manual for all 230V SSC, ESC units

Professional installation is the key to efficient and safe operation of the equipment so please read the following installation and operating instructions carefully before installing the unit.
