Capacity (BTU/h): 12 000 BTU/h
SMART CONNECT COMPATIBLE · with optional Smart Touch controller
| Voltage / Frequency 24V DC |
Operation Mode Cooling / Heating |
| Warranty 2-year |
Evaporator Material Copper Fin – copper tubes, coated copper fins |
| Basic package includes: | LED Display, 5m Network cable, Mounting brackets, Insulation tape |
| Possible optionals: | SMART display Smart Touch controller – touch screen + Wi-Fi for Smart Connect app control ECO mode: 25–40% lower power consumption (depending on operating conditions) |
| Unit Dimensions: H x W x D | 300x480x285 (mm) |
| Package Dimensions: W x H x D | 650x410x460 (mm) |
| UNIT Weight (kg) | 22kg |
| Shipping Weight (kg) | 24,6kg |
Categories : AC UNITS, SDC units
SKU : N/A
Compact 24V Marine Air Conditioning – Power-Efficient Comfort from MBC Marine
Stay cool at sea – even without shore power. The MBC Marine DC air conditioner delivers reliable, energy-efficient climate control for small cabins on sailboats, powerboats, and catamarans.
With a compact self-contained design and 360° rotatable blower, the unit allows for flexible installation in tight spaces. The copper fin evaporator ensures excellent heat transfer and corrosion resistance, while the washable air filter keeps the cabin air fresh and clean.
Designed specifically for marine conditions, the unit features a durable ABS plastic base tray for long-term corrosion protection and efficient condensate drainage for hassle-free operation. Every unit is factory-tested and pre-charged with eco-friendly refrigerant, so it’s ready to run right out of the box.
Upgrade to the optional SMART Connect touchscreen controller for remote operation via Wi-Fi and activate ECO mode to reduce power consumption by 25–40% (depending on operating conditions)—perfect for off-grid cruising.
The SDC24-12000 is engineered for maximum efficiency, making it one of the most power-conscious marine air conditioning units on the market today.
Optional · Smart Connect
Add the Smart Touch controller and connect this unit to MBC Marine Smart Connect: set temperature and mode remotely, receive fault notifications, give charter guests access to their own cabin and get remote support from your dealer. Learn more about Smart Connect →
App coming soon
Unit Parameters | SDC 24-12000 | ||||||
|---|---|---|---|---|---|---|---|
Power Supply | Direct Current | DC24V | |||||
COOLING | |||||||
Capacity | BTU/h | 12000 | |||||
Rated power | kW | 0.72 | |||||
Rated current NORMAL mode * | A | 18-20 | |||||
Rated current ECO * | A | 10-14 | |||||
HEATING | |||||||
Capacity | BTU/h |
13000 | |||||
Rated power | kW |
0.8 | |||||
Rated current NORMAL mode * | A | 40-42 | |||||
Rated current ECO mode * | A | 22-24 | |||||
Seawater flow | m3/h | 0.9 | |||||
Air flow | m3/h | 450 | |||||
Dehumidification | L/h | 1.2 | |||||
Noise level | dB(A) | 50 | |||||

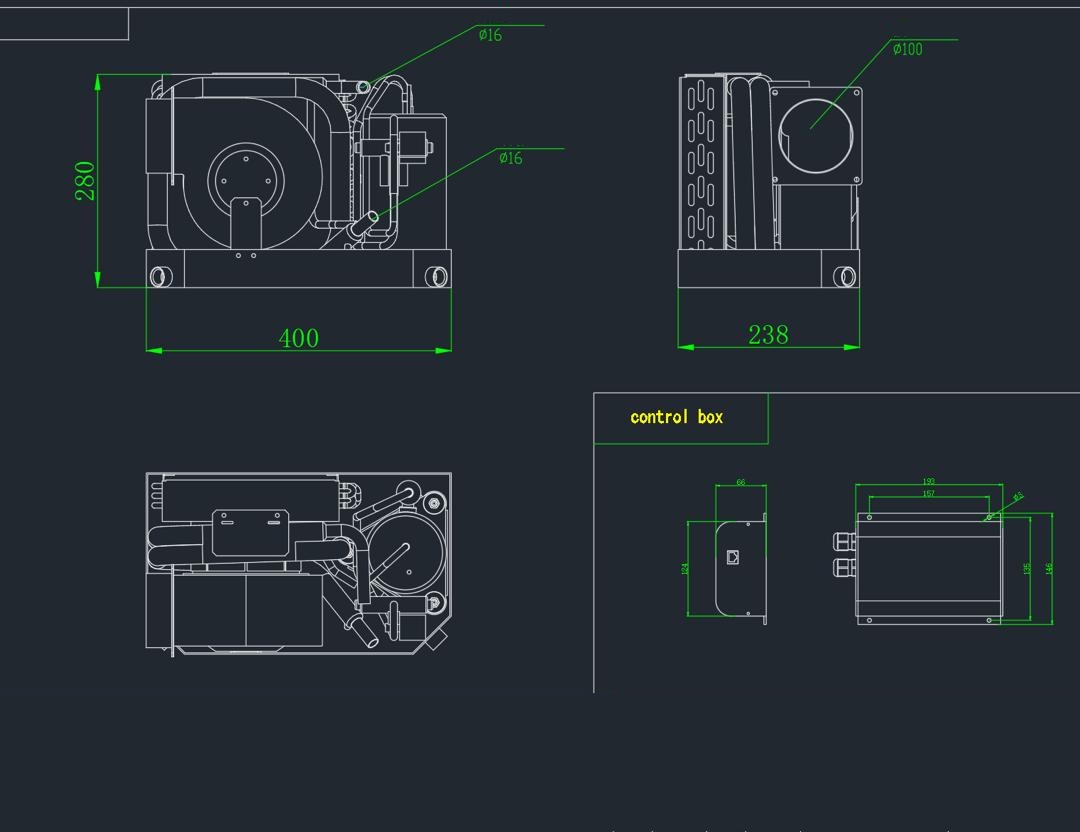

Width | mm | 480 | |||||
Height | mm | 300 | |||||
Depth | mm | 285 | |||||
Weight | kg | 23 | |||||
Refrigerant type | R134A | ||||||
Air duct Diameter | mm | 125 | |||||
Sea water pipe Diameter | mm | 16 | |||||
* Note: DC power consumption varies with seawater temp, humidity, power quality, wiring, and ventilation. Rated values assume normal conditions.
Professional installation is the key to efficient and safe operation of the equipment so please read the following installation and operating instructions carefully before installing the unit.
Smart Connect compatible
With the optional Smart Touch controller, this unit connects to MBC Marine Smart Connect: remote control from your smartphone, fault notifications, Guest Mode for charter guests and remote support from your dealer.
App coming soon
