Capacity (BTU/h): 16 000 BTU/h



Voltage / Frequency
230V / 50-60Hz
Operation Mode
Cooling / Heating
Warranty
2-year
Evaporator Material
CuNi (Copper Nickel)
Basic package includes: SMART Display, 5m Network cable, Mounting brackets, Insulation tape
Possible optionals: Soft Starter
Unit Dimensions (cm)
H x W x D
360x510x320
Package Dimensions (cm)
H x W x D
660x420x460
UNIT Weight (kg) 30kg
Shipping Weight (kg) 34,2kg



Categories : ,

Description

Experience the Next Level of Marine Comfort with MBC Marine VSC Units!

Step into the future of onboard climate control with our VSC inverter self-contained marine air conditioning units, designed to provide unmatched comfort, efficiency, and quiet operation. Built to meet the challenges of demanding marine conditions, the VSC series features advanced inverter technology, which continuously adjusts both compressor and fan speed for optimal performance, energy savings, and silent operation — whether you’re cooling a single cabin or multiple spaces.

These next-generation systems are equipped with Blue Fin-coated evaporators for enhanced corrosion resistance and long-term performance in salt-laden air. The durable ABS condensation tray provides excellent resistance to corrosion and impact, simplifying maintenance and ensuring clean, leak-free operation over time. With inverter-driven heat pump functionality, the VSC units offer powerful cooling and heating in one compact, efficient package — available in five sizes ranging from 8,000 to 24,000 BTU/h.

Each MBC Marine VSC unit comes standard with a 3″ LED display for clear, straightforward control.

As an option, units can be equipped with our Smart Touch digital controller — a 4.3-inch Wi-Fi-enabled touchscreen that offers full remote access and intuitive onboard management.
With this advanced control system, you can fine-tune temperature and fan speed settings with precision — whether you’re on board or adjusting remotely from your phone or tablet.

Whether at anchor or underway, the MBC Marine VSC Series sets a new standard in marine air conditioning — delivering intelligent performance, ultra-low power consumption, and the comfort you expect from a premium onboard system.

Specifications of The A/C Unit

Unit Parameters
ESC16
Cooling Capacity
BTU/h
16000
Heating capacity
BTU/h
17600
Power source
230V/50Hz
Amp Draw(A)
Cooling
5.1
Heating
6.5
Air flow m3/h
High
730
Middle
610
Low
520
Refrigerant
R32

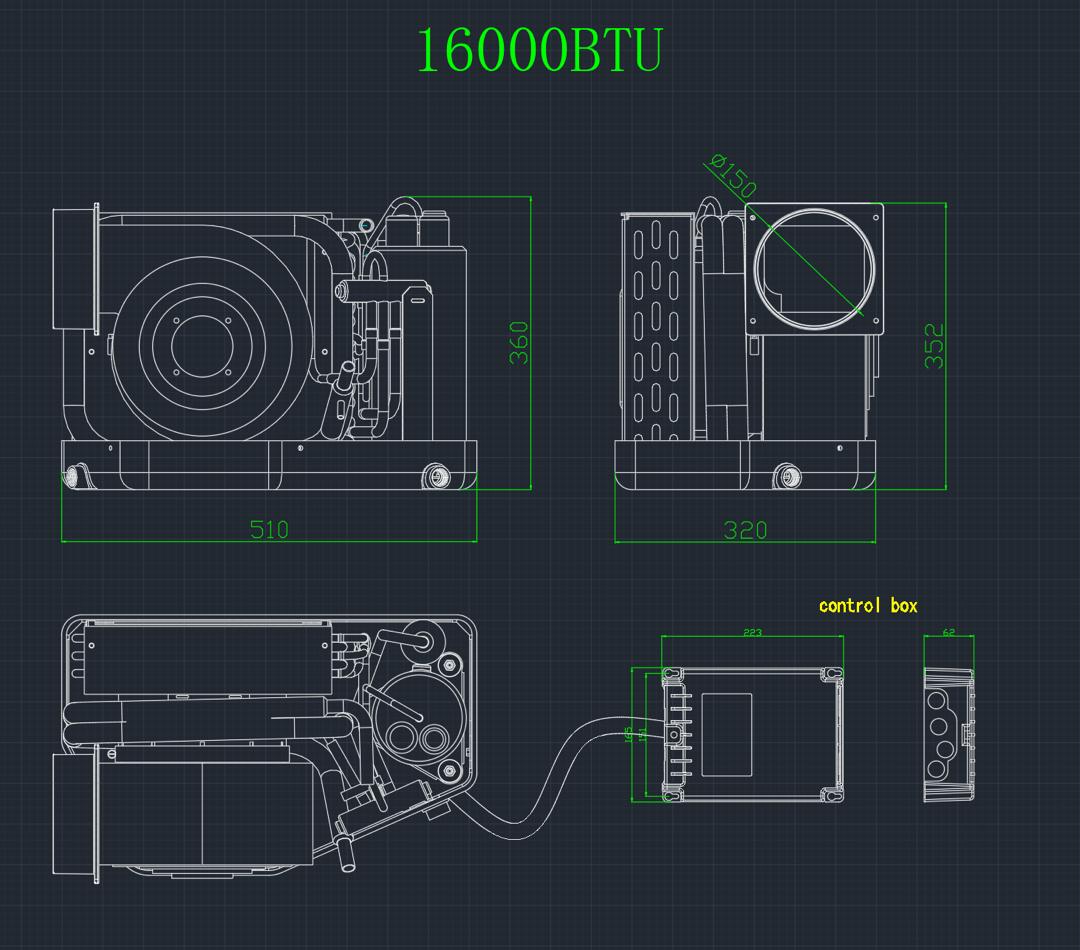

Dimension
Height
360
Width
510
Depth
320
Refrigerant Air Duct Size (mm)
150
Minimum Return Air Grille Size (cm2)
510
Minimum Supply Air Grille Size (cm2)
1030
Drain Connection Size
DN20
Seawater pipe
5/8″
Net Weight (kg)
28.5
More parameters
ESC16 – 16000 BTU
Play Video

MBC Marine Smart Connect

mobil_appsccreen

MBC Marine Smart Connect

Experience Ultimate Comfort on Your Boat with MBC Marine Smart Connect.

Ensure the perfect temperature and fresh air supply for your boat anytime, anywhere with the MBC Marine Smart Connect.

Imagine the convenience: Whether you’re at the office or waiting at a red light, you can set your boat’s air conditioning to the ideal temperature before you even step on board.

With just a few taps on your smartphone, connect to your boat’s air conditioning system via the Internet and adjust the settings to your preference—whether it’s cooling or heating mode.

Features:

Remote Control: Manage your boat’s climate from anywhere using your smartphone.

Instant Comfort: Arrive to a boat that’s already at the perfect temperature.

User-Friendly Interface: Easy setup and intuitive controls make it simple to use.



Upgrade to MBC Marine Smart Connect and enjoy unparalleled comfort and convenience on your boat.

Typical installation

graphics

1 Scoop type Thru-Hull
2 Ball valve
3 Sea Water Strainer
4 Sea water pump
5 A/C unit
6 Return Air Grille
7 Flexible duct
8 Duct Ring
9 Transition Box
10 Supply Air Grille
11 Control Box
12 Starting Booster Outlet
13 Sea Water Outlet
14 Drain Outlet
