HC36VFD – 230V 1Ph
HC36VFD – 230V 1Ph
HC36VFD – 230V 1Ph

HC36VFD – 230V 1Ph

Capacity (BTU/h): 36 000 BTU/h



Voltage / Frequency
230V / 50-60Hz
Operation Mode
Cooling / Heating
Warranty
2-year

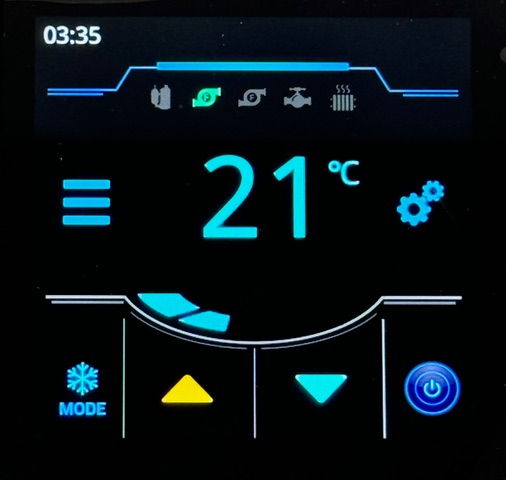

Basic package includes: LED Display, 5m Network cable
Unit Dimensions (cm)
H x W x D
300x465x480
Package Dimensions (cm)
H x W x D
410x710x470
UNIT Weight (kg) 38kg
Shipping Weight (kg) 42Kg



This product is currently out of stock and unavailable.

Categories : , ,

SKU : N/A

Description

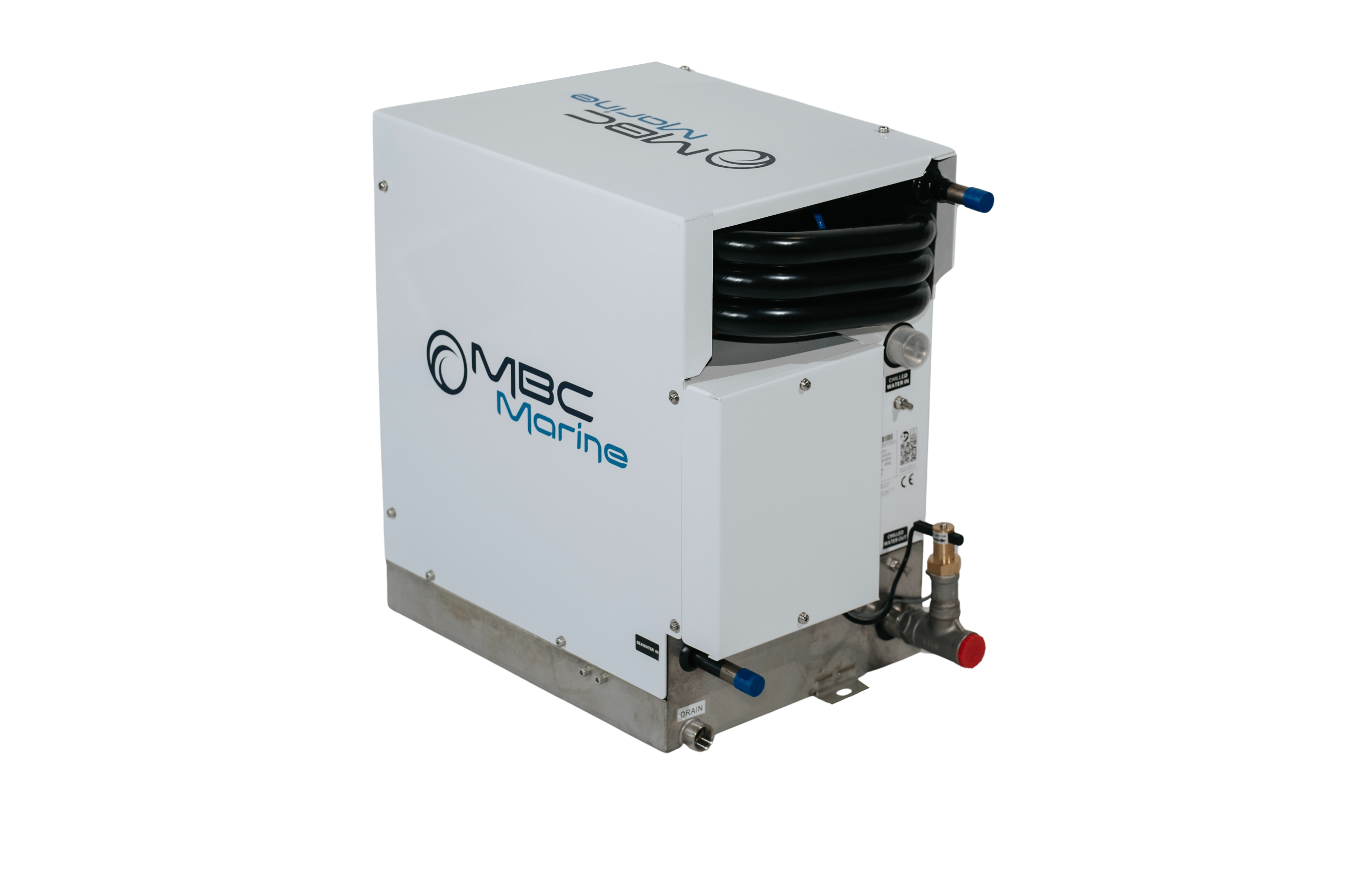

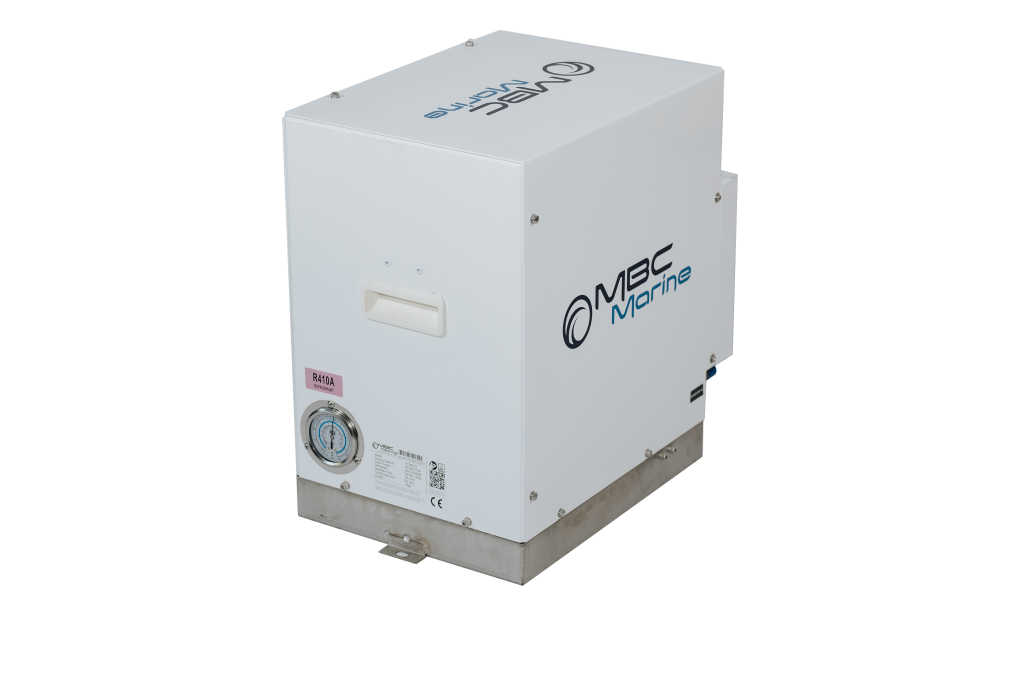

MBC Marine Chiller – Premium Marine Climate Control (36,000 BTU | 230V | 1 Phase)

The MBC Marine Chiller is a compact, energy-efficient climate control system built to perform reliably in demanding marine environments. Featuring variable capacity technology and intelligent control, it delivers precise cooling while optimizing power consumption.

Titanium heat exchangers ensure corrosion resistance and long-term durability, while the powder-coated housing adds protection against harsh conditions. Pre-charged and space-saving, the unit is easy to install and requires minimal maintenance. Integrated diagnostics continuously monitor system performance and provide alerts to prevent downtime.

This 36,000 BTU, 230V single-phase unit is ideal for mid-sized and larger vessels, offering powerful cooling performance in a robust, space-saving design.

Variable capacity marine chillers mark a new era in onboard HVAC technology. By automatically adjusting output to match demand, they provide exceptional efficiency, comfort, and reliability. Though the initial investment is higher, the long-term savings, reduced maintenance, and enhanced onboard comfort make them a smart and future-ready choice.

Specifications of The A/C Unit

Unit Parameters
HC36VFD
Cooling capacity
Btu/h
36000
Power source
230V/50Hz
Amp Draw (A)
Cooling
10 A
Heating
12 A
Sea Water Flow
L/min
33 L/min
Sea Water Connection size
IN
16mm
Sea Water Connection size
OUT
16mm
Chilled Water Connection Flow
L/min
28 L/min
Chilled Water Connection Size
IN
3/4”
Width
300
Dimension of Unit
Height
465
Depth
480
Net Weight (kg)
38kg
More parameters
HC36VFD – 230V 1Ph

Installation and user manual for all Chiller units

Professional installation is the key to efficient and safe operation of the equipment so please read the following installation and operating instructions carefully before installing the unit.
