Capacity (BTU/h): 64 000 BTU/h
| Voltage / Frequency 230V / 50-60Hz |
Operation Mode Cooling / Heating |
| Warranty 2-year |
| Basic package includes: | LED Display, 5m Network cable |
| Unit Dimensions (cm) H x W x D |
300x465x480 |
| Package Dimensions (cm) H x W x D |
710x540x470 |
| UNIT Weight (kg) | 56kg |
| Shipping Weight (kg) |
Categories : AC UNITS, Chiller units, Inverter Chiller Systems - 230V 1 Ph
SKU : N/A

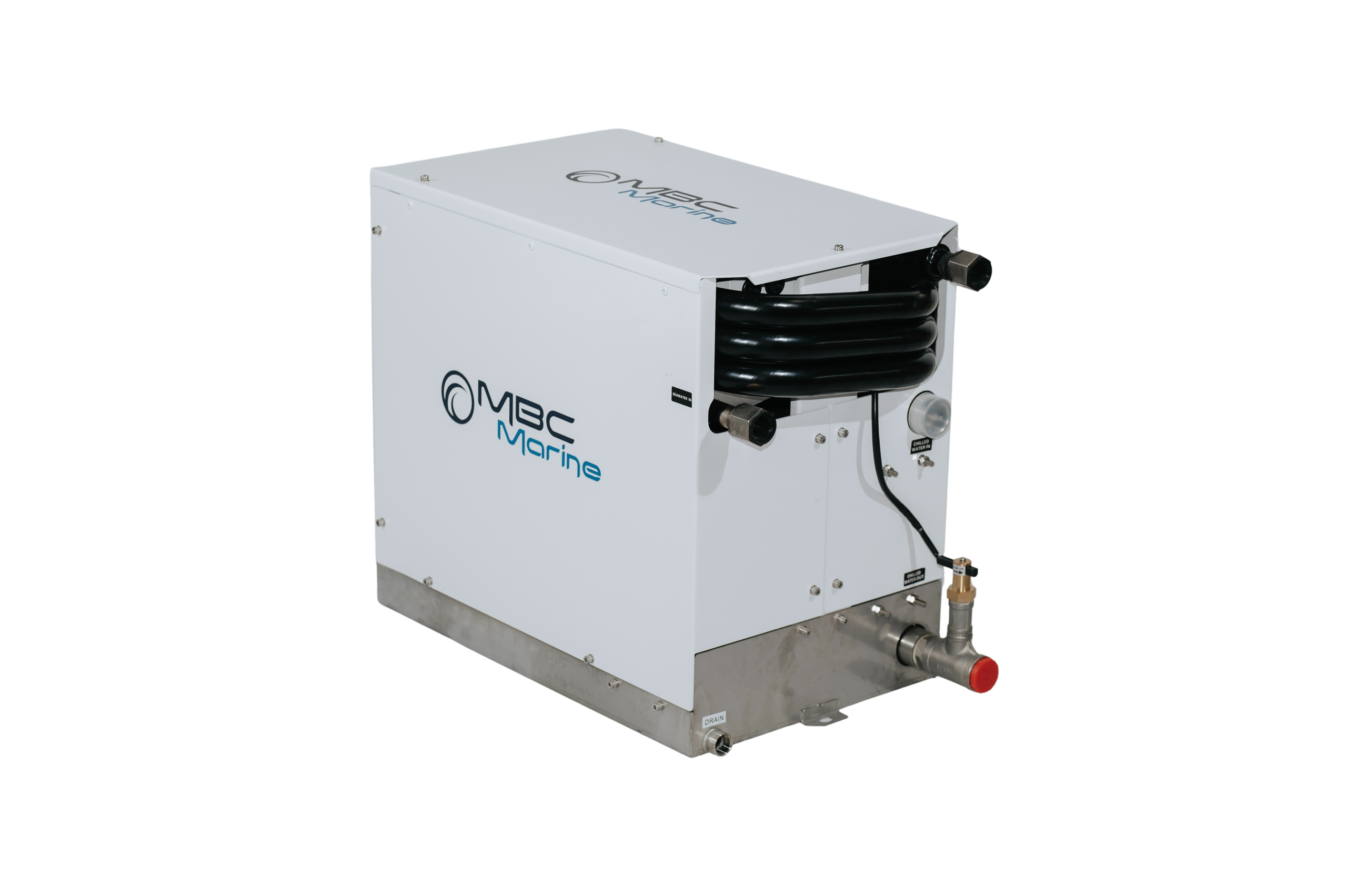

MBC Marine Chiller – Premium Marine Climate Control (64,000 BTU | 230V | 1 Phase)
The MBC Marine Chiller System is a powerful and energy-efficient solution for onboard climate control, designed to perform reliably even under the most demanding marine conditions. Its variable capacity technology continuously adjusts cooling output to meet real-time needs, optimizing energy use while maintaining consistent comfort.
Equipped with titanium heat exchangers for superior corrosion resistance and a durable powder-coated housing, the unit offers long-lasting performance in harsh saltwater environments. Its compact, pre-charged design ensures quick installation and minimal maintenance.
The integrated smart diagnostic system constantly monitors system parameters and delivers real-time alerts to help prevent failures and simplify servicing.
This 64,000 BTU, 230V single-phase model is ideal for larger vessels requiring high-capacity, reliable cooling in a space-saving package.
Unit Parameters | HC64VFD | ||||||
|---|---|---|---|---|---|---|---|
Cooling capacity | Btu/h | 64000 | |||||
Power source | 230V/50-60Hz | ||||||
Amp Draw (A) | Cooling | 18 A | |||||
Heating | 20 A | ||||||
Sea Water Flow | L/min | 55 L/min | |||||
Sea Water Connection size | IN | 3/4” | |||||
Sea Water Connection size | OUT | 3/4” | |||||
Chilled Water Connection Flow | L/min | 36 L/min | |||||
Chilled Water Connection Size | IN | 1” | |||||
Width | 340 | ||||||
Dimension of Unit | Height | 488 | |||||
Depth | 658 | ||||||
Net Weight (kg) | 56kg | ||||||
Professional installation is the key to efficient and safe operation of the equipment so please read the following installation and operating instructions carefully before installing the unit.
