EVERYTHING YOU NEED IN ONE BOX!
For the quick and easy installation of a 12V battery-supplied air conditioning unit!
At the heart of the system is a 12V 100Ah LiFePO4 battery, providing up to 4-6 hours of autonomous operation for the 7,000 BTU unit – without the need for shore power or a generator.

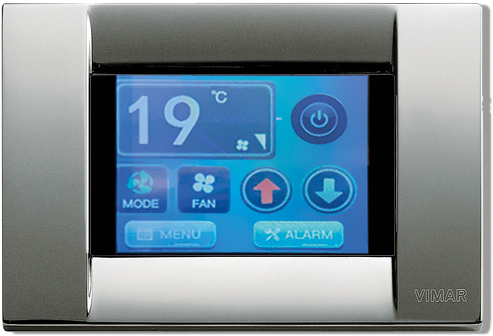

A SMART Display is available as an optional add-on, offering a modern and user-friendly interface for system control. With its built-in ECO mode, you can achieve up to 40% energy savings, making the system even more efficient for off-grid and battery-powered applications.
And if the standard plastic supply and return air grilles don’t match the interior style of your boat, choose the Woodline Edition, which includes real teak or oak grilles – ensuring perfect visual harmony and a premium look.
Unit Parameters | SDC 12-7000 | ||||||
|---|---|---|---|---|---|---|---|
Power Supply | Ph/V/Hz | DC12V | |||||
COOLING | |||||||
Capacity | BTU/h | 7000 | |||||
Rated power | kW | 0.45 | |||||
Rated current NORMAL mode * | A | 20-33 | |||||
Rated current ECO mode * | A | 12-18 | |||||
HEATING | |||||||
Capacity | BTU/h | 8000 | |||||
Rated power | kW | 0.54 | |||||
Rated current NORMAL mode * | A | 22-38 | |||||
Rated current ECO mode * | A | 14-23 | |||||
Seawater flow | m3/h | 0.55 | |||||
Air flow | m3/h | 350 | |||||
Dehumidification | L/h | 0.8 | |||||
Noise level | dB(A) | 50 | |||||
Width | mm | 400 | |||||
Height | mm | 280 | |||||
Depth | mm | 240 | |||||
Weight | kg | 18 | |||||
Refrigerant type | R134A | ||||||
Air duct Diameter | mm | 100 | |||||
Sea water pipe Diameter | mm | 16 | |||||
* Note: DC power consumption varies with seawater temp, humidity, power quality, wiring, and ventilation. Rated values assume normal conditions.
Quantity | Description |
|---|---|
1x | 12V 20A battery charger |
1x | 3 meters thermally insulated air duct |
1x | main switch |
1x | 40A fuse |
1x | fuse box |
2x | 2.5 meter 25mm² power supply cables with cable lugs |
1x | 200×300 mm plastic return air grille |
1x | 100×100 mm plastic supply air grilles |
1x | 3 meters Armoflex seawater pipe |
7x | W4 16-25 stainless steel hose clamps |
1x | 1/2” seawater discharge fitting |
2x | 1/2” male hose connector |
1x | 1/2” female hose connector |
1x | 1/2” ball valve |
1x | 1/2” seawater intake fitting |
1x | MBC AMPS01 seawater strainer |
1x | 12V LiFePo4 100 Ah Battery |
1x | MBC DC 5612E brushless circulation pump |

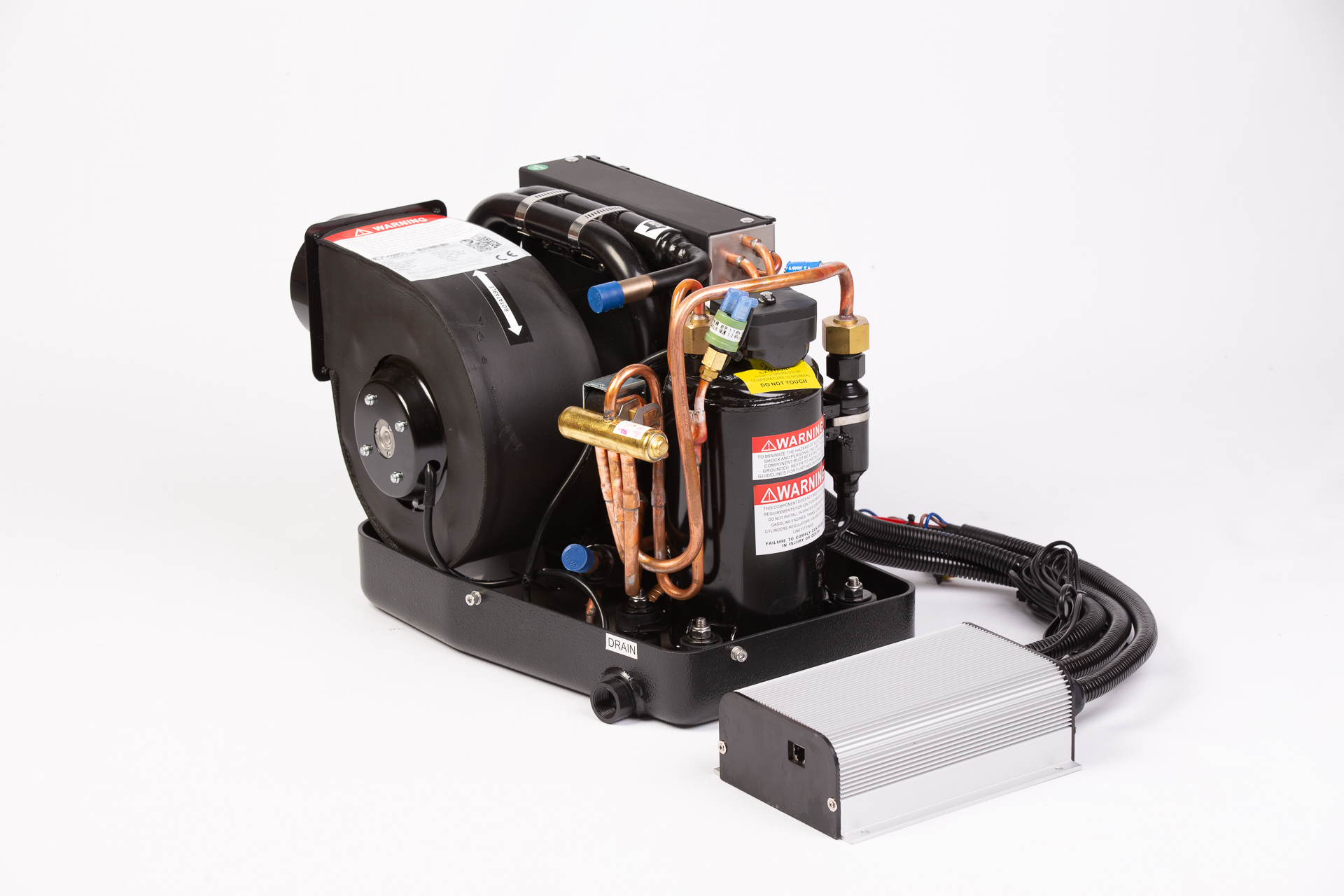

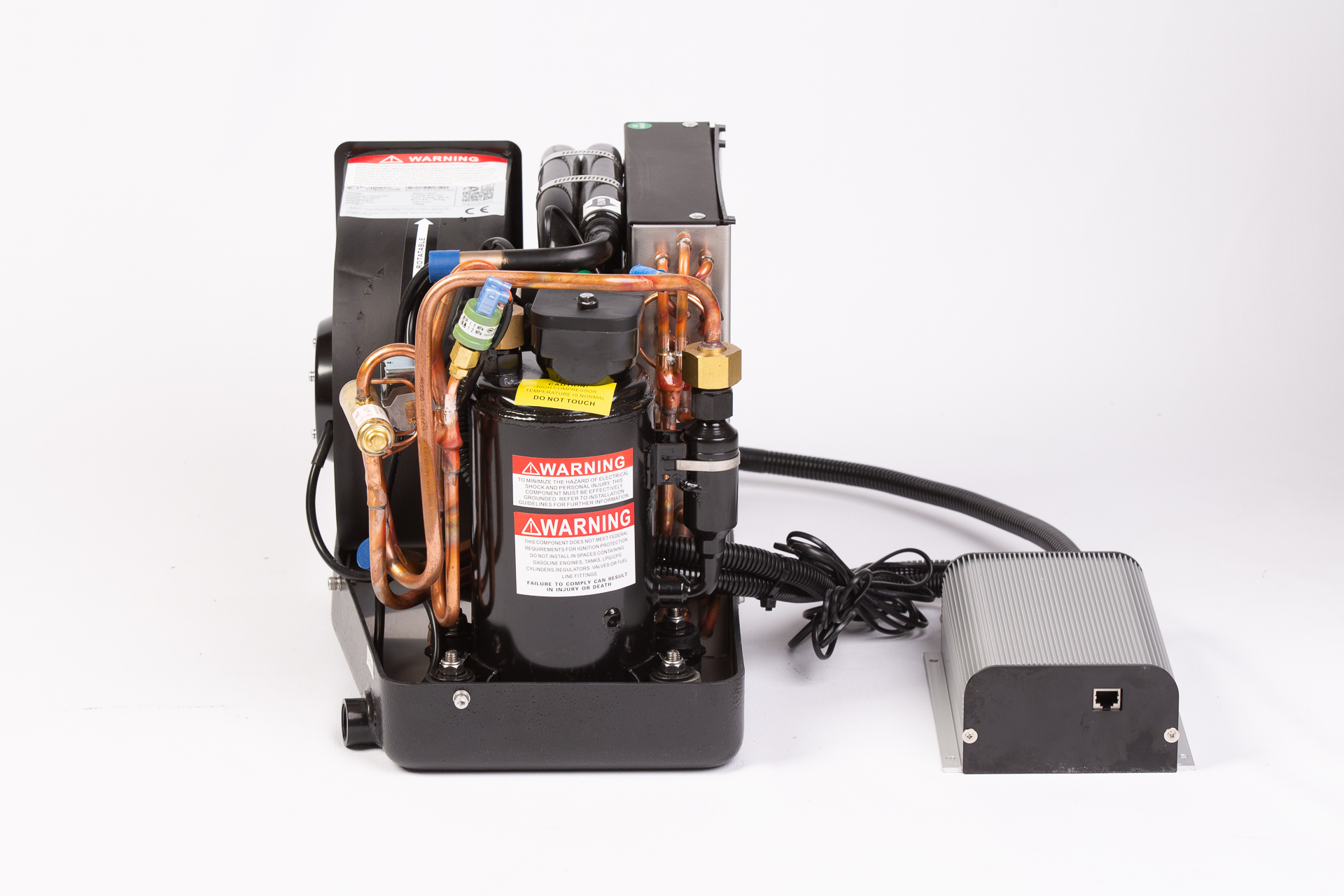

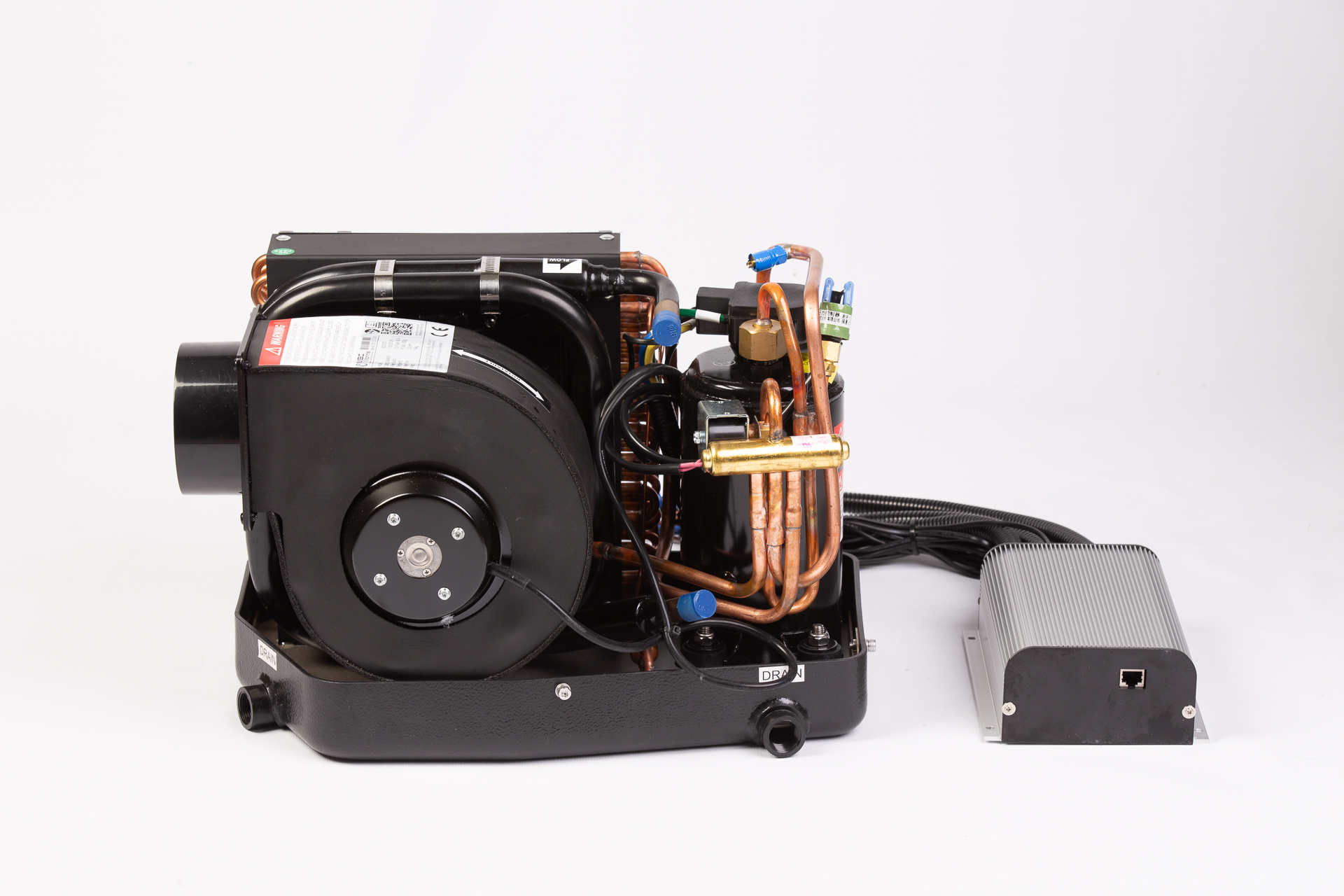

1x | MBC SDC 1207 air conditioning unit (7000 BTU, 12V DC) |
Unit Parameters | SDC 12-7000 | ||||||
|---|---|---|---|---|---|---|---|
Power Supply | Ph/V/Hz | DC12V | |||||
COOLING | |||||||
Capacity | BTU/h | 7000 | |||||
Rated power | kW | 0.45 | |||||
Rated current NORMAL mode * | A | 20-33 | |||||
Rated current ECO mode * | A | 12-18 | |||||
HEATING | |||||||
Capacity | BTU/h | 8000 | |||||
Rated power | kW | 0.54 | |||||
Rated current NORMAL mode * | A | 22-38 | |||||
Rated current ECO mode * | A | 14-23 | |||||
Seawater flow | m3/h | 0.55 | |||||
Air flow | m3/h | 350 | |||||
Dehumidification | L/h | 0.8 | |||||
Noise level | dB(A) | 50 | |||||
Width | mm | 400 | |||||
Height | mm | 280 | |||||
Depth | mm | 240 | |||||
Weight | kg | 18 | |||||
Refrigerant type | R134A | ||||||
Air duct Diameter | mm | 100 | |||||
Sea water pipe Diameter | mm | 16 | |||||
* Note: DC power consumption varies with seawater temp, humidity, power quality, wiring, and ventilation. Rated values assume normal conditions.
Quantity | Description |
|---|---|
1x | 12V 20A battery charger |
1x | 3 meters thermally insulated air duct |
1x | main switch |
1x | 40A fuse |
1x | fuse box |
2x | 2.5 meter 25mm² power supply cables with cable lugs |
1x | 200×300 mm plastic return air grille |
1x | 100×100 mm plastic supply air grilles |
1x | 3 meters Armoflex seawater pipe |
7x | W4 16-25 stainless steel hose clamps |
1x | 1/2” seawater discharge fitting |
2x | 1/2” male hose connector |
1x | 1/2” female hose connector |
1x | 1/2” ball valve |
1x | 1/2” seawater intake fitting |
1x | MBC AMPS01 seawater strainer |
1x | 12V LiFePo4 100 Ah Battery |
1x | MBC DC 5612E brushless circulation pump |
1x | MBC SDC 1207 air conditioning unit (7000 BTU, 12V DC) |
And if the standard plastic supply and return air grilles don’t match the interior style of your boat, choose the Woodline Edition, which includes real TEAK or OAK grilles – for perfect visual harmony and a premium look.
A SMART display is available as an optional add-on, offering a modern and user-friendly interface for system control. With the built-in ECO mode, you can achieve up to 40% energy savings, making the system even more efficient for off-grid and battery-powered setups.
1 Scoop type Thru-Hull
2 Ball valve
3 Sea Water Strainer
4 Sea water pump
5 A/C unit
6 Return Air Grille
7 Flexible duct
8 Duct Ring
9 Trasistion Box
10 Supply Air Grille
11 Control Box
12 Starting Booster Outlet
13 Sea Water Outlet
14 Drain Outlet
Professional installation is the key to efficient and safe operation of the equipment so please read the following installation and operating instructions carefully before installing the unit.
| Model | SDC-12 7000, SDC-24 7000, SDC-24 12000, SDC-48 16000 |
|---|
