Capacity (BTU/h): 16 000 BTU/h
| Voltage / Frequency 48V DC |
Operation Mode Cooling / Heating |
| Warranty 2-year |
Evaporator Material Blue-Fin Coating |
| Basic package includes: | LED Display, 5m Network cable, Mounting brackets, Insulation tape |
| Possible optionals: | SMART display |
| Unit Dimensions: W x H x D | 500x330x315 (cm) |
| Package Dimensions W x H x D | 710x410x470 (cm) |
| UNIT Weight (kg) | 24kg |
| Shipping Weight (kg) | 27,9kg |
Categories : AC UNITS, SDC units
SKU : N/A
Compact 48V Marine Air Conditioning – Efficient 16,000 BTU Cooling from MBC Marine
Stay cool at sea – even when shore power isn’t available. The MBC Marine SDC48-16000 delivers dependable and energy-efficient climate control for larger cabins on sailboats, catamarans, and powerboats.

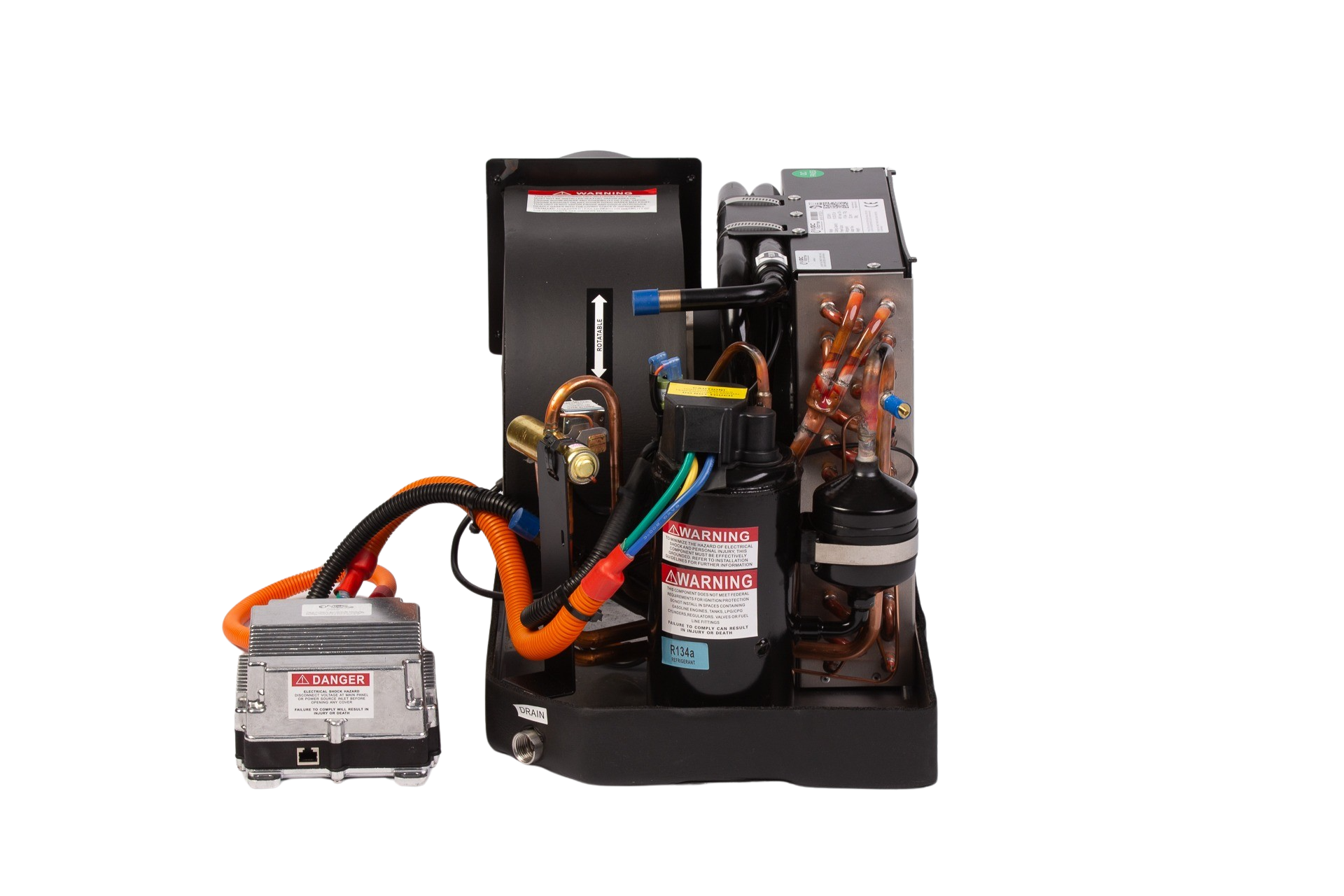

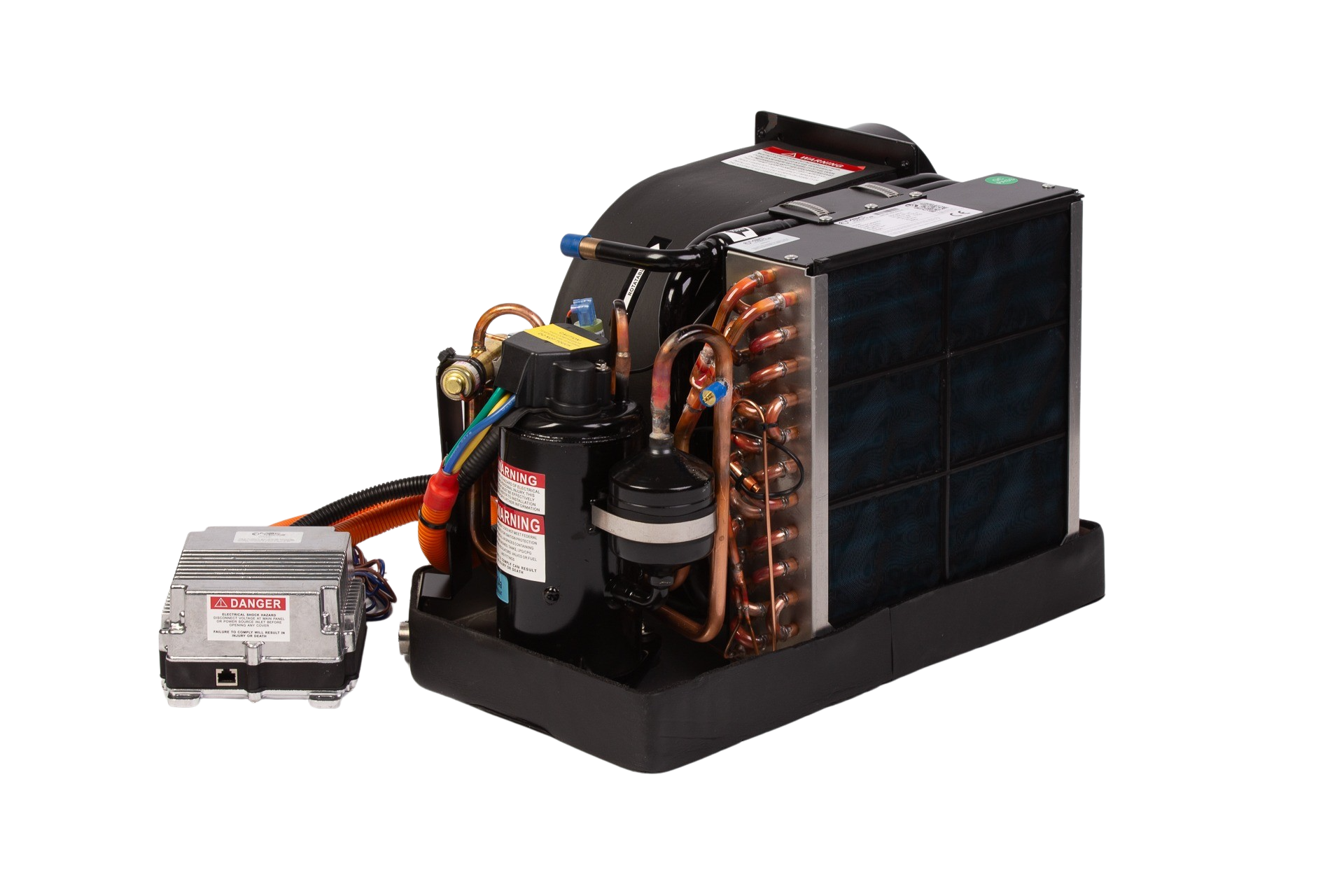

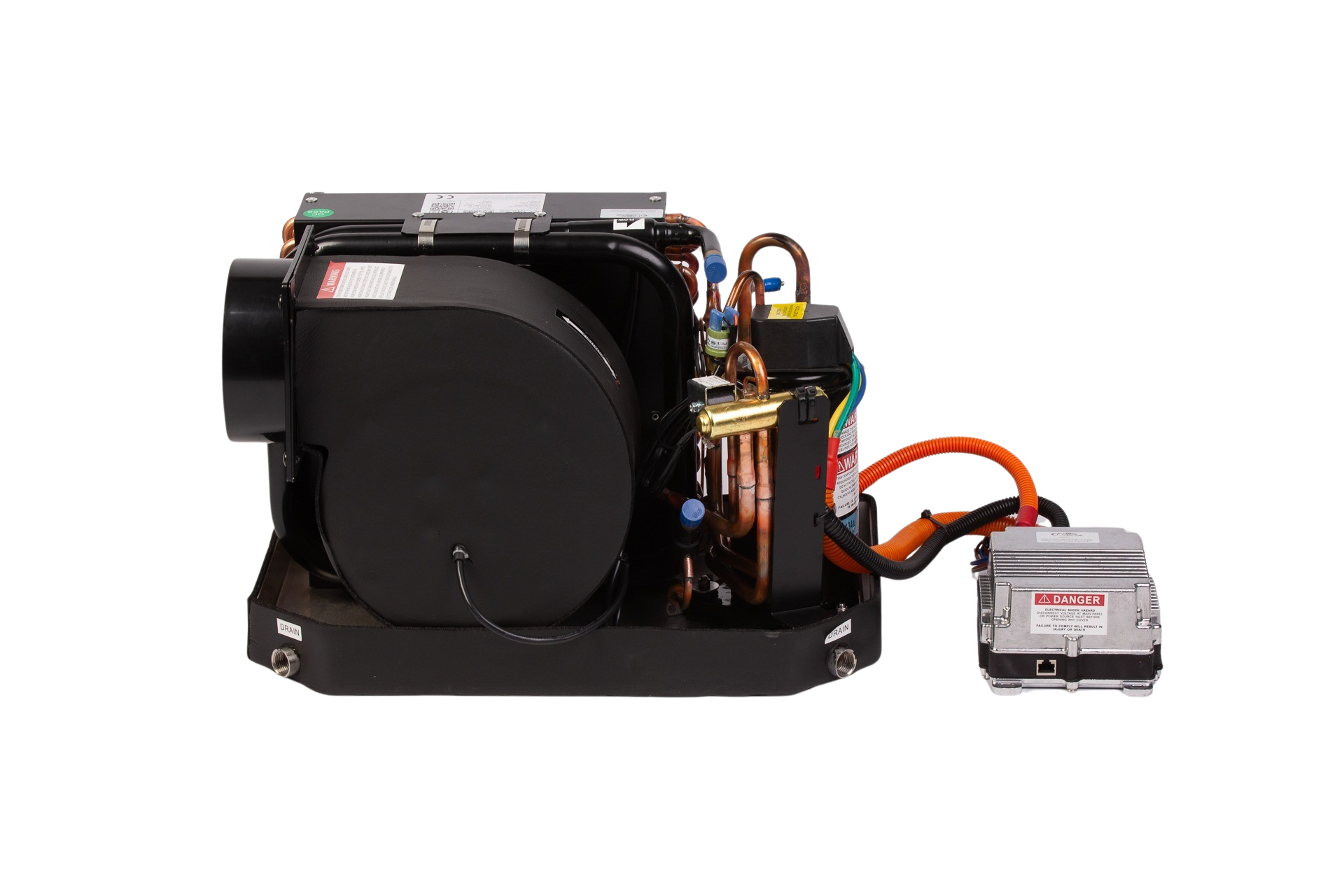

Featuring a compact self-contained design and a 360° rotatable blower, the unit offers flexible installation even in tight spaces. The nickel-coated Blue Fin evaporator ensures excellent heat transfer and enhanced corrosion resistance in demanding marine environments, while the washable air filter keeps your cabin air fresh and clean.
Designed for marine durability, the unit features a robust INOX stainless steel base tray that provides long-term corrosion protection and efficient condensate drainage. Each unit is factory-tested and pre-charged with eco-friendly refrigerant—ready to install and run right out of the box.
Pair it with the optional SMART Connect touchscreen controller for Wi-Fi-based remote operation and activate ECO mode to reduce power consumption by up to 40%—ideal for off-grid or battery-powered cruising.
The SDC48-16000 is optimized for high efficiency at 48V DC, making it one of the most power-conscious 16,000 BTU marine air conditioners available today.
Unit Parameters | SDC 48-16000 | ||||
|---|---|---|---|---|---|
Power Supply | Direct Current | DC48V | |||
COOLING | |||||
Capacity | BTU/h | 16000 | |||
Rated power | kW | 0.96 | |||
Rated current NORMAL mode * | A | 16-18 | |||
Rated current ECO mode * | A | 11-13 | |||
HEATING | |||||
Capacity | BTU/h | 17000 | |||
Rated power | kW | 1.2 | |||
Rated current NORMAL mode * | A | 23-25 | |||
Rated current ECO mode * | A | 15-17 | |||
Seawater flow | m3/h | 1.2 | |||
Air flow | m3/h | 600 | |||
Dehumidification | L/h | 1.8 | |||
Noise level | dB(A) | 55 | |||
Width | mm | 500 | |||
Height | mm | 330 | |||
Depth | mm | 315 | |||
Weight | kg | 24 | |||
Refrigerant type | R134A | ||||
Air duct Diameter | mm | 150 | |||
Sea water pipe Diameter | mm | 16 | |||
* Note: DC power consumption varies with seawater temp, humidity, power quality, wiring, and ventilation. Rated values assume normal conditions.
Professional installation is the key to efficient and safe operation of the equipment so please read the following installation and operating instructions carefully before installing the unit.
