Capacity (BTU/h): 16 000 BTU/h
| Voltage / Frequency 230V / 50-60Hz |
Operation Mode Cooling / Heating |
| Warranty 2-year |
Evaporator Material CuNi (Copper Nickel) |
| Basic package includes: | LED Display 5m Network cable Insulation tape |
| Unit dimension: H x W x D | 338x500x315 cm |
| Package dimension: H x W x D | 410x710x470 cm |
| Unit weight: | 34.2 kg |
Categories : AC UNITS, VSC units
SKU : N/A
Experience the Next Level of Marine Comfort with MBC Marine VSC Inverter Units!

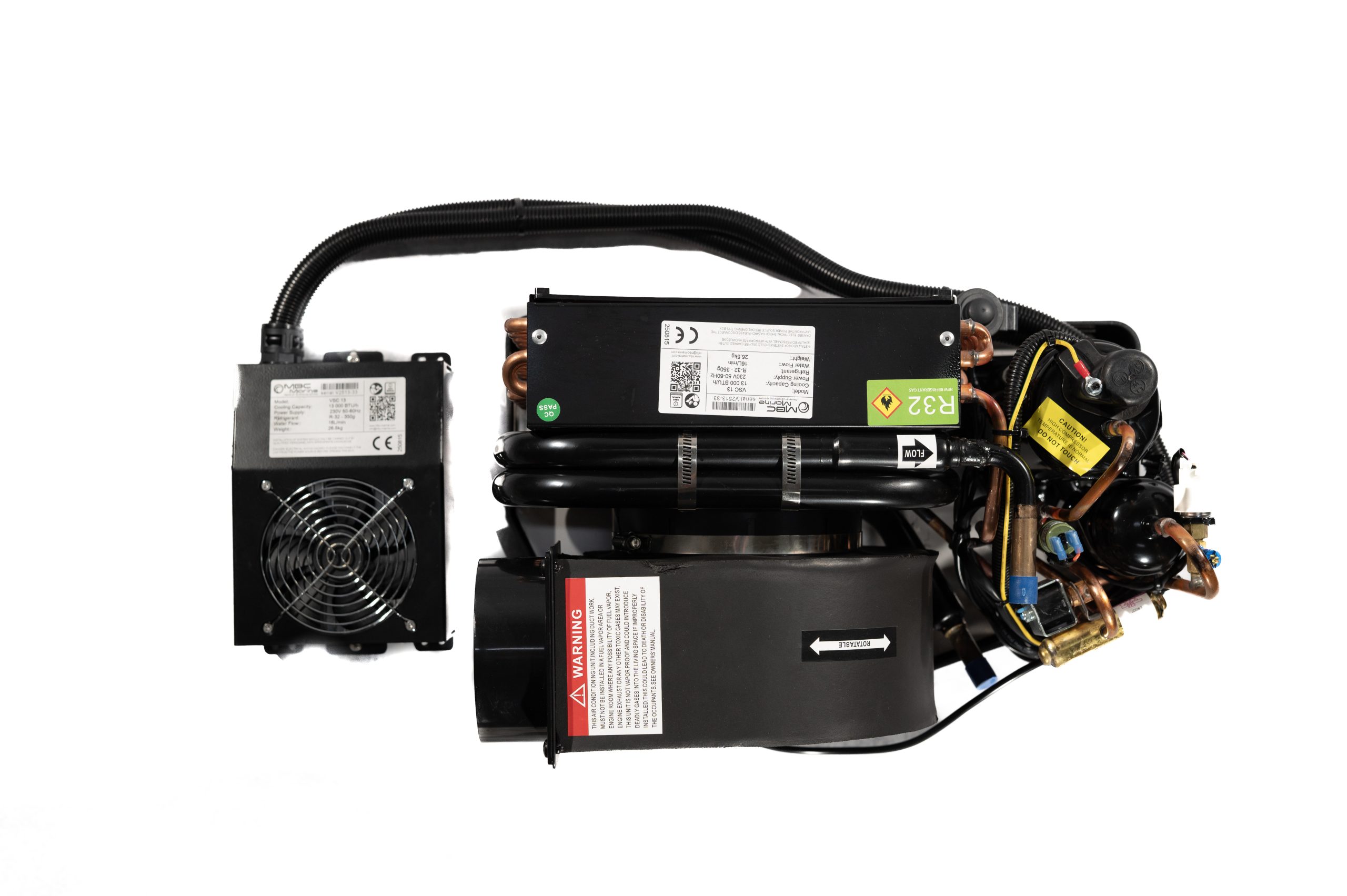

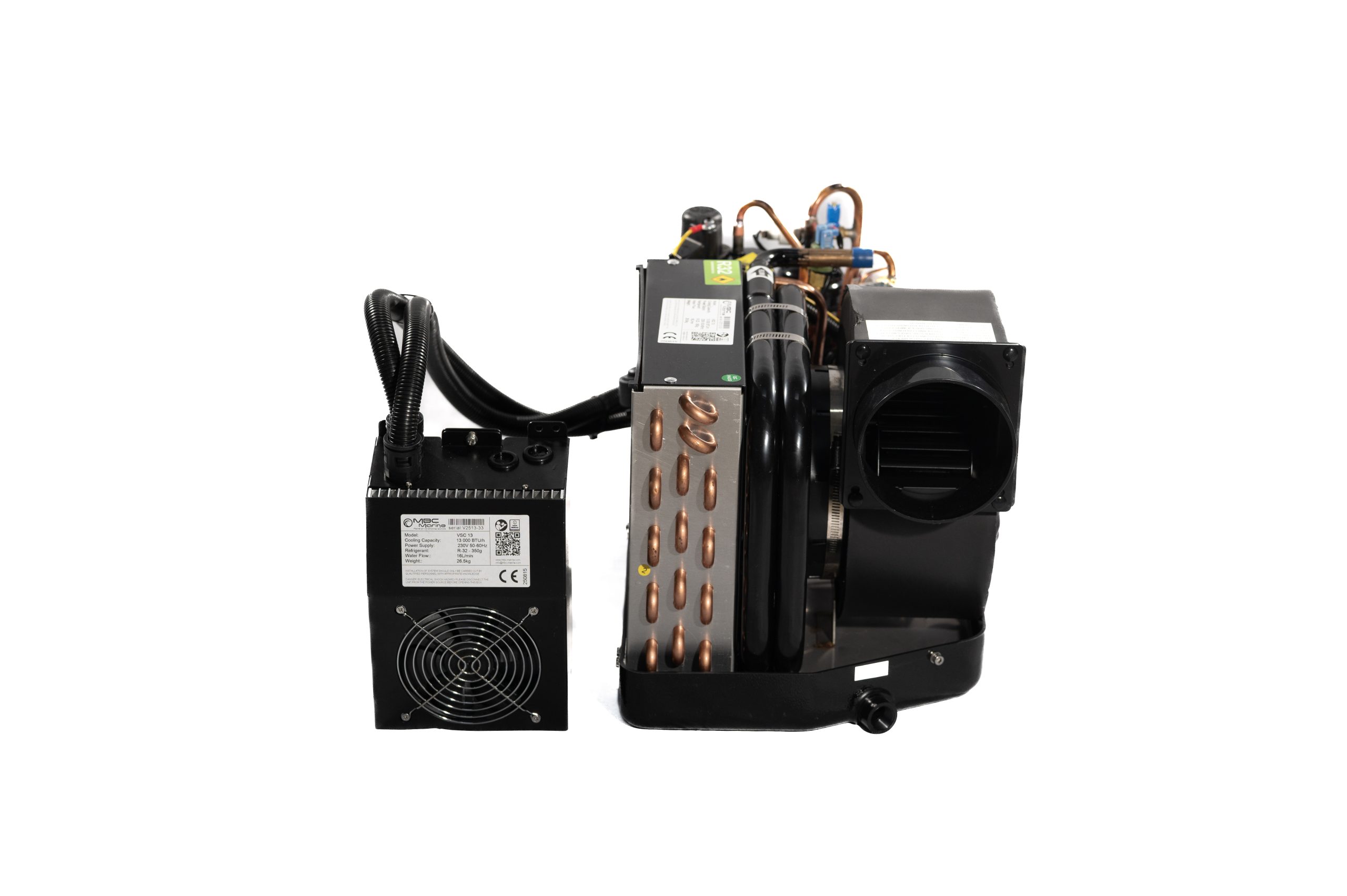

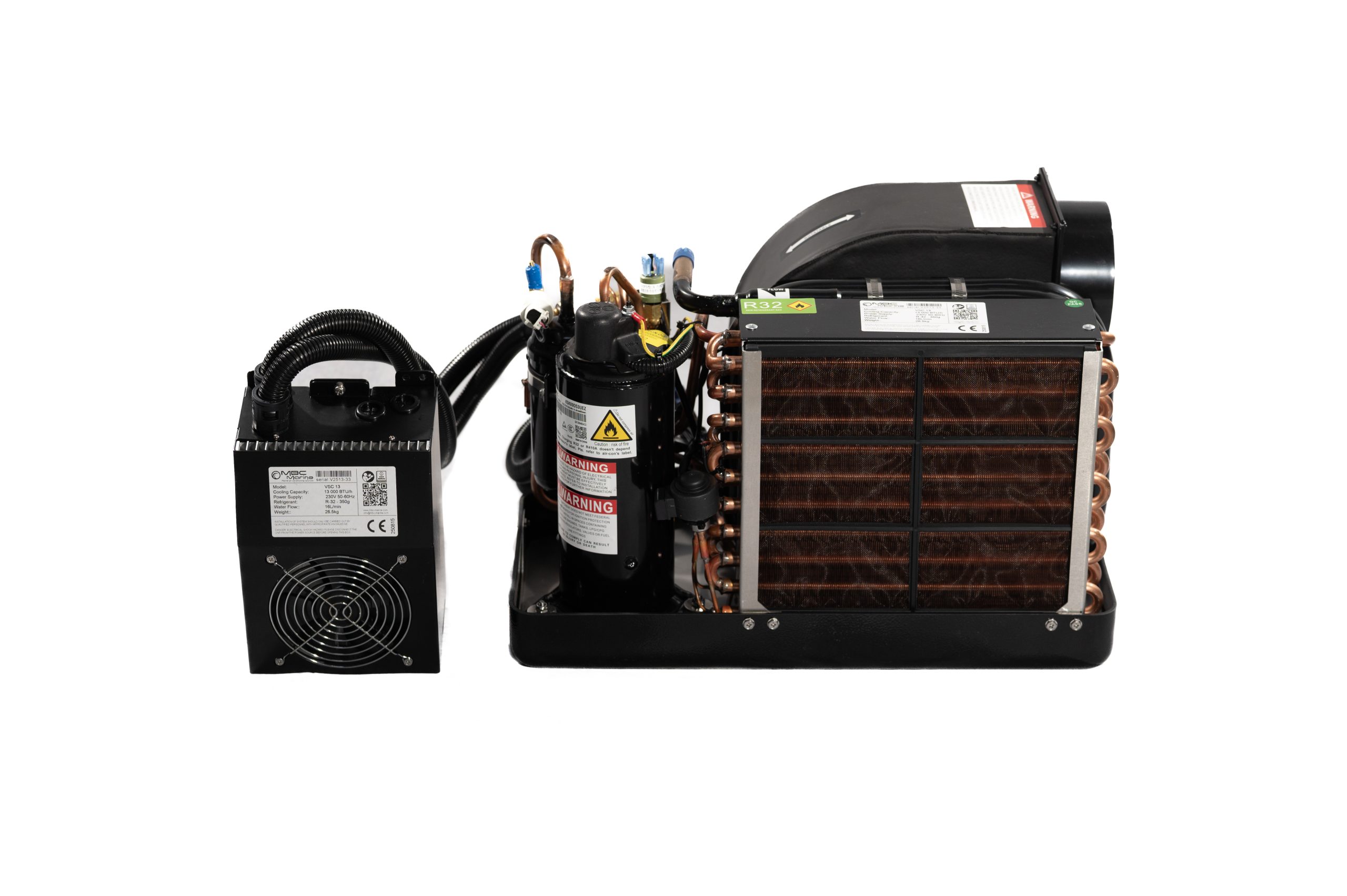

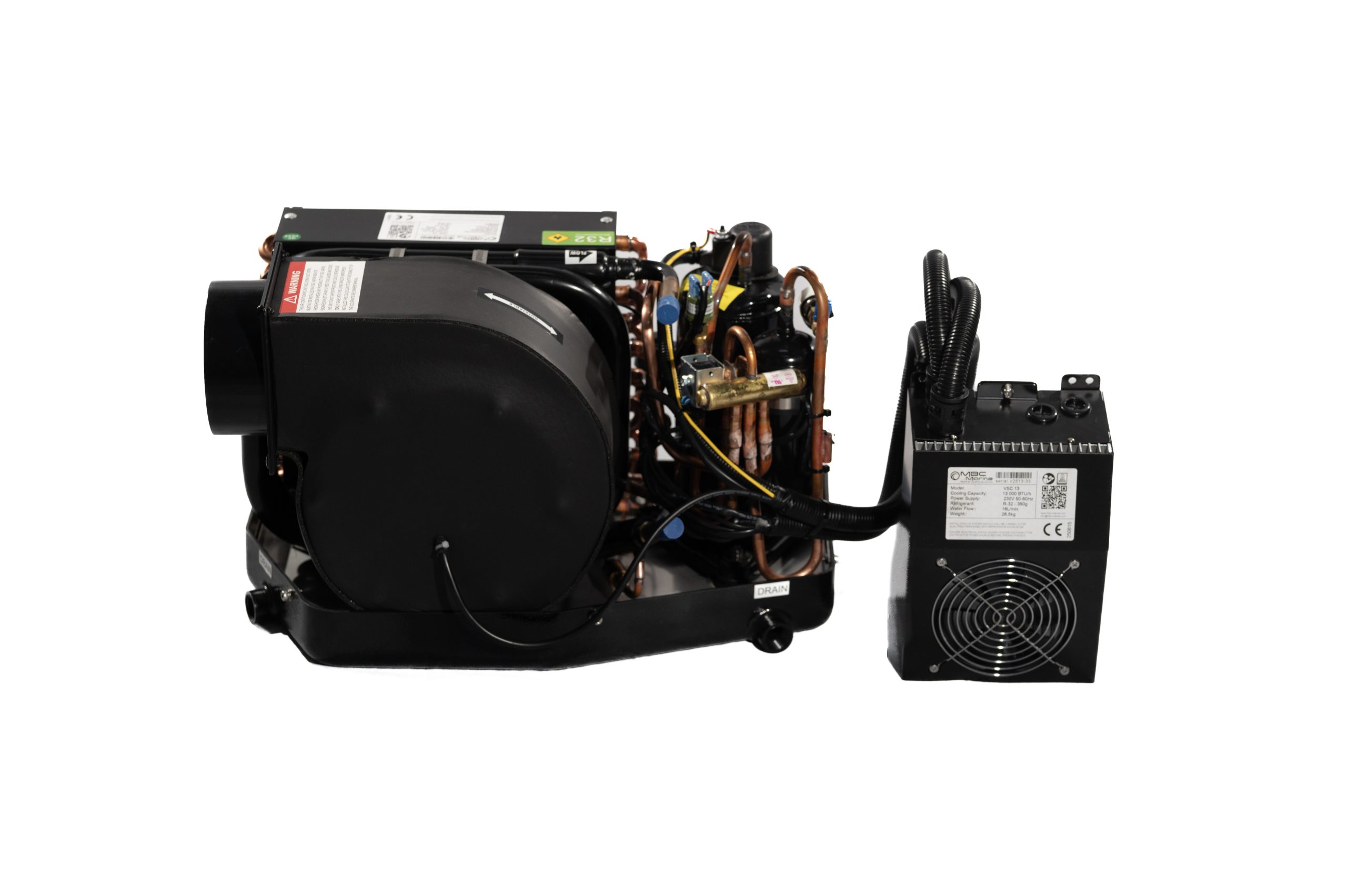

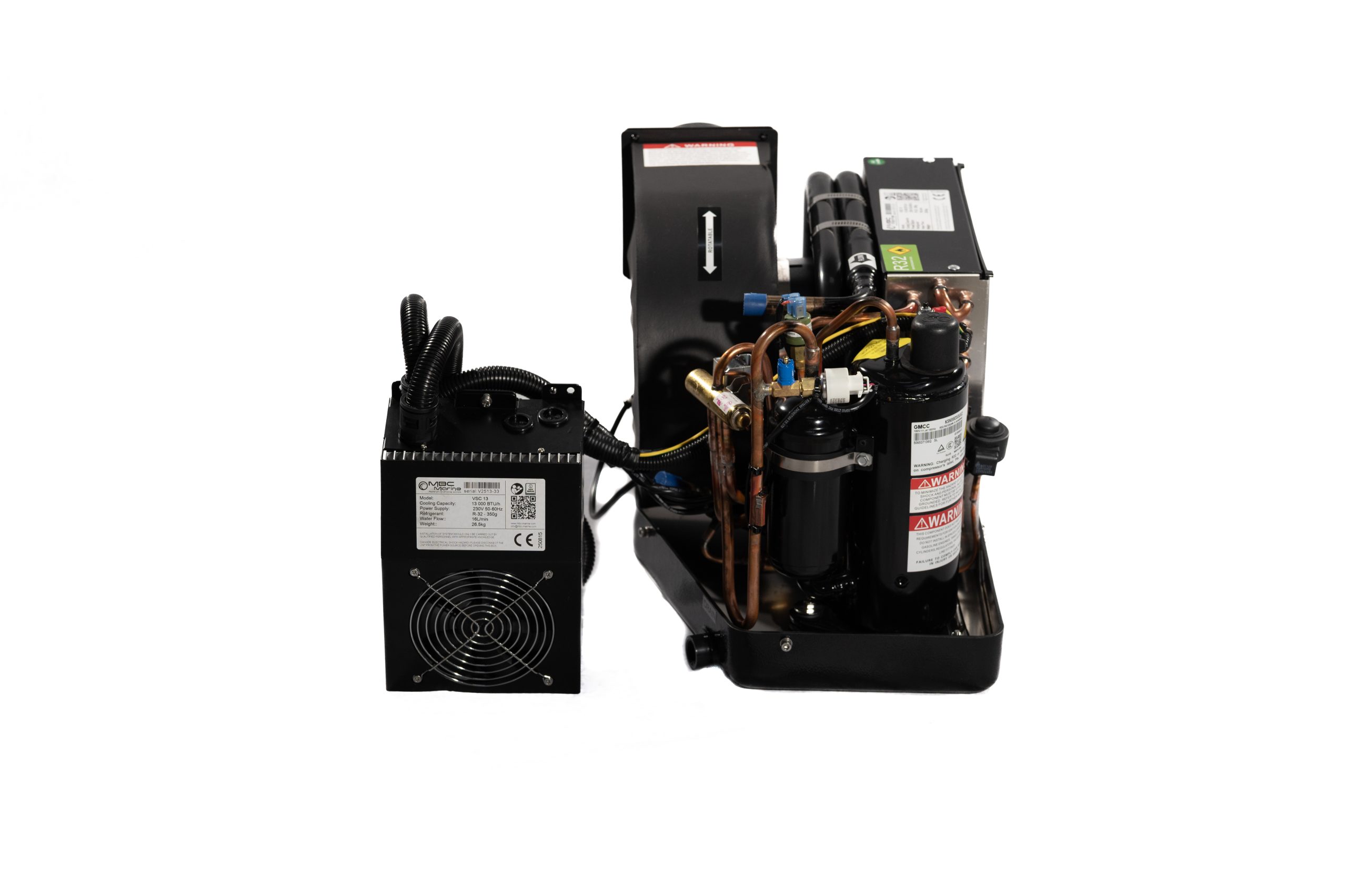

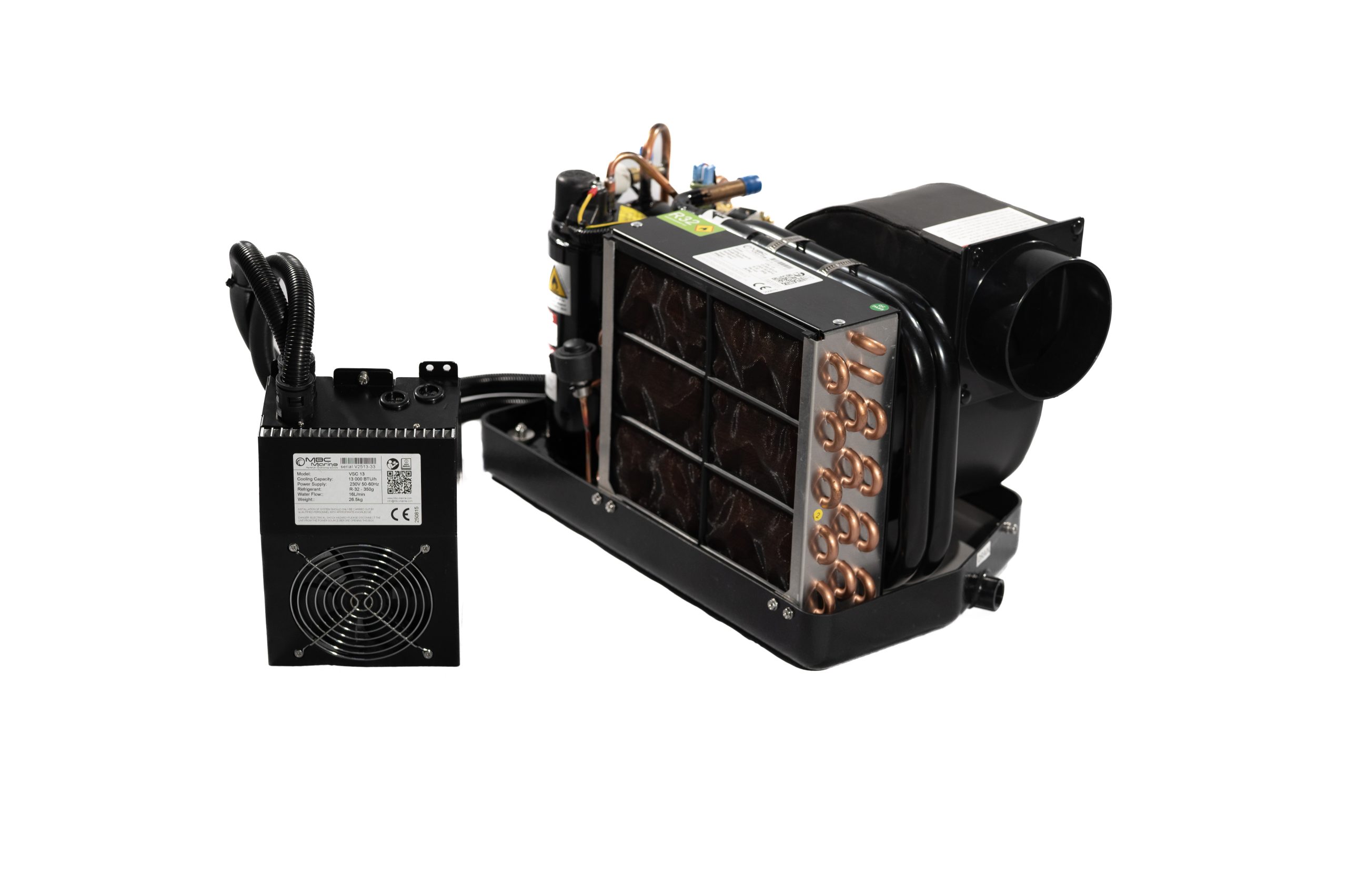

The MBC Marine VSC 16,000 BTU inverter self-contained air conditioning unit is the ideal solution for medium-sized boats or yachts with two to three cabins. Combining powerful cooling and efficient heating, this compact marine AC delivers whisper-quiet performance and ultra-low power consumption. Its advanced inverter technology continuously adjusts compressor and fan speed, ensuring stable comfort and significant energy savings on board. Designed for harsh marine environments, the VSC 16,000 features Copper Fin-coated evaporators for superior corrosion protection and a durable ABS condensation tray for reliable, leak-free operation.
Perfect for sailboats, motorboats, and mid-size yachts, it provides premium climate control in one efficient, space-saving package.
Unit Parameters | VSC 16 | ||||||
|---|---|---|---|---|---|---|---|
Cooling capacity | Btu/h | 16000 | |||||
Heating capacity | Btu/h | 17600 | |||||
Power source | 230V/50Hz | ||||||
Input power (kW) | Cooling | 1.17 | |||||
Heating | 1.56 | ||||||
Amp Draw (A) | Cooling | 1,32 – 3,03 | |||||
Heating | 1,52 – 3,48 | ||||||
Air Flow (m3/h) | High | 730 | |||||
Middle |
610 | ||||||
Low | 520 | ||||||
Refrigerant | R32 | ||||||
Dimension | Height | 338 | |||||
Width | 500 | ||||||
Depth | 315 | ||||||
Minimum air Duct Size (mm) | 150 | ||||||
Minimum Return Air Grille Size (cm2) | 510 | ||||||
Minimum Supply Air Grille Size (cm2) | 1030 | ||||||
Drain Connection Size | DN20 | ||||||
Sea water pipe | 5/8″ | ||||||
Net Weight (kg) | 29.5 | ||||||
1 Scoop type Thru-Hull
2 Ball Valve
3 Sea Water Strainer
4 Sea Water Pump
5 A/C Unit
6 Return Air Grille
7 Flexible duct
8 Duct Ring
9 Trasistion Box
10 Supply Air Grille
11 Control Box
12 Starting Booster Outlet
13 Sea Water Outlet
14 Drain Outlet
Professional installation is the key to efficient and safe operation of the equipment so please read the following installation and operating instructions carefully before installing the unit.
