Capacity (BTU/h): 16 000 BTU/h
| Voltage / Frequency 230V / 50-60Hz |
Electrical Heater No Electrical option |
| Warranty 2-year |
Evaporator Material Blue-Fin Coating |
| Basic package includes: | LED Display, FCU Controller, 5m Network cable, Mounting brackets, Insulation tape |

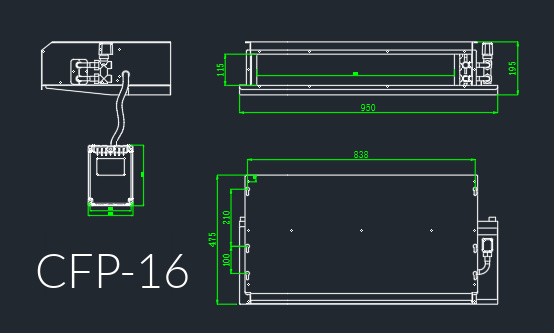

| Unit Dimensions (cm) W x H x D |
950x195x475 |
| Air Flow: | 800 m3/h |
| Package Dimensions (cm) W x H x D |
1050x320x550 |
| UNIT Weight (kg) | 19kg |
| Shipping Weight (kg) | 22,1kg |
Categories : AC UNITS, Horizontal fan coil
SKU : N/A
The MBC Marine 16,000 BTU horizontal fan coil unit delivers powerful yet whisper-quiet climate control for larger cabins and saloons on boats, yachts, and catamarans.
Engineered for chiller systems, it comes equipped with an FCU controller, digital display, and an integrated flow control valve for precise temperature regulation and energy-efficient performance.
Built with an AISI 316 stainless steel condensate tray and a corrosion-resistant housing, the 16K horizontal unit is designed to endure harsh marine conditions. Its ultra-low-profile horizontal design makes it the perfect solution for installations under ceilings or in floor-level compartments where space is limited.
Ideal for both new builds and retrofit projects, the MBC Marine 16K horizontal fan coil unit ensures year-round onboard comfort with silent operation and minimal maintenance.
Unit Parameters | CFP16 | ||||||
|---|---|---|---|---|---|---|---|
Cooling capacity | Btu/h | 16000 | |||||
Power source | 230V/50-60Hz | ||||||
Operating Current | A | 0,9 A | |||||
Input power | W | 200 W | |||||
Drain Water Connection size | DN20 | ||||||
Chilled Water Flow | L/min | 16,5 L/min | |||||
Chilled Water Connection Size | 3/4” | ||||||
Width | 530 | ||||||
Dimension of Unit | Height |
370 | |||||
Depth |
330 | ||||||
Net Weight (kg) | 14,9 kg | ||||||
