Capacity (BTU/h): 8 000 BTU/h
| Voltage / Frequency 230V / 50-60Hz |
Operation Mode Cooling / Heating |
| Warranty 2-year |
Evaporator Material CuNi (Copper Nickel) |
| Basic package includes: | SMART Display, 5m Network cable, Mounting brackets, Insulation tape |
| Possible optionals: | Soft Starter |
| Unit Dimensions (cm) H x W x D |
320x420x255 |
| Package Dimensions (cm) H x W x D |
520x400x380 |
| UNIT Weight (kg) | 20kg |
| Shipping Weight (kg) | 24kg |
Categories : AC UNITS, ESC units
SKU : N/A
Experience the Next Level of Marine Comfort with MBC Marine ESC Units!
Discover the ultimate air conditioning solution for your boat with our ESC self-contained marine air conditioning units, designed to deliver superior comfort and efficiency. Engineered to withstand the demanding conditions of marine environments, these systems feature high-performance Copper Fin Evaporators for exceptional cooling and durability. Whether you’re cooling a single cabin or an entire boat, the ESC series is the perfect choice, offering a direct expansion system with heat pump functionality, available in five sizes with cooling capacities ranging from 8,000 to 24,000 BTU.
The advanced design of the ESC units ensures maximum performance with a Copper Fin Evaporator that enhances efficiency and longevity, while the durable ABS condensation tray is corrosion-resistant, simplifying maintenance and improving reliability. The integrated heat pump technology provides both cooling and heating, making these units ideal for year-round comfort on board.
Every MBC Marine ESC unit is now equipped with the Smart Touch digital touchscreen controller, offering seamless control over your boat’s climate. The 4.3-inch Wi-Fi-enabled touchscreen allows remote access from anywhere via your smartphone. Adjusting temperature settings has never been easier, whether you’re on board or miles away.
Unit Parameters | ESC08 | |||||
|---|---|---|---|---|---|---|
Cooling Capacity | BTU/h | 8000 | ||||
Heating capacity | BTU/h | 8700 | ||||
Power source | 230V/50Hz | |||||
Amp Draw(A) | Cooling | 3.3 | ||||
Heating | 3.7 | |||||
Air flow m3/h | High | 420 | ||||
Middle | 350 | |||||
Low | 280 | |||||
Refrigerant | R32 | |||||

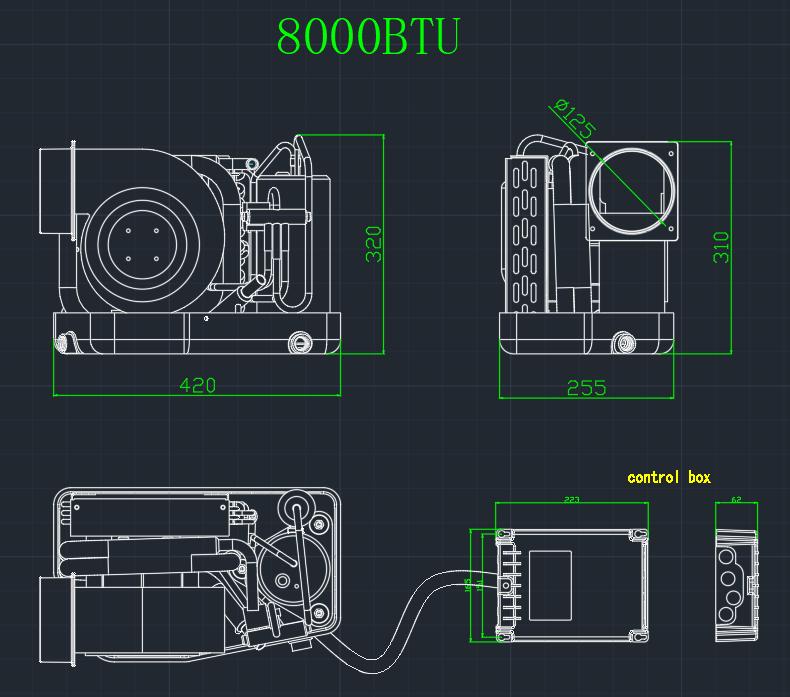

Dimension | Height | 320 | ||||
Width | 420 | |||||
Depth | 255 | |||||
Refrigerant Air Duct Size (mm) | 125 | |||||
Minimum Return Air Grille Size (cm2) | 300 | |||||
Minimum Supply Air Grille Size (cm2) | 750 | |||||
Drain Connection Size
| DN20 | |||||
Seawater pipe | 5/8″ | |||||
Net Weight (kg) | 18 |
Experience Ultimate Comfort on Your Boat with MBC Marine Smart Connect.
Ensure the perfect temperature and fresh air supply for your boat anytime, anywhere with the MBC Marine Smart Connect.
Imagine the convenience: Whether you’re at the office or waiting at a red light, you can set your boat’s air conditioning to the ideal temperature before you even step on board.
With just a few taps on your smartphone, connect to your boat’s air conditioning system via the Internet and adjust the settings to your preference—whether it’s cooling or heating mode.
Remote Control: Manage your boat’s climate from anywhere using your smartphone.
Instant Comfort: Arrive to a boat that’s already at the perfect temperature.
User-Friendly Interface: Easy setup and intuitive controls make it simple to use.
Upgrade to MBC Marine Smart Connect and enjoy unparalleled comfort and convenience on your boat.
1 Scoop type Thru-Hull
2 Ball valve
3 Sea Water Strainer
4 Sea water pump
5 A/C unit
6 Return Air Grille
7 Flexible duct
8 Duct Ring
9 Trasistion Box
10 Supply Air Grille
11 Control Box
12 Starting Booster Outlet
13 Sea Water Outlet
14 Drain Outlet
Professional installation is the key to efficient and safe operation of the equipment so please read the following installation and operating instructions carefully before installing the unit.
| Model | ESC08, ESC10, ESC13, ESC16, ESC24 |
|---|
