Capacity (BTU/h): 24 000 BTU/h
| Voltage / Frequency 230V / 50-60Hz |
Operation Mode Cooling / Heating |
| Warranty 2-year |
| Basic package includes: | LED Display, 5m Network cable |
| Unit Dimensions (cm) H x W x D |
300x465x480 |
| Package Dimensions (cm) H x W x D |
410x710x470 |
| UNIT Weight (kg) | 35kg |
| Shipping Weight (kg) | 39Kg |
Categories : AC UNITS, Chiller units, Inverter Chiller Systems - 230V 1 Ph
SKU : N/A

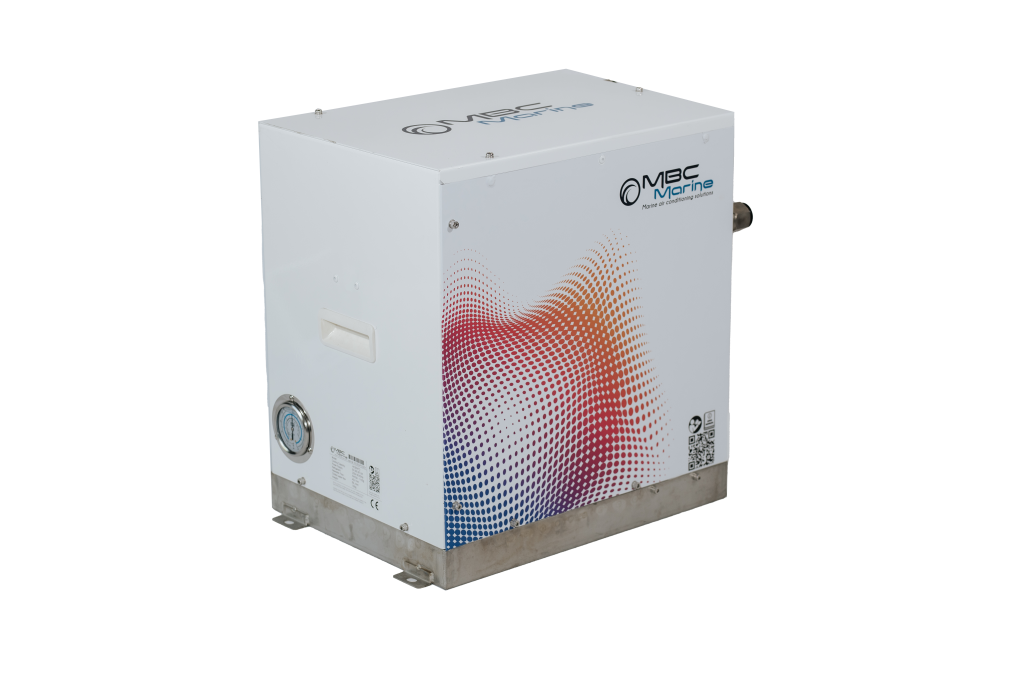

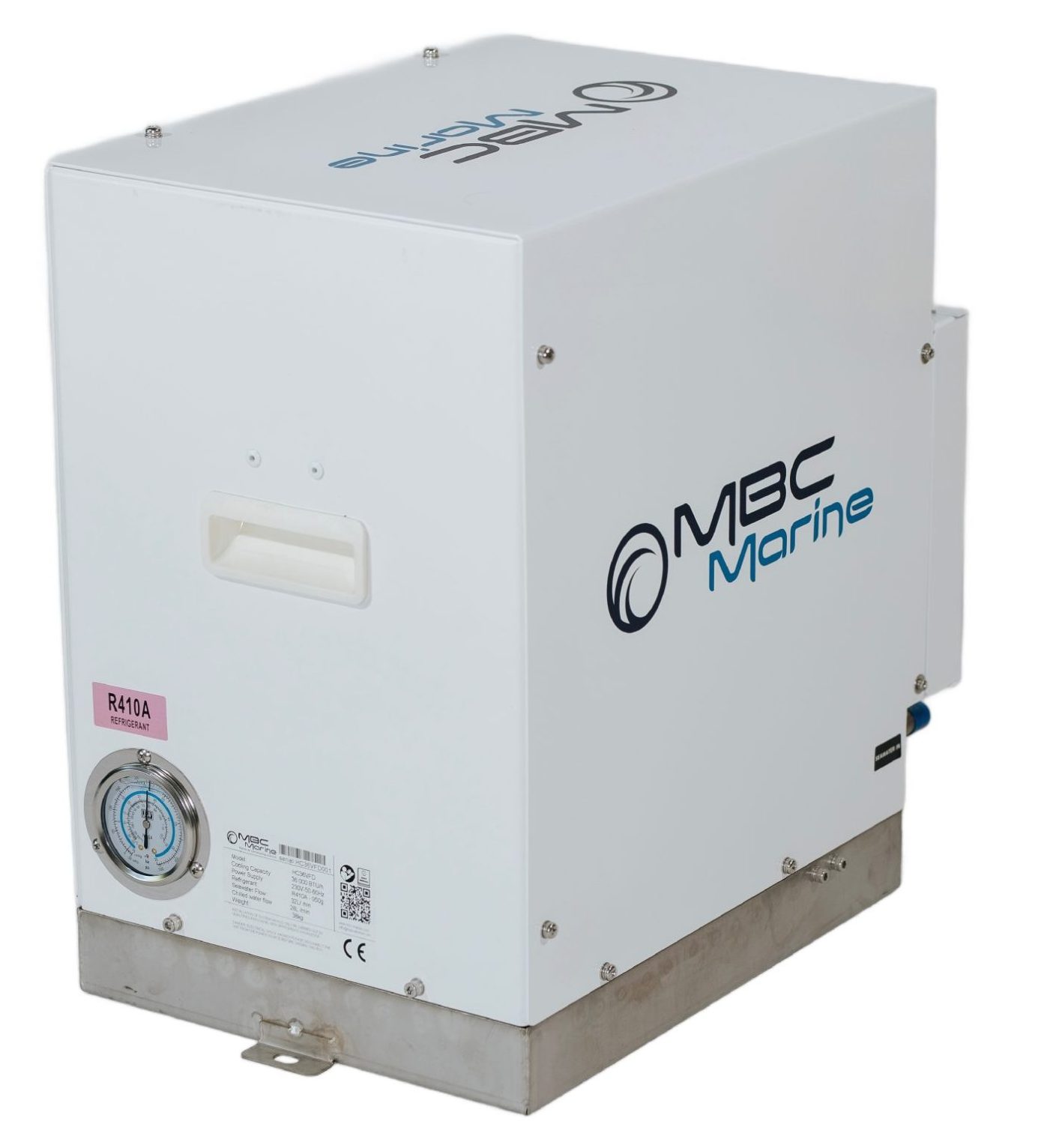

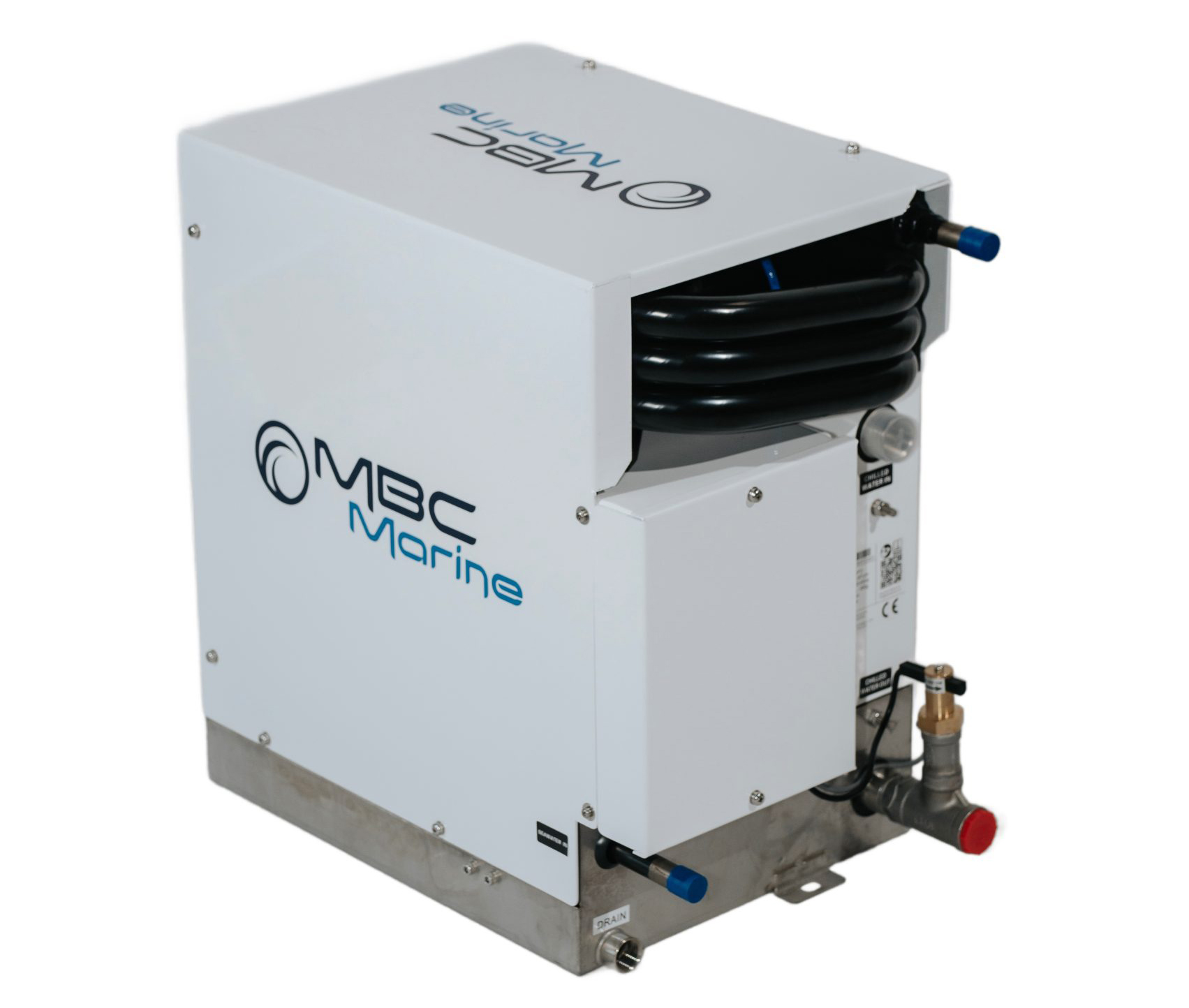

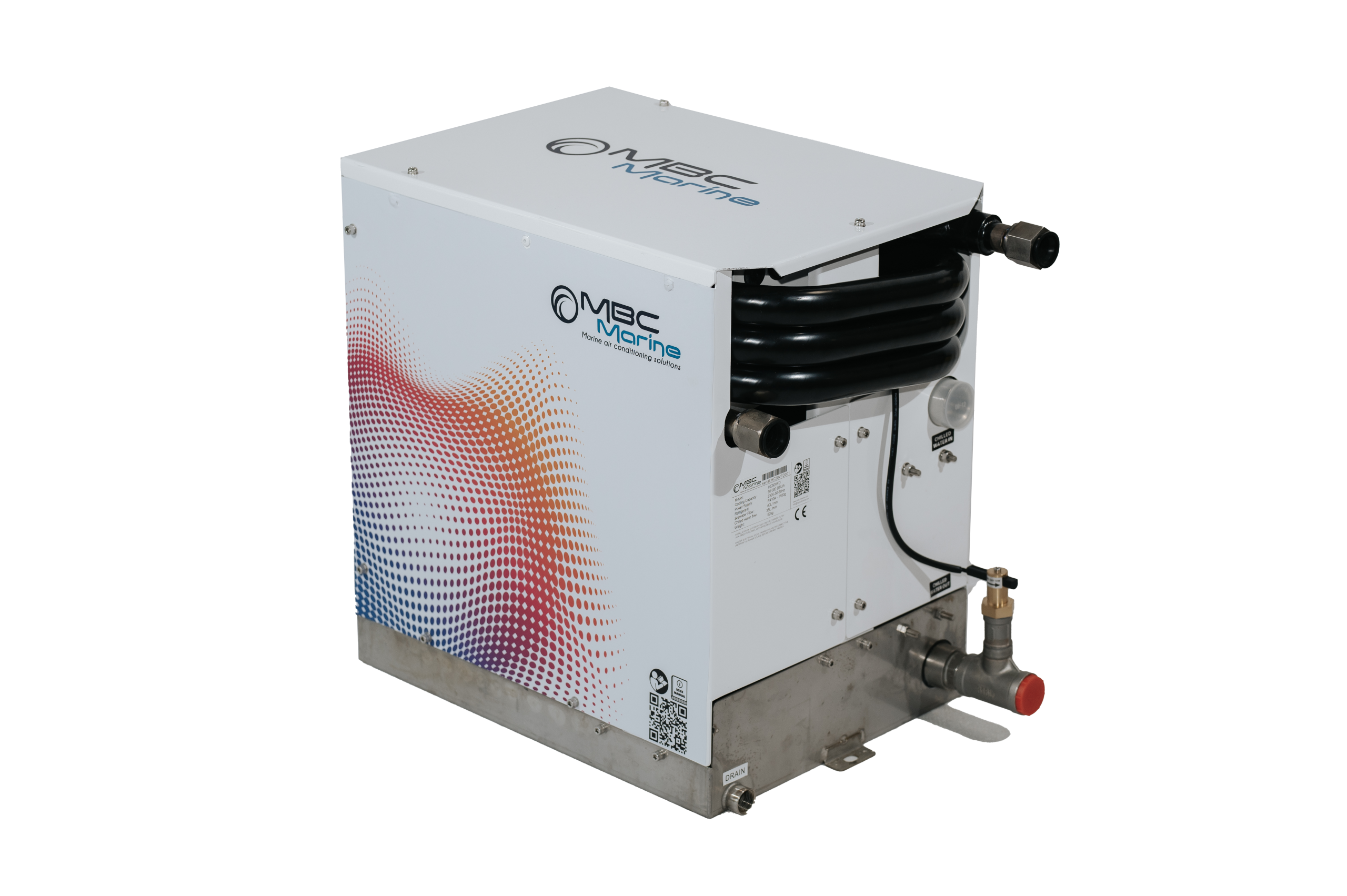

MBC Marine Chiller – Premium Marine Climate Control (24,000 BTU | 230V | 1 Phase)
The MBC Marine Chiller is a compact, energy-efficient climate control system built to perform reliably in demanding marine environments. Featuring variable capacity technology and intelligent control, it delivers precise cooling while optimizing power consumption.
Titanium heat exchangers ensure corrosion resistance and long-term durability, while the powder-coated housing adds protection against harsh conditions. Pre-charged and space-saving, the unit is easy to install and requires minimal maintenance. Integrated diagnostics continuously monitor system performance and provide alerts to prevent downtime.
This 24,000 BTU, 230V single-phase unit is ideal for small to mid-sized vessels, offering powerful cooling in a streamlined package.
Variable capacity marine chillers mark a new era in onboard HVAC technology. By automatically adjusting output to match demand, they provide exceptional efficiency, comfort, and reliability. Though the initial investment is higher, the long-term savings, reduced maintenance, and enhanced onboard comfort make them a smart and future-ready choice.
Unit Parameters | HC24VFD | ||||||
|---|---|---|---|---|---|---|---|
Cooling capacity | Btu/h | 24000 | |||||
Power source | 230V/50-60Hz | ||||||
Amp Draw (A) | Cooling | 6 A | |||||
Heating | 8 A | ||||||
Sea Water Flow | L/min | 25 L/min | |||||
Sea Water Connection size | IN | 16mm | |||||
Sea Water Connection size | OUT | 16mm | |||||
Chilled Water Connection Flow | L/min | 21 L/min | |||||
Chilled Water Connection Size | IN | 3/4” | |||||
Width | 300 | ||||||
Dimension of Unit | Height | 465 | |||||
Depth | 480 | ||||||
Net Weight (kg) | 35kg | ||||||
Professional installation is the key to efficient and safe operation of the equipment so please read the following installation and operating instructions carefully before installing the unit.
| Model | HC24VFD, HC36VFD, HC50VFD, HC64VFD, HC80VFD |
|---|
